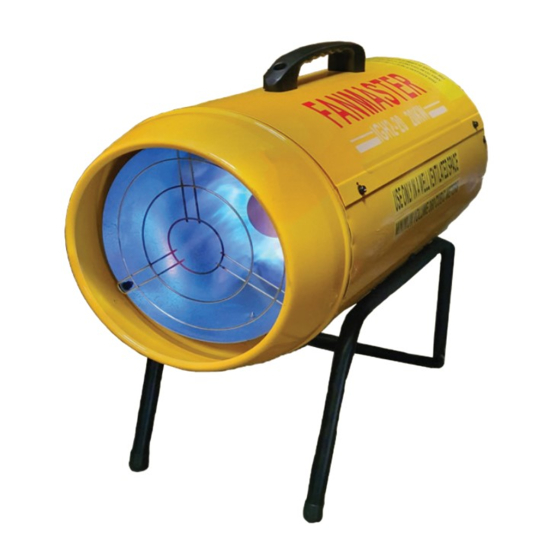

Fanmaster IGH2-20 Instruction Manual

Industrial lpg fan heater (direct-fired)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FA NM A ST E R
cooling heating ventilation extraction
INSTRUCTION MANUAL
INDUSTRIAL LPG FAN HEATER (DIRECT-FIRED)
MODEL: IGH2-20
FOR INDUSTRIAL USE ONLY
ADEQUATE VENTILATION REQUIRED
GMK10715
TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS &
INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGH2-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Fanmaster IGH2-20

Summary of Contents for Fanmaster IGH2-20

  • Page 1 FA NM A ST E R cooling heating ventilation extraction INSTRUCTION MANUAL INDUSTRIAL LPG FAN HEATER (DIRECT-FIRED) MODEL: IGH2-20 FOR INDUSTRIAL USE ONLY ADEQUATE VENTILATION REQUIRED GMK10715 TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS & INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS...

  • Page 2: For Your Information

    FOR YOUR INFORMATION Thank you for purchasing a Fanmaster LPG Fan heater. Please read this instruction manual carefully before using this heater. Disclaimer: Fanmaster reserves the right to make alterations to specifications, quantities, dimensions, for production or other reasons, subsequent to publication.
  • Page 3 1. GENERAL SAFETY RULES & WARNINGS • PLEASE READ INSTRUCTIONS CAREFULLY. • PLACE INSTRUCTION MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. DO NOT ALLOW ANYONE WHO HAS NOT READ THESE INSTRUCTIONS TO ASSEMBLE, ADJUST OR OPERATE THIS HEATER. • IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT IN CAUSING PROPERTY DAMAGE, SERIOUS INJURY OR LOSS OF LIFE.
  • Page 4 1. GENERAL SAFETY RULES & WARNINGS Heater Use and Care DO NOT move the heater when it is in operation or when plugged into the main supply. Only move heater once it has cooled down and it has been unplugged. a) Use the correct heater for your application.
  • Page 5 If the supply cord is damaged, it must be replaced by Fanmaster, its service agent or similarly a qualified persons in order to avoid a hazard.

  • Page 6: Product Description And Specifications

    2. PRODUCT DESCRIPTION & SPECIFICATIONS PRODUCT DESCRIPTION Industrial LPG direct-fired portable space/fan heater with open combustion chamber. SPECIFICATIONS MODEL IGH2-20 20KW Heat Output 68,240 BTU 70 Mj/hr Air Flow (L/s) Gas Type ULPG Fuel Consumption (kg/h) 1.40 Voltage (V/Hz) AC 220-240V/50...

  • Page 7: Getting To Know Your Heater

    3. GETTING TO KNOW YOUR HEATER Remove the heater from the carton. If the heater is damaged, please contact Fanmaster or where you purchased the heater from. The packaging materials (plastic bags, polystyrene, etc) must be disposed of in an appropriate manner.
  • Page 8 4. FUEL GASES & VENTILATION FUEL GASES GUIDELINES OF FUEL GASES: This heater is intended for the use of temporary heating of buildings under construction, alteration or repairing. There may also be other local standards or regulations governing the use of fuel gases and heating products of which you can get advice from your relevant local authority.
  • Page 9 5. OPERATING INSTRUCTIONS PREPARING FOR OPERATION : Check the heater thoroughly for damage. Do not use a damaged heater. Be sure the heating area is adequately ventilated, free of moisture and dust, far away from any combustible material. Always put the gas cyclinder behind the heater in a stable position.
  • Page 10 5. OPERATING INSTRUCTIONS START • Connect the plug to the relevant power source • Press ON/OFF swtich (A) to ON. Let the motor fan run at least 30 seconds to check if the fan work properly and/or to purge any fuel gas left from the last use.
  • Page 11 5. OPERATING INSTRUCTIONS WARNING Be sure that the valve on the gas cylinder has been shut off firmly before disconnection. Disconnect cylinder from heater before moving heater. Changing the cylinder, be sure the atmosphere is flame free. Should there be any gas leakage during operation, close the gas cylinder valve immediately.

  • Page 12: Cleaning, Maintenance And Storage

    If the replacement of the supply cord is necessary, this has to be done by Fanmaster or agent or qualified persons as authorised by Fanmaster in order to avoid a safety hazard.

  • Page 13: Troubleshooting

    7. TROUBLESHOOTING PROBLEM CAUSE SOLUTION 1. No electricity 1. Check power supply. Fan doesn’t work 2. Blade stalled by housing 2. Repair/replace housing 1. Ignition cable damaged 1. Only by a qualified person Piezo (ignitor) will 2. Ignition cable disconnected 2.

  • Page 14: Parts Breakdown

    8. PARTS BREAKDOWN...

  • Page 15: Warranty

    To make a claim under the warranty, take the product (with proof of purchase) to the store where you purchased the product or go to https://www.fanmaster.com.au/warranty-claims-returns. This warranty is given by Fanmaster Pty Ltd ABN: 45 353 934 457 Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232 P: 1300 900 345 E: warranties@fanmaster.com.au...
  • Page 16 FA NM A ST E R cooling heating ventilation extraction Fanmaster Pty Ltd | 1/6-8 Yalgar Road, KIRRAWEE NSW 2232 1300 900 345 | sales@fanmaster.com.au | www.fanmaster.com.au GMK10715 MADE IN CHINA...
