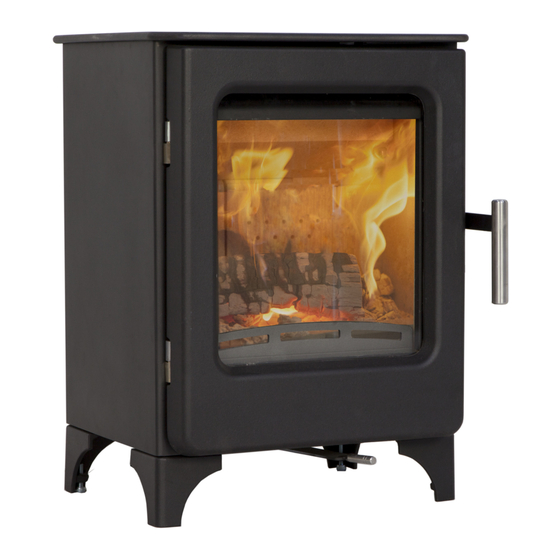

Mendip Stoves Ashcott Operation And Instruction Manual

Mendip Stoves Ashcott Operation And Instruction Manual

Balanced flue gas stoves

Advertisement

Quick Links

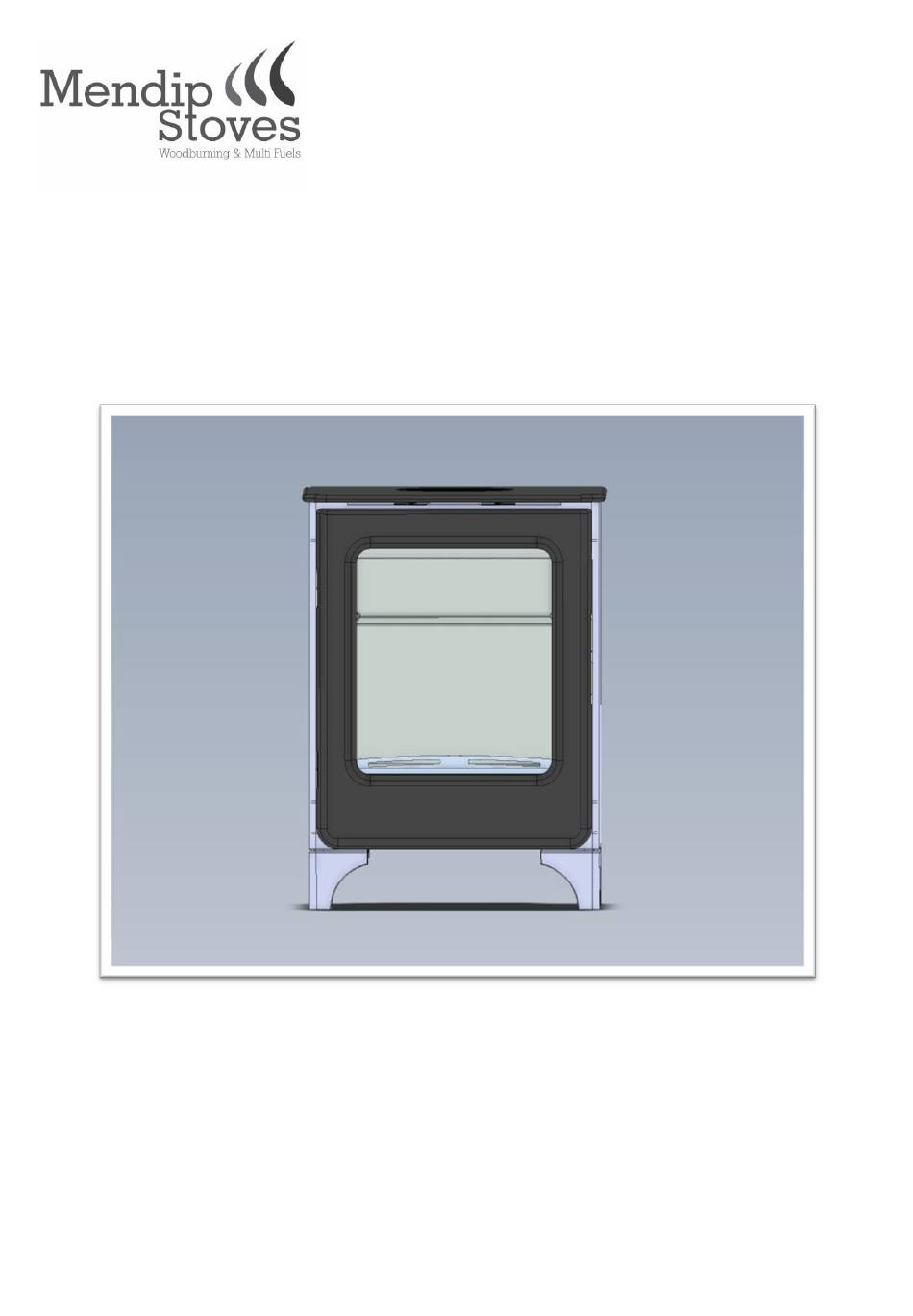

OPERATION AND INSTRUCTION MANUAL
Balanced Flue Gas Stoves
Ashcott, Ashcott with logstore
Woodland, Woodland with logstore
INSTALLATION, SERVICING
AND USER INSTRUCTIONS
For use in GB & IE (United Kingdom and Ireland)
This appliance has been tested and certified for other counties (see technical data).
However to install appliance in other countries, modification of the appliance and its
method of installation may be necessary in order to use the appliance safely and
correctly. The manual for the local language must be obtained. Contact Mendip for
further information.
Document No. : M10580-49-00-99-00 – Iss: V1.5c May 2021
File: User_Ashcott_BF.doc
1 of 40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ashcott and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mendip Stoves Ashcott

  • Page 1 OPERATION AND INSTRUCTION MANUAL Balanced Flue Gas Stoves Ashcott, Ashcott with logstore Woodland, Woodland with logstore INSTALLATION, SERVICING AND USER INSTRUCTIONS For use in GB & IE (United Kingdom and Ireland) This appliance has been tested and certified for other counties (see technical data).
  • Page 2 5 years against manufacturing defects if your stove is purchased through a registered Mendip Stoves retailer and installed by a qualified GAS SAFE installer. The 5 year extended warranty will only apply if we have received the completed registration card within 1 calendar month of the purchase of your appliance.
  • Page 3: Table Of Contents

    GB & IE Content 1. General Notes 2. User instructions. 2.1 Emergency Gas Isola�on 2.2 First Time of Operation 2.3 Control Overview 2.3.1 Basic Manual Control 2.3.2 Remote Control 2.4 Manual Turn OFF 2.5 Cleaning and Maintenance 3. Installa�on instruc�ons. 3.1 Gas Connection 3.2 Ven�lation 3.3 Appliance Fireplace Installation...
  • Page 4 In your own interest, and those of safety, and in accordance with the Gas Safety (Installa�on and Use) Regula�ons, Mendip stoves must be installed by a suitably qualified GasSafe technician using the appropriate fi�ngs for the gas type being used, and the stove must not be modified in anyway. The gas technician will be responsible for the installa�on conforming to all current regula�ons and standards,...
  • Page 5: General Notes

    GB & IE 1. General Notes This Mendip gas appliance is a High Efficiency, Balanced Flue Live Fuel Effect appliance. It provides radiant and convected heat using the latest burner technology. As well as having a variable heat output, these fires also utilise a special control system that allows the appliance to use two burners for high output or a single burner for lower outputs.
  • Page 6: User Instructions

    GB & IE 2. User instruc�ons. 2.1 Emergency Gas Isola�on In the event of a gas leak or if gas is smelt, the appliance must be isolated. This is done by turning OFF the gas at the Isola�on Tap. This Isola�on Tap will be close to the stove so familiarise yourself with its posi�on.
  • Page 7: Remote Control

    GB & IE 2.3.2 Remote Control Radio Frequency Handset A code is selected automa�cally for all Mertik Maxitrol electronics from among 65,000 random codes available. The receiver has to learn the code of the handset: ▪ Press and hold the receiver’s reset bu�on (see figure 22) un�l you hear two (2) beeps.
  • Page 8 GB & IE 8 of 40...
  • Page 9 GB & IE 9 of 40...
  • Page 10 GB & IE 10 of 40...
  • Page 11 GB & IE 11 of 40...
  • Page 12: Manual Turn Off

    OFF (marked “0”). The picture below shows the control valve. Not fitted on Ashcott Woodland Model The control valve is located behind the control hatch in the Base of the appliance.
  • Page 13: Installa�On Instruc�Ons

    GB & IE 3. Installation instructions. Before commencing Installation, confirm that the details on the appliance data plate correspond to the local distribution conditions, gas type and pressure to which the appliance is to be installed. Ensure that gas supply and supply pipe is capable of delivering the required volume and pressure of gas and is in accordance with the rules in force.
  • Page 14: Flue Connec�On

    GB & IE 3.4 Flue Connection 3.4.1 General notes This appliance may be installed with a roof terminal (C31) or a wall terminal (C11). This appliance may only be used with Balanced Flue (otherwise known as Concentric Flue) parts as specified by Mendip. The Mendip specified flue parts have been approved with the appliance. If the appliance is installed on non-Mendip approved parts, Mendip cannot guarantee or accept any responsibility for the proper and safe working of the appliance.
  • Page 15 GB & IE 3.4.5 Terminal Locations. Distance Dimension Terminal Position (mm) Directly below an opening, air brick, opening window etc. Above an opening, air brick, opening window etc. Adjacent to an opening, air brick, opening window etc. Below gutters, soil pipes or drain pipes Below eaves Below balconies of car port roof From a vertical drain pipe or soil pipe...
  • Page 16 GB & IE 3.4.6 Horizontal Wall Vent Termination type C 11 Flue sizing: ASHCOTT & WOODLAND : Ø100/150 Connector on Appliance. Ø100/150 Maybe used Throughout, Alternatively, Ø130/200 Expander may be used, so that Ø130/200 flue can be used thereafter. Flue Terminal: Ø130/200 Part No.
  • Page 17 GB & IE 3.4.7 Vertical Roof Vent Termination C 31 Flue sizing: ASHCOTT &WOODLAND : Ø100/150 Connector on Appliance. The stoves needs a starter adapter. Code F90000-71-94-30-00 Ø100/150 Maybe used Throughout, Alternatively, Ø130/200 Expander may be used, so that Ø130/200 flue can be used thereafter.
  • Page 18 GB & IE Fitted length 110mm 18 of 40...
  • Page 19 GB & IE 19 of 40...
  • Page 20 GB & IE 20 of 40...
  • Page 21 GB & IE When fitting the snorkel kit a physical retention method should be used to fix the stove adapter to the rear flue outlet collar. Secure starter length with a self tapping screw 21 of 40...
  • Page 22 GB & IE Vertical Roof Termination 22 of 40...
  • Page 23 GB & IE Vertical Roof Termination 23 of 40...
  • Page 24 GB & IE Vertical Roof Termination on angle 24 of 40...
  • Page 25 GB & IE Vertical Roof Termination with bends 25 of 40...
  • Page 26 GB & IE Existing Chimney (Renovation Kit). 26 of 40...
  • Page 27 GB & IE Existing Chimney with Bend (Renovation Kit). 27 of 40...
  • Page 28 GB & IE Horizontal, wall with Snorkel. Snorkel Distance “H” = 350-550mm excluding adapter. Adapter fitted length 110mm Secure starter length with a self tapping screw When fitting the snorkel kit a physical retention method should be used to fix the stove adapter to the rear flue outlet collar.
  • Page 29: Fuel Bed Arrangements

    GB & IE 3.5 Fuel Bed Arrangements. When arranging the Media into the Firebed, it is important that the Pilot area is kept clear and that no Media enters the Pilot shield. The Pilot area includes the the pilot shield and the top of the burner to the first slot. When commissioning or servicing the Appliance Cross Ligh�ng must be checked to ensure smooth ligh�ng of the main burner from the Pilot Flame and smooth ligh�ng of the effect burners from the main Burner.
  • Page 30 GB & IE Scatter the Bags of Embers over the top of the burners as shown, keeping the pilot area clear. Posi�on the 6 logs as shown. Log 1 Posi�on Log 1 Centrally on the Burner, behind the central ports on the Front Burner.
  • Page 31 GB & IE Log 3 Posi�on Log 3 on top of the Le� Hand side of the Front Burner. Log 4 Posi�on Logs 4 so that it sits on top of Logs 1,2 and 3. Log 5 Posi�on Logs 5 so that it sits on top of Log 4 in the centre, with the bo�om in the Le�...
  • Page 32 GB & IE Log 6 Posi�on Log 6 so that the Top of the Log sits on Log 4, with the bottom extending to the Rear of the Fire Box. Log 7 Posi�on Log 7 in the centre, si�ng on the Grate, behind the Log Bar, with the Top on Log Log 8 Posi�on Log 8 in the Left Hand...
  • Page 33: Commissioning The Appliance

    GB & IE 3.6 Commissioning the Appliance 3.6.1 Pilot Igni�on Check 1. Ignite the pilot light as described in the User Instructions. 2. Check that the pilot flame stays alight. 3. Ex�nguish the pilot light. 3.6.2 Main Burner Check 1. Ignite the pilot light as described in the User Instructions. 2.
  • Page 34: Servicing

    GB & IE 4. Servicing Turn the appliance OFF and isolate the gas supply. Ensure the appliance is fully cold before attempting to start servicing the appliance. No liability can be accepted by Mendip for injury caused by burning or scolding by a hot appliance.
  • Page 35: Spare Parts

    GB & IE 4.3 Spare parts Descrip�on Part No. Front Window Panel M10560-01-01-99-00 Ceramic Log Pack (incl. embers) YXAB:S6-103 / M10580-44-02-99-00 Ember Pack MK30-EMBER Pilot Assembly Natural G30-ZP2-312 Pilot Assembly LPG G30-ZP2-271 Electrode G30-SPK1 Electrode Lead G60-ZKIS1/515 Thermocouple YG56182 Injector Natural Front (280) EG05177 Injector Natural Rear (160) AG50160...
  • Page 36: Technical Data

    Natural Gas M00580-00-00-00-00 M00581-00-00-00-00 Ashcott Logstore BF Natural Gas M00583-00-00-00-00 M00584-00-00-00-00 Woodland BF Natural Gas M00511-00-00-00-00 M00512-00-00-00-00 5.2.1 Ashcott BF & Woodland BF G20/G25 G25/G25.3 G20/G25 Balanced Flue Ashcott & Woodland I2H,I2E I2E+ I2L/ I2EK I2ELL Gas type I2(43.46 -45.3 MJ/m3 (0°C))
  • Page 37: Dimensions

    GB & IE 5.3 Dimensions 5.3.1 Ashco� Top Flue 5.3.2 Ashcott Rear Flue 37 of 40...
  • Page 38 GB & IE 5.3 Dimensions 5.3.3 Woodland Top Flue 5.3.4 Woodland Rear Flue 38 of 40...
  • Page 39 GB & IE Appendix 1 – Mertik Maxitrol Symax Control System. 39 of 40...
  • Page 40 GB & IE MENDIP STOVES Unit H1 Mendip Industrial Estate Mendip Road Rooksbridge Somerset BS26 2UG Tel. : +44 (0) 1934 750500 Web : www.mendipstoves.co.uk Email : info@eurostove.co.uk Mendip stoves: Ashcott BF/Woodland BF GAS manual May 2021. V1.5c 40 of 40...
