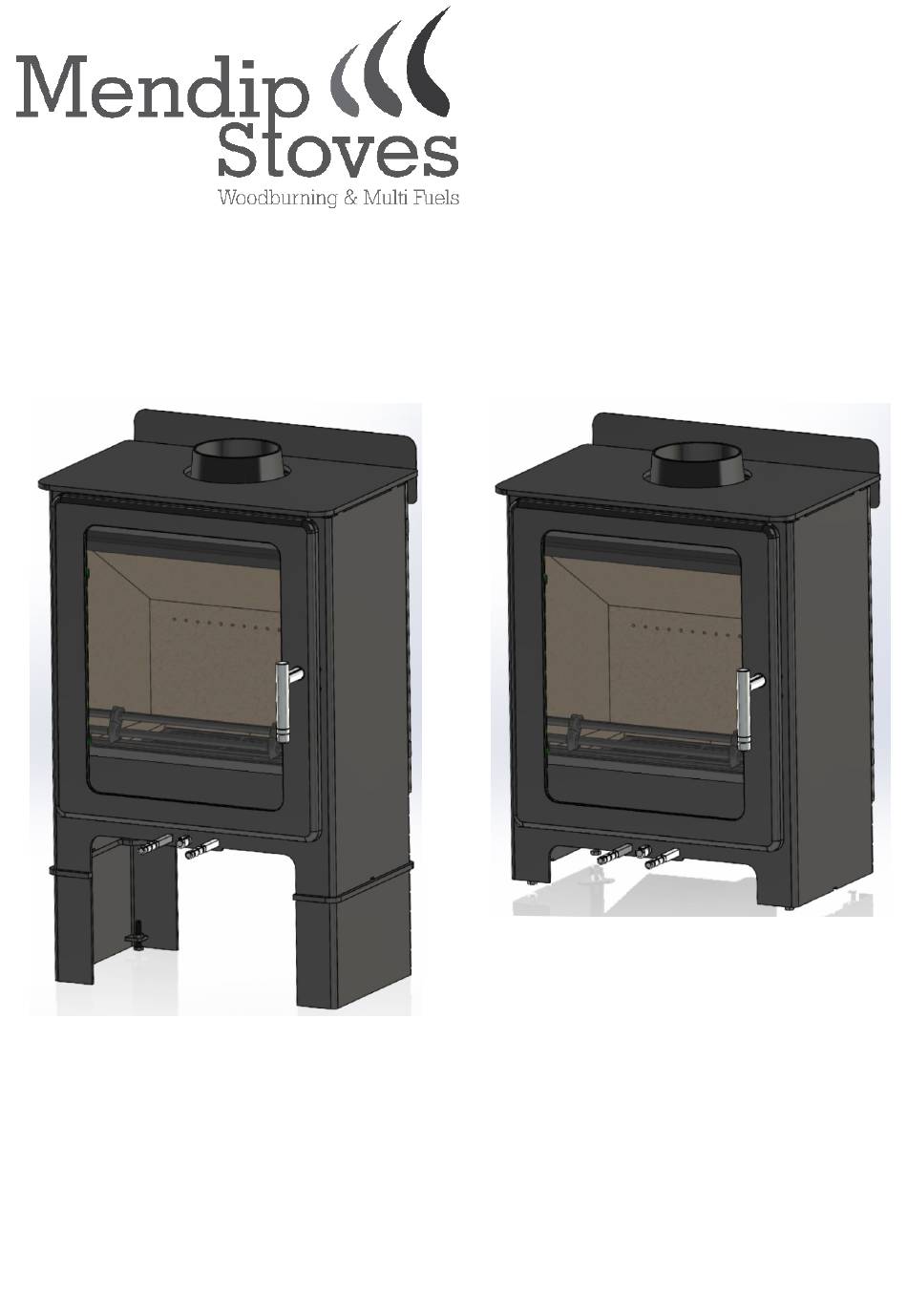

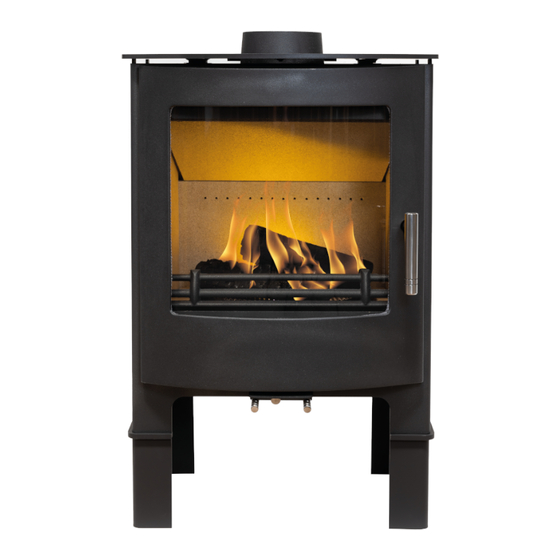

- Page 1 May 2022 OPERATION AND INSTALLATION MANUAL MULTI-FUEL & SMOKE EXEMPTION MODELS Loxton 5 SE Dual Control Loxton 5 SE Logstore SE Dual Control Loxton 5 DC Mk.5 Manual - Version 3.1 - May 2022 1 of 28...
- Page 2 LOXTON 5 DIMENSIONS AND CONNECTION MEASUREMENTS Loxton 5 DC THE INTERNAL DIAMETER OF THE FLUE COLLAR IS 125mm Loxton 5 DC Convector plus The additional, top flue rear convection panel (supplied loose within the stove) needs to be used when installing the stove 100mm from a combus�ble wall;...
- Page 3 LOXTON 5 LOGSTORE DIMENSIONS AND CONNECTION MEASUREMENTS THE INTERNAL DIAMETER OF THE FLUE COLLAR IS 125mm Loxton 5 DC Logstore The direct air intake spigot (80mm diameter) to The additional, top flue rear convection panel the rear of the stove is removable with a 2.5mm (supplied loose within the stove) needs to be used when allen key.
- Page 4 This manual refers to the stoves listed above, which are tested in accordance with EN 13240. Thank you for purchasing your new stove from Mendip Stoves. Please read this manual carefully to ensure that you get maximum enjoymentand performancefrom yournew stoveand toprevent anypoten�al opera�ona l problems.
-
Page 5: Health And Safety Precautions
IMPORTANT: These instruc�ons cover the basic principles to ensure the sa�sfactory installa�on of Mendip Stoves product :- Loxton models, although detail may need slight modifica�on to suit par�cular local site. - Page 6 Mendip Stoves recommend the use of a solid fuel flue lining system for all installation into existing chimneys. All chimney systems must be used in accordance with Building regulations Approved Document J.
- Page 7 STOVE PERFORMANCE & TESTING Mendip Stoves, Loxton Dual Control 5kW models are tested in accordance with EN 13240. 76.5% 0.08% 4.9 kW Weight & Nominal Heat Output for Wood and Smokeless Fuels Log Length Wood Reload Weight Wood Load Smokeless brique�ed...
- Page 8 MINIMUM DISTANCE TO NON-COMBUSTIBLE MATERIALS The stove can be recessed in a suitable sized non combus�ble fireplace but a permanent free air gap of at least 50mm must be le� around the sides, the top and the back of the stove; this is to facilitate a reasonable heat output and allows access to the stove for removal and maintenance.
- Page 9 HOW TO FIT A LOGSTORE LEGS- Loxton -Churchill - Woodland Removeinternals and top plate Unbolt stove adjustable legs with 13mm spanner Ensure leg is aligned with body before final tighten Place stove on side to allow leg installation, protect paint with a blanket Use M8 x 50mm bolts supplied and fix legs in place, use...
- Page 10 HOW TO FIT LOGSTORE HEAT SHIELD Place stove on its side with brick set and loose parts removed. Screw in 4 x 15mm standoffs into base convection panel Standoff Place addi�onal log store convector panel in place Screw in 4 x 5mm x 12mm hex bolts into standoffs fixing 10 of 28...
-
Page 11: Commissioning And Handover
Connec�on to chimney Mendip Stoves are built with a top flue outlet as standard, this can be altered to a rear connec�on by removing the top collar, rear cover plate then exchanging collar and plate. Care should be taken to ensure an air�ght fit when refi�ng collar and plate. - Page 12 OPERATING YOUR STOVE - LOXTON DUAL CONTROL THE LOXTON STOVE HAS THREE AIR CONTROL LEVERS TO HELP REGULATE YOUR STOVE. PRIMARY AIR TERTIARY AIR SECONDARY AIR Pull out for more Pull out for more air, Pull out for less air, push in close air , push in close push in for normal air...
- Page 13 HOW TO LIGHT YOUR WOODBURNING STOVE Note: If the chimney is externally fi�ed or the stove has been installed on a larger diameter clay chimney liner then on cold days it maybe necessary to warm the flue using firelighters prior to ligh�ng with wood.
-
Page 14: Warning Note
DO NOT BURN HOUSE COAL. DO NOT BURN HOUSEHOLD WASTE. THIS APPLIANCE IS NOT AN INCINERATOR MENDIP STOVES RECOMMEND THE USE OF A FLUE THERMOSTAT TO CHECK YOUR STOVE IS NOT OVERHEATING. PLACE FLUE THERMOSTAT DIRECTLY ABOVE COLLAR OF STOVE AND REFER TO TEMPERATURE GAUGE ON PAGE 6. -
Page 15: Troubleshooting
RE-FUELLING WHEN BURNING WOOD Adding fuel to your stove when you only have glowing embers,and the flames have died down, is the cleanest way to refuel your stove. 1. Before refuelling, Pull open both the Primary and Secondary controls fully. 2. - Page 16 Mendip Stoves do not recommend burning registered smokeless brique�ed fuel or similar in a slumbering position, Mendip stoves are designed to burn wood or quality registered smokeless fuels. Wood burns more efficiently and cleanly if it is burnt ho�er. Mendip stoves do not recommend that their stoves are burnt overnight for this reason.
-
Page 17: Maintenance
MAINTENANCE Mendip stoves recommends that your model needs to have the ash removed from the stove at regular intervals (weekly if used daily). Allowing the ash pan to over flow can impede the func�on of the stove and can cause possible damage to the stove grate and ash pan. - Page 18 The SE appliances include a modified air control to prevent closure of the secondary air control beyond 25% open (11mm) altera�ons should not be a�empted. Mendip Stoves smoke control stoves should not be burnt with the door le� open.
-
Page 19: Loose Parts
STOVE PARTS, COMBUSTION CHAMBER, ASSEMBLY "This section shows the parts contained in your stove, each stove has over 80 spare-parts and, each part is detailed. When new parts are required the section will allow spares to be recognised and ordered. As a further source of reference please visit www.eurostove.co.uk for latest spare-part informa�on. - Page 20 HOW TO REMOVE THE WOODBURNERS INTERNAL PARTS To remove the vermiculite brick set take the following steps: Li� out the 2 base bricks next to the grate. Li� out log retainer Remove the Le� hand vermiculite side brick by Li�ing the top baffle brick and pulling the side brick down from the top.
- Page 21 VERMICULITE BRICK SET PART NUMBERS VERMICULITE BRICKS REFERENCE TABLE Diagram No. Part No. Description No. Of Parts ES-500-400-1 Full Brick Set - Loxton 5 ES-500-412-1 Rear Brick ES-500-413-1 Baffle Brick ES-500-414-1 Right Side Brick ES-500-415-1 Le� Side Brick ES-500-417-1 Base Brick Side ES-500-417-2 Base Brick Rear ES-500-420-0...
- Page 22 Loxton 5 MK.4 DOOR ASSEMBLY - ( complete door assembly M90063-06-00-00-02 Diagram No. Part No. Description CH-500-209-0 Door Handle CH-500-120-0 Glass Clamp LX-500-201-0 Door Frame (only) LX-500-501-0 Glass M90520-06-02-01-05 Door Rope Seal Kit M90520-06-13-99-02 Handle Fixing Kit (complete) M90026-01-02-01-04 Glass Seal Kit (incl. 6 Clamp Pads) U91000-98-12-99-00 M5 X 8mm screw ( 6) Handle Latch Assembly...
- Page 23 STOVE PART NUMBERS SEE PAGE 20 SEE PAGE 21 23 of 28...
- Page 24 STOVE PART NUMBERS Diagram No. Part No. Description ES-500-187-0 Top Flue Rear Convec�on Panel EST_2051_000_11_3 Flue Collar M90500-07-03-00-04 Flue Cover Plate M90500-07-10-01-01 Collar/Blanking Plate Seal ES-500-142-0 Flue Blanking Plate CH-500-180-0 Secondary Air Smoke Deflector ES-500-117-0 Turbulence Plate B90300-05-01-00-00 Grate ES-500-147-0 Grate Support ES-500-140-1 Log Retainer...
- Page 25 Type, batch or serial number: Churchill 5 DC / Loxton 5 DC Intended use of the product: Heat distribution/room heating. Without hot water supply. Mendip Stoves Eurostove Ltd Name and Address of the manufacturer: Unit H1, Mendip Industrial Estate, Rooksbridge, Somerset TA9 4NG...
- Page 26 26 of 28...
- Page 27 27 of 28...
- Page 28 27 of 28...
- Page 29 Mendip Stoves Ltd. Unit H1 Mendip Industrial Estate Mendip Road Rooksbridge Somerset BS26 2UG Website www.mendipstoves.co.uk Email info@eurostove.co.uk Telephone 01934 750 500 M10500-49-00-99-00 Loxton 5 DC Mk.5 Manual - Version 3.1 - May 2022 28 of 28...
