ViziT BVD 10CBL Operating Instruction

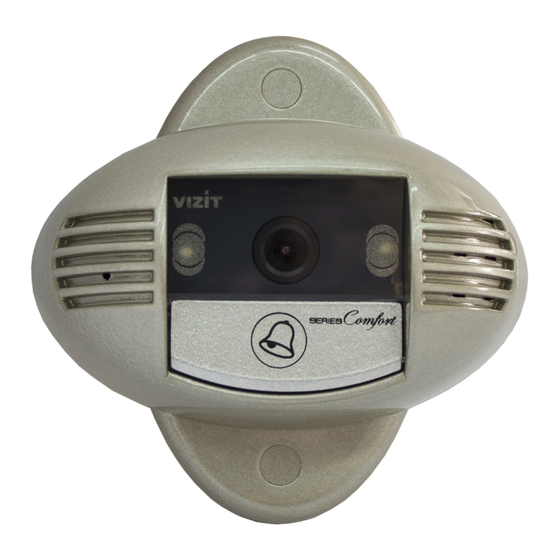

Doorstation BVD 10CBL -4
Abbreviations used in the model name
С - Colour camera
B - Board lens
L - Illumination for camera
1
·
Calls to the subscriber by pressing the
·
Beep in the doorstation and monitor / apartment handset, when the CALL button is pressed
·
Duplex intercom
·
Door zone video monitoring
·
Remote door unlocking by pressing the
·
Beeps to indicate door lock release
·
LED illumination for the camera
Subscriber devices are
- apartment handsets UKP
- video monitors VIZIT-М
The product does not contain voltage above
Do not make any connections or repair, when the power is on.
Connect the protective conductor
Take care not to spill any liquids or chemically active substances on the product. Switch the power off before cleaning the
product. Clean by wiping with dry soft cloth. Do not use any liquid cleaners, aerosol cleaners or abrasive agents.
x 1
BVD-410CBL
x 2 x 2
Screw М4х12 Washer 4
www. vizit-group.com
OPERATING INSTRUCTION
is intended for operation within
:
(white LEDs)
2 3
6
5
4
Figure 1 - Doorstation BVD-410CBL
CALL button.
VIZIT® trademarked products
of Series 400
SAFETY INSTRUCTIONS
25 V
of the doorstation to the
x 1
Flat Base
x 4 x 2
Gag Screw - 4х40
BVD-4 10 CBL Operating Instruction (revision
VIZIT video doorphones (Series Comfort).
Base
1
2 Camera
3 LEDs for illumination
Microphone
4
5 CALL button
Speaker
6
FEATURES
button on the monitor / apartment handset during intercom
:
.
main protective conductor of the building.
PARTS LIST
x 1
Skew Base
Fasteners
x 2
Anchor 6х 0 4
x 1
Operating Instruction
For protective earthing
x 1 x 2
Screw М3 Washer 3 Nut М3 Loop Lug
201 - 6 06)
BVD-410CBL
x 1 x 1
1/5
