HYDRAULIC PUMP

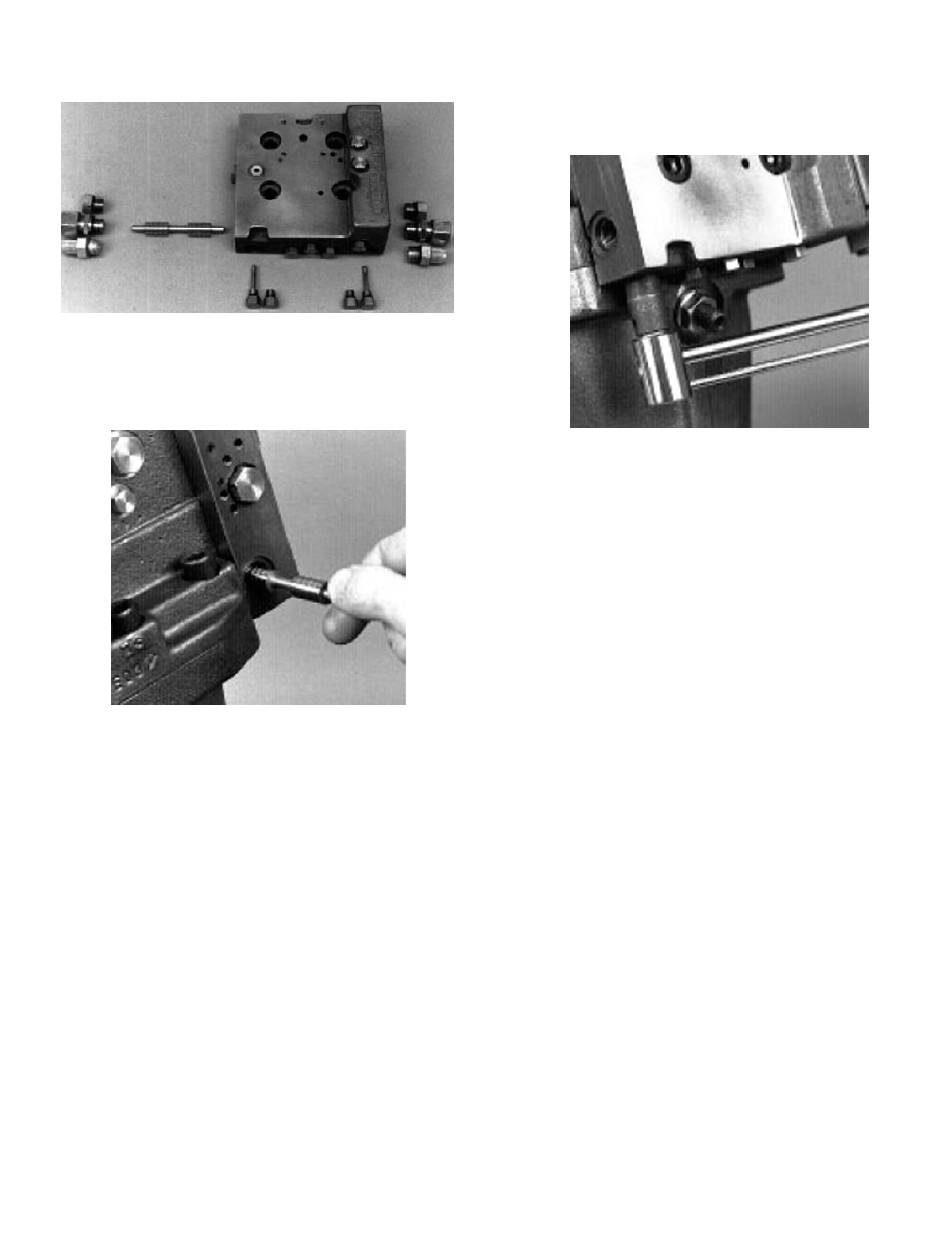

Figure 52. Multi- -function Block with PCOR Defeat
Spool Components
(4) Install the PCOR defeat spool into its bore in
the multi---function block (Fig 53).
Figure 53. Install PCOR Defeat Spool
(5) Install the spool stop plugs into the multi---
function block (Fig. 54). Torque the stop
plugs to 4 ft. lbs (6 Nm).
Figure 54. Install PCOR Defeat Spool Stop Plug
(6) Install the defeat spool bore plugs or fittings
and torque to 20 ft. lbs. (27 Nm).
