HYDRAULIC PUMP
6.5.3

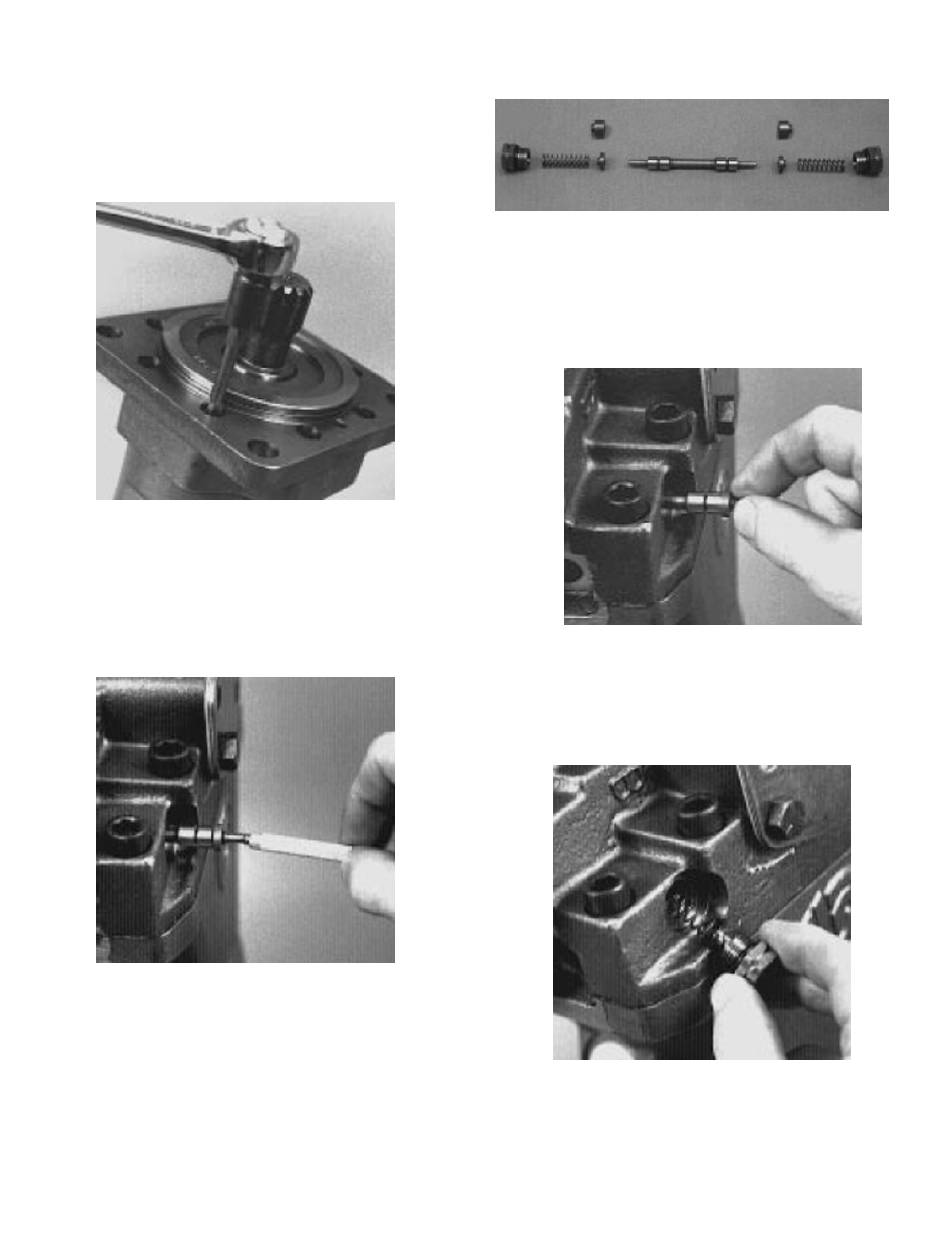

Loop Flushing Shuttle Valve Replacement

(1) Remove the hex plugs from both sides of the
end cap (Fig. 17).
Figure 17. Shuttle Valve Plug Removal
(2) Remove springs and spring seats. Note the
orientation of the washers. Remove flushing
valve spool (Fig.18).
Figure 18. Flushing Valave Spool Removal
(3) Inspect parts (Fig. 19) for damage or foreign
material, clean or replace as necessary.
Figure 19. Loop Flushing Shuttle Valve Components
(4) Install flushing valve spool in end cap (Fig.
20). Install the spring seat washers on each
end of the spool. The step on the spring seat
washers should face out toward the springs.
Figure 20. Valve Spool and Washer Installation
(5) Install the spool springs and hex plugs in
both sides of end cap (Fig. 21). Torque the
plugs to 30 ft. lbs (41 Nm).
Figure 21. Plug and Spring Installation
GROUP 3025
3025- - 9A, Page 15
