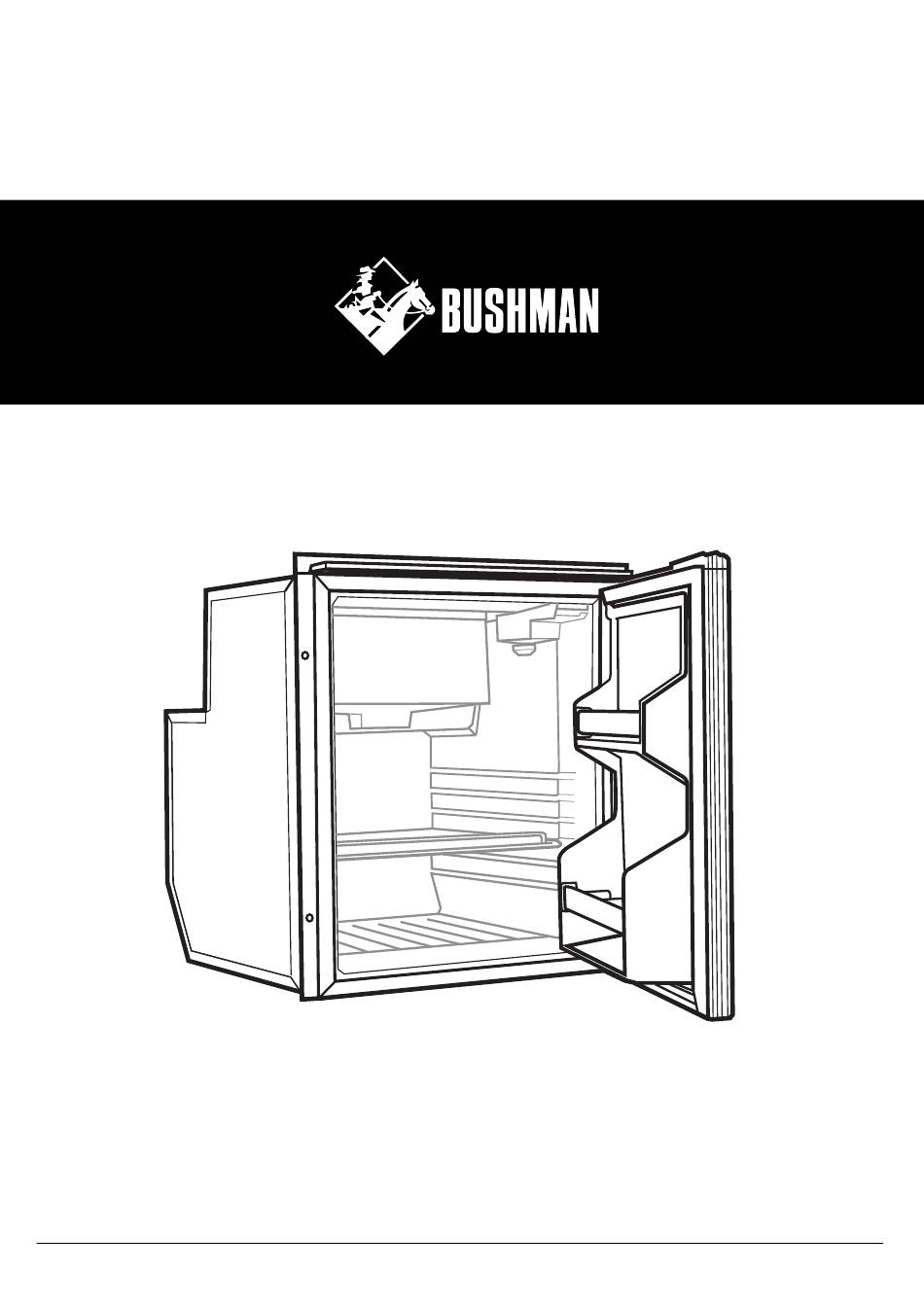

- Page 1 Owners Manual & Operating Instructions User Manual and DC 85X & DC 130X 12/24V Fridge/Freezer DC-X Series Fridges CARAVAN – MARINE – RV - OFFGRID...
-
Page 2: Installation
Congratulations on your purchase of a Bushman DC-X fridge. Please read these instructions carefully before installation and use. Please be safe and use common sense and caution when installing, operating and cleaning this appliance. If you are unsure about any of these instructions, contact your local stockist before proceeding. - Page 3 INSTALLATION INTO A CAVITY DC-X fridges are designed to be installed in a cavity. A gap of minimum 40mm is recommended for the rear. Refer to the following table for the recommended cut-out dimensions. If you are using the mounting kit, allow an extra 5mm width for the mounting kit frame and screws.
- Page 4 Reaffix the door handle using the original screws. Reapply the logo sticker onto the door handle by applying moderate heat to the sticker. Use the supplied DC-X Series sticker to cover the old screw holes. REPLACING THE FRONT DOOR PANEL Follow steps 1 to 2 under “Moving the door handle”...
- Page 5 ADJUSTING THE DOOR LATCH Whenever the door or hinges have been moved, please adjust the top metal rail that the door latch clips under. Loosen the screws and move the top metal rail towards the rear of the fridge cabinet until the plastic door latch just makes light contact.
- Page 8 VENTILLATION OPTIONS DC-X min 200cm Exterior Ventilation min 40mm min 40mm min 150mm min 40mm Interior Ventilation Option 1 Interior Ventilation Option 2 min 40mm min 200cm min 150mm min 40mm Interior Ventilation Option 3 Interior Ventilation Option 4...
-
Page 9: Warranty
Bushman printed installation and operating instructions. To obtain service under this warranty, the defective product must be returned to Bushman together with a copy of the original purchase receipt. Any product repaired or replaced under this warranty will be warranted for the balance of the warranty period with respect to the original purchased product. -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE Please check each of these 4 points. All 4 need to be right for your fridge to operate correctly. 1. VOLTAGE The most common cause of an incorrectly functioning fridge, or a fridge that starts and stops and doesn’t get cold, is a lack of consistent voltage. - Page 11 RED LED ERROR LIGHT From mid 2021 onwards all Bushman DC-X series are fitted with a red LED error light attached to the compressor. If your fridge cuts out or will not operate, look inside the compressor compartment for a flashing red LED light. The number of flashes corresponds to the following error type.
- Page 12 NOTES For after sales service and enquiries, please contact: Bushman Fridges 3 Contour Close Research VIC 3095 (03) 8080 9990 info@bushman.com.au...
