Bushman XD-200 Instruction Manual

Gas freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

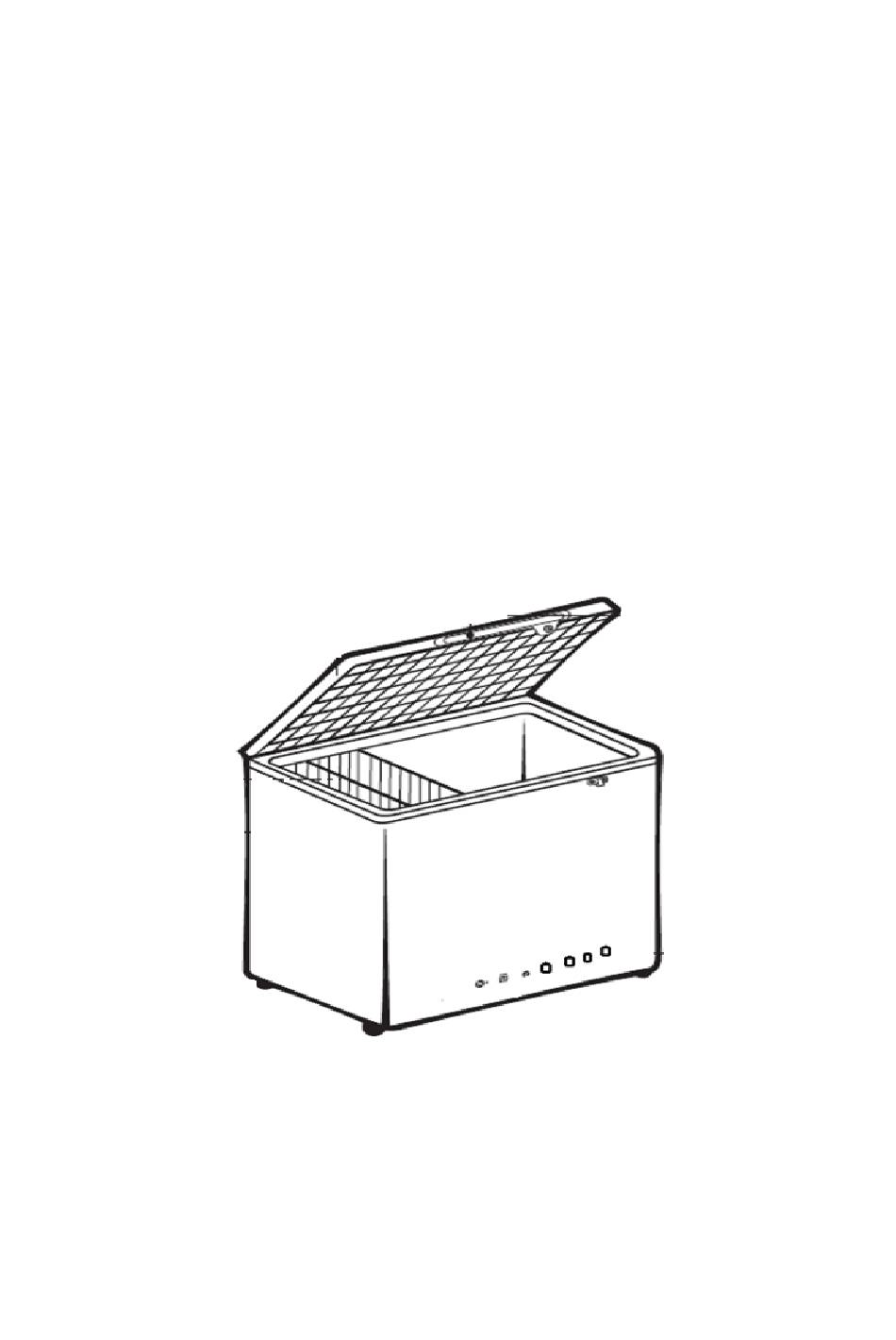

Instruction Manual
Gas Freezer
Models
XD-160/XD-200
two way fridge
Warning:
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
If you smell gas:
1. Evacuate enclosure.
2. Call for professional help.
Read this manual carefully and be thoroughly acquainted with its contents before
operating this freezer
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XD-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Bushman XD-200

Summary of Contents for Bushman XD-200

  • Page 1 Instruction Manual Gas Freezer Models XD-160/XD-200 two way fridge Warning: FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. If you smell gas: 1. Evacuate enclosure.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE Introduction ………………………………………………………………….……… 3 Important Safety Precautions …………………………………………..…………..4 Warning ……………………………………………………………...………..… 5 Parts and Features …………………………………………………...…………. 6 Installation instructions …………………………………………..…………..7 Operation Instructions …………………………………………………..…………..9 Cleaning ……………………………………………………………………………...11 Troubleshooting and Maintenance ………………………………………………12 Warranty……………………………………………………………………………..12 Installation instruction for handles……..………………………………………14...

  • Page 3: Introduction

    Inspect the freezer for damage. Transit damage must be reported to whoever is responsible for delivery not later than seven days after the freezer was delivered. Power source requirements Model XD-160,and XD-200 are two way freezers designed to operate on LPG and 230v energy sources Propane Gas Operation 2.75 KPa AC Operation 230V 50Hz Operating in excess of these specifications can damage the freezer’s electrical circuit, related...

  • Page 4: Important Safety Precautions

    REFERENCE INFORMATION Please complete the following information for future reference. You will need it to obtain warranty service. Model Name*: __________________________________ Serial Number *: __________________________________ Date of Purchase: __________________________________ Place of Purchase: _________________________________ *The above information is written on the nameplate inside the cabinet. Retain this user manual with your sales receipt as a permanent record of your purchase.

  • Page 5: Warning

    Before discarding or storing, we recommend that you remove the door and leave the shelves in place. This will reduce the possibility of danger to children. The sealed cooling system must not be opened, since it contains corroding chemicals under high pressure. Check that the gas supplied to the freezer is at the correct pressure.

  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS It is advisable to clean the inside of the absorption freezer with lukewarm water using a mild detergent and then to dry it thoroughly prior to use. LEVELLING AND VENTILATION The refrigeration system of the cabinet is designed to operate with the cabinet located on a flat surface. Avoid tilting the cabinet side.
  • Page 8 PROPANE GAS CONNECTION The freezer is designed for operation on Propane Gas, the pressure of which must be 2.75kPa. Check that this is stated on the dataplate. The freezer is NOT designed for operation on town gas or natural gas. CAUTION! CHECK THAT THE GAS SUPPLIED TO THE FREEZER IS AT THE PROPER PRESSURE.

  • Page 9: Operation Instructions

    Plug the 230 V freezer power cord into an easily accessible earthed wall socket. Electrical leads must be routed and secured so that they cannot come into contact with hot or sharp parts of the freezer OPERATION INSTRUCTIONS – Model XD-200 or XD-160 （Battery ignition） Fig1 The freezer can be run on either 230V or Propane gas.
  • Page 10 220-240V OPERATION 1. Make sure that the gas valve is turned off. 2. Plug the power cord into the power socket. 3. Turn the Power Control Knob (F) to the ‘AC’ position. The green AC lamp will illuminate. To terminate gas operation, turn off the gas valve from the gas cylinder and turn the Power Control Knob (F) to the OFF position.

  • Page 11: Cleaning

    CLEANING THE FREEZER Warning: To avoid electric shock always unplug your absorption freezer before cleaning. Ignoring this warning may result in injury. General: Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolor your absorption freezer.

  • Page 12: Troubleshooting And Maintenance

    5. Clean the inside of the flue tube with a flue brush. Inspect burner after cleaning. 6. Re-install the spiral flue baffle. Insure the spiral flue baffle is securely in place. The spiral flue baffle is required for efficient cooling while operating in the gas mode. TROUBLE SHOOTING AND MAINTENANCE If the freezer fails to work, check the following points before calling a service technician: 1.

  • Page 13: Warranty

    (when viewing from the front), 70mm from the side and 105mm from the floor. SERVICE AND SPARE PARTS For service and spare parts for your refrigerator, contact: DP Refrigeration Pty Ltd - Head Office Phone - (03) 9437 0737 info@bushman.com.au...

This manual is also suitable for:

Xd-160
