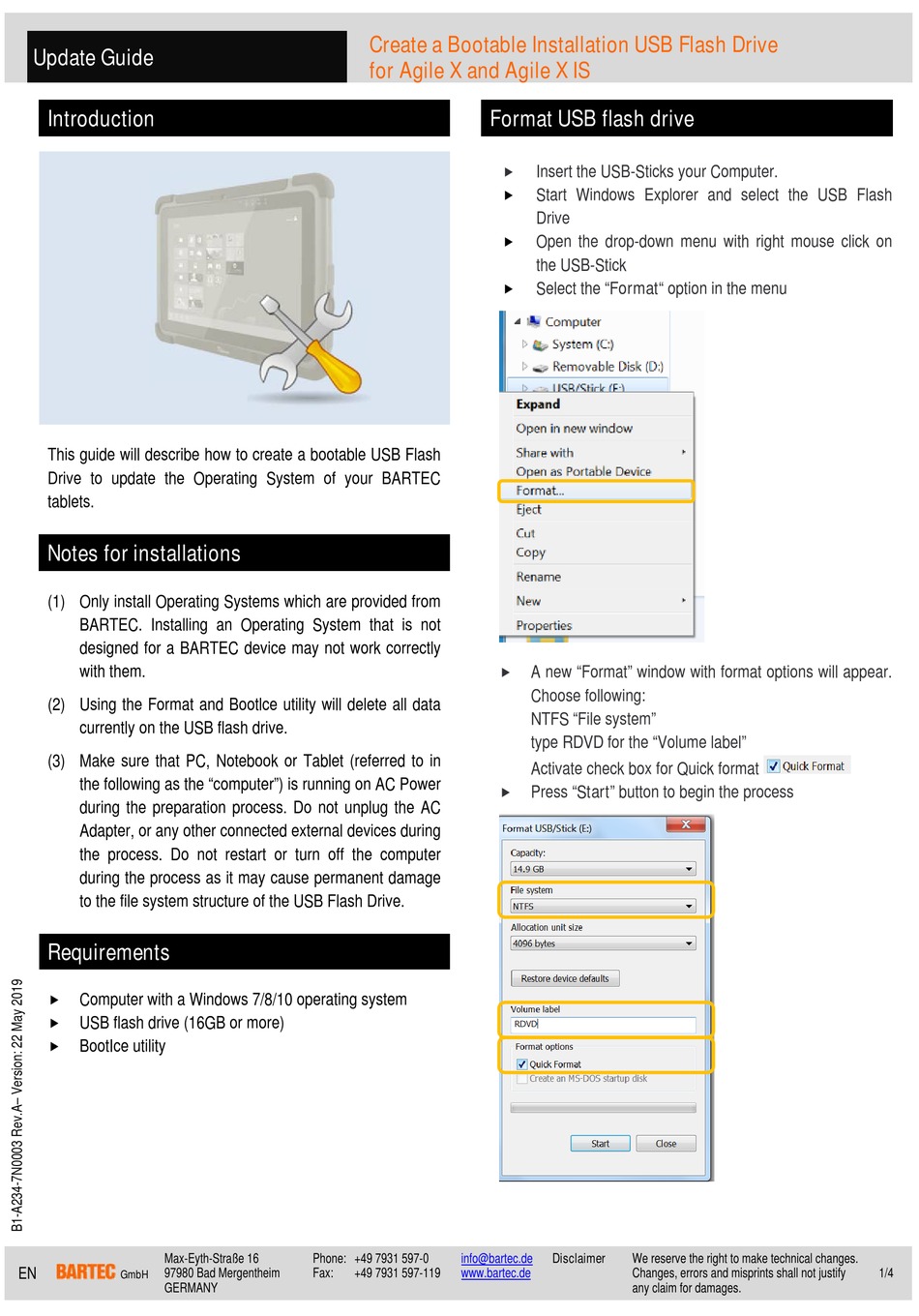

Update Guide

Introduction

This guide will describe how to create a bootable USB Flash
Drive to update the Operating System of your BARTEC
tablets.

Notes for installations

(1) Only install Operating Systems which are provided from
BARTEC. Installing an Operating System that is not
designed for a BARTEC device may not work correctly
with them.
(2) Using the Format and Bootlce utility will delete all data
currently on the USB flash drive.
(3) Make sure that PC, Notebook or Tablet (referred to in
the following as the "computer") is running on AC Power
during the preparation process. Do not unplug the AC
Adapter, or any other connected external devices during
the process. Do not restart or turn off the computer
during the process as it may cause permanent damage
to the file system structure of the USB Flash Drive.

Requirements

Computer with a Windows 7/8/10 operating system
USB flash drive (16GB or more)
BootIce utility
Max-Eyth-Straße 16
EN
97980 Bad Mergentheim
GmbH
GERMANY
Create a Bootable Installation USB Flash Drive
for Agile X and Agile X IS
Phone: +49 7931 597-0
info@bartec.de
Fax:
+49 7931 597-119
www.bartec.de

Format USB flash drive

Insert the USB-Sticks your Computer.
Start Windows Explorer and select the USB Flash
Drive
Open the drop-down menu with right mouse click on
the USB-Stick
Select the "Format" option in the menu
A new "Format" window with format options will appear.
Choose following:
NTFS "File system"
type RDVD for the "Volume label"
Activate check box for Quick format
Press "Start" button to begin the process
Disclaimer
We reserve the right to make technical changes.
Changes, errors and misprints shall not justify
any claim for damages.
1/4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Agile X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bartec Agile X

  • Page 1 Select the “Format“ option in the menu  This guide will describe how to create a bootable USB Flash Drive to update the Operating System of your BARTEC tablets. Notes for installations (1) Only install Operating Systems which are provided from BARTEC.
  • Page 2 Create a Bootable Installation USB Flash Drive Update Guide for Agile X and Agile X IS Creating a bootable USB flash drive Press “Ok” button in the next message to continue the  process Insert an USB flash drive into a running computer ...
  • Page 3 Create a Bootable Installation USB Flash Drive Update Guide for Agile X and Agile X IS A message “Successfully activated this partition” will  appear after completing the process Make sure that the “Windows NT 5.x / 6.x MBR” option ...
  • Page 4 Create a Bootable Installation USB Flash Drive Update Guide for Agile X and Agile X IS A message “Successfully changed the MBR of this disk”  will appear after completing the process Press “Ok” button to close this message ...
