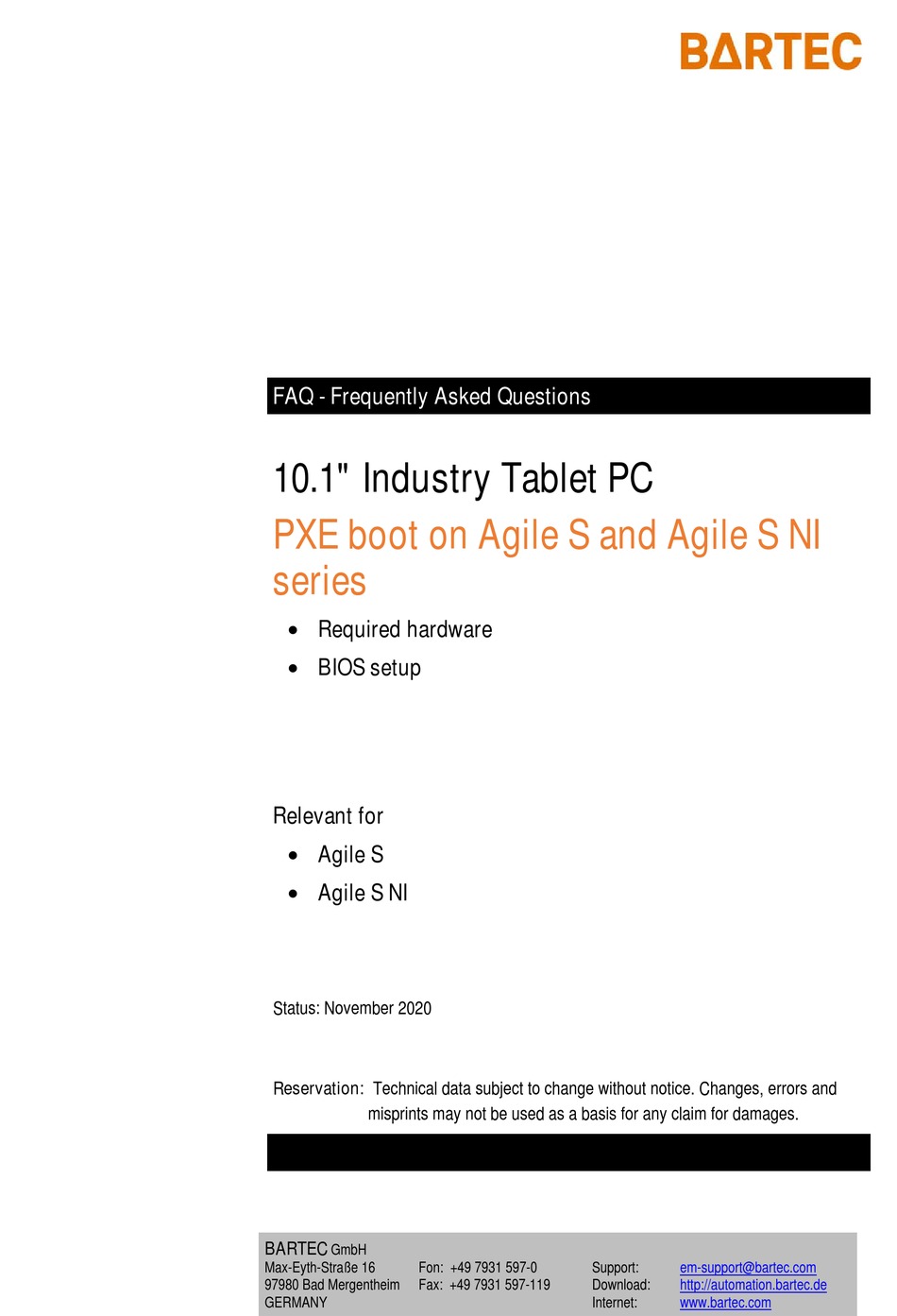

FAQ - Frequently Asked Questions
10.1" Industry Tablet PC
PXE boot on Agile S and Agile S NI
series
Required hardware
BIOS setup
Relevant for
Agile S
Agile S NI
Status: November 2020
Reservation: Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
BARTEC
GmbH
Max-Eyth-Straße 16
Fon: +49 7931 597-0
97980 Bad Mergentheim
Fax: +49 7931 597-119
GERMANY
Support:
em-support@bartec.com
Download:
http://automation.bartec.de
Internet:
www.bartec.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bartec Agile S Series
Summary of Contents for Bartec Agile S Series
- Page 1 Agile S NI Status: November 2020 Reservation: Technical data subject to change without notice. Changes, errors and misprints may not be used as a basis for any claim for damages. BARTEC GmbH Max-Eyth-Straße 16 Fon: +49 7931 597-0 Support: em-support@bartec.com...
-
Page 3: Table Of Contents
Agile S and Agile S NI series Table of content FAQ: PXE boot 1. Information of this FAQ ........................2 1.1 Reference documents ...................... 2 2. About PXE ............................. 4 3. Notes to PXE ............................4 4. Required software and hardware ......................4 4.1 ... -
Page 4: Information Of This Faq
Various steps to be performed in the order specified. Indication of the results of a step or of several steps for monitoring success. Reference documents All documents are available online from the following websites: BARTEC: www.bartec.com or http://automation.bartec.de ‒ Document BARTEC Explanation Quick Start Guide of: It contains: ... - Page 5 Agile S and Agile S NI series FAQ: PXE boot Document BARTEC Explanation User Manual of: It contains: Agile S All essential information for the user to make full use of the device. This manual includes a description of ...
-
Page 6: About Pxe
Required software We recommend to use the latest available BIOS version for this devices. The latest version is listed on BARTEC support & Download page. https://automation.bartec.de/tabletpcE.htm Select your product and go to section Driver. There you will find a Note what BIOS version is currently available. -
Page 7: Required Hardware
Docking station Type 03-9914-0022 SAP 407990 Compatible with: Agile X series Agile S series (only with latest hardware version) Agile X IS series Docking station Type 03-9915-0017 SAP 374918 Note: only supported with BIOS version v1.34 or later. -
Page 8: Pxe - Bios Setup
Connect external keyboard to the Agile X IS via docking station. Start or restart the device and enter BIOS. Press “DEL”/”ENTF” key in start screen with BARTEC logo. Check that BIOS version is v1.29 or later. (picture shows example for BIOS version v1.29) Go to “Boot”... - Page 9 Agile S and Agile S NI series FAQ: PXE boot Change the boot capability to UEFI to “Ipv4/Ipv6” that support both network protocols. Go to “Exit”. Select “Save Changes and Exit” or press “F10” key to save and exit BIOS. Device automatically perform restart and auto connects media server.
- Page 10 Agile S and Agile S NI series FAQ: PXE boot Press “ESC” key to go into the boot manager. If you have more LAN available then you can choose the correct LAN for PXE boot. Subject to technical changes. 10/2020...
- Page 11 Agile S and Agile S NI series FAQ: PXE boot Select your LAN and press “Enter” to confirm your selection. Or press “ESC” key to leave the menue. Subject to technical changes. Subject to technical changes. 09/2020 10/2020...
