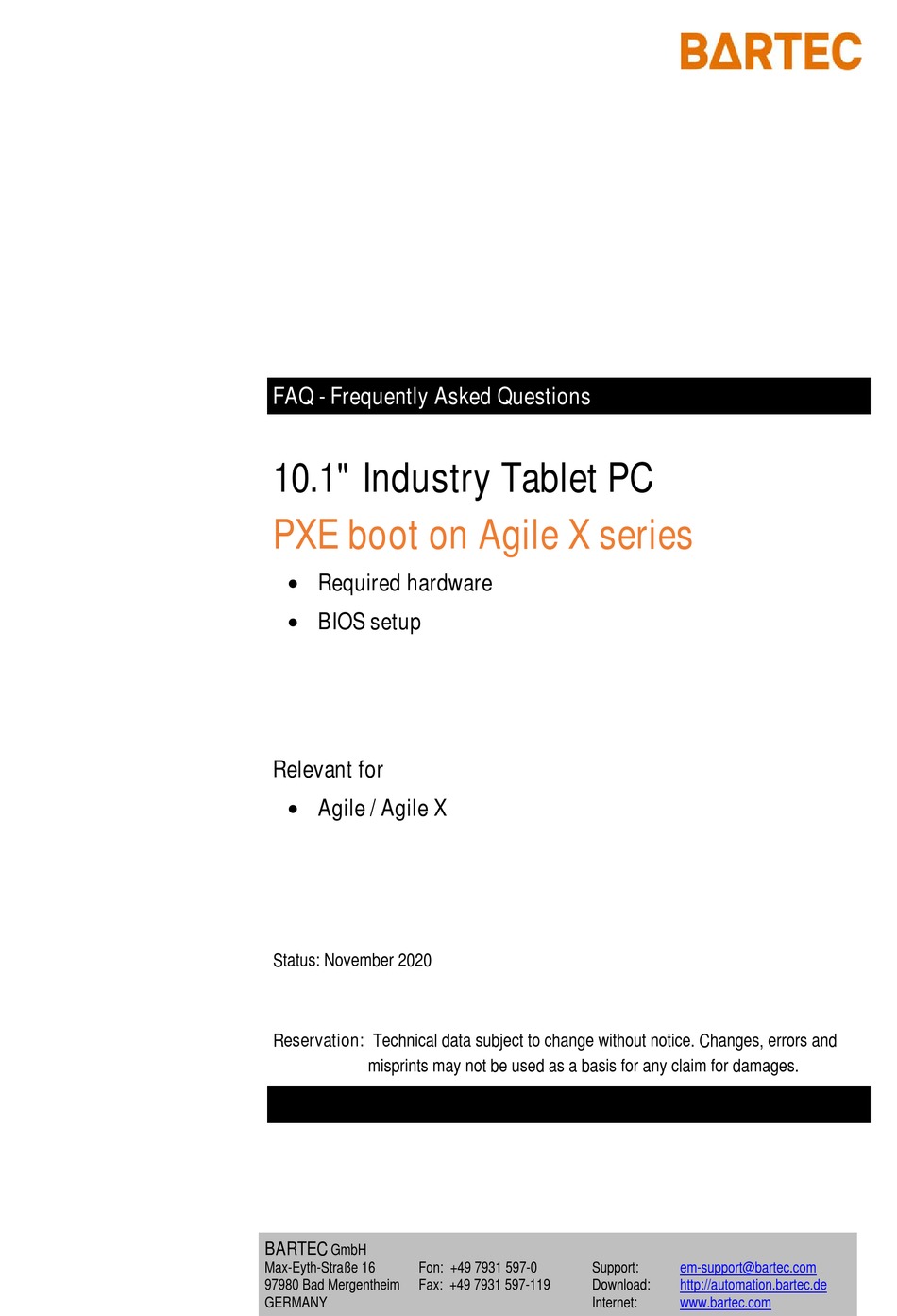

FAQ - Frequently Asked Questions

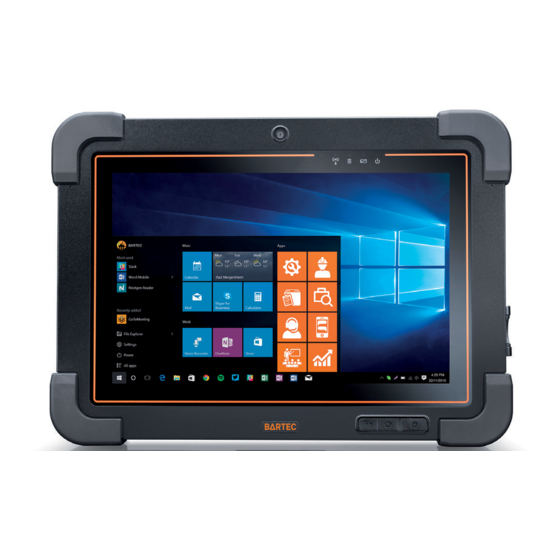

10.1" Industry Tablet PC
PXE boot on Agile X series
Required hardware
BIOS setup
Relevant for
Agile / Agile X
Status: November 2020
Reservation: Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
BARTEC
GmbH
Max-Eyth-Straße 16
Fon: +49 7931 597-0
97980 Bad Mergentheim
Fax: +49 7931 597-119
GERMANY
Support:
em-support@bartec.com
Download:
http://automation.bartec.de
Internet:
www.bartec.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bartec Agile X Series
Summary of Contents for Bartec Agile X Series
- Page 1 FAQ - Frequently Asked Questions 10.1" Industry Tablet PC PXE boot on Agile X series Required hardware BIOS setup Relevant for Agile / Agile X Status: November 2020 Reservation: Technical data subject to change without notice. Changes, errors and misprints may not be used as a basis for any claim for damages.
-
Page 3: Table Of Contents
Agile X series Table of content FAQ: PXE boot 1. Information of this FAQ ........................2 1.1 Reference documents ...................... 2 2. About PXE ............................. 4 3. Notes to PXE ............................4 4. Required software and hardware ......................4 4.1 ... -
Page 4: Information Of This Faq
Agile X series FAQ: PXE boot Information of this FAQ Read carefully before commissioning the device. The FAQ is an additional description to the available user manual and part of the device. The FAQ is directed at all persons who are entrusted with handling the device. - Page 5 Agile X series FAQ: PXE boot Document BARTEC Explanation User Manual of: It contains: Agile / Agile X All essential information for the user to make full use of the device. This manual includes a description of the system functions and capabilities, contingencies and modes of operation, and step-by-step procedures for system access and use.
-
Page 6: About Pxe
First, check that your PXE server supports UEFI or LEGACY or both. This information is required for correct setup. The settings on Agile X series and your PXE server must be identical that PXE boot can work correct. Required software and hardware Agile X series only support Ethernet and must use one of the following accessories to setup and proceed PXE. -
Page 7: Required Hardware
Agile X series FAQ: PXE boot Required hardware Adapter cable LAN for LAN from 30 pin extension port Connector RJ45 female Type: 03-9919-0022 SAP 374937 Compatible Tablet PC Agile Agile X Subject to technical changes. Subject to technical changes. -
Page 8: Pxe - Bios Setup
PXE – BIOS setup Connect external keyboard to the Agile X. Start or restart the device and enter BIOS. Press “DEL”/”ENTF” key in start screen with BARTEC logo. Go to “Advanced” and select “Miscellaneous Configuration” Subject to technical changes. 10/2020... - Page 9 Agile X series FAQ: PXE boot Go to “OS Selection” and select your operating system. Windows 8.X => for Windows 8.1 or Windows 10 operating system Windows 7 => for Windows 7 operating system Go to “Advanced” and select “Network Stack Configuration”...
- Page 10 Agile X series FAQ: PXE boot Go to “Advanced” and select “CSM Configuration” Setup following settings according to your server to “Legacy” or “UEFI”. Network Storage Video Other PCI devices Subject to technical changes. 10/2020...
- Page 11 Agile X series FAQ: PXE boot Go to “Boot” and select: “Boot mode select” according to your server to “Legacy” or “UEFI” Boot option to “Network” Go to “Save & Exit”. Select “Save Changes and Exit” to leave BIOS. Subject to technical changes.
