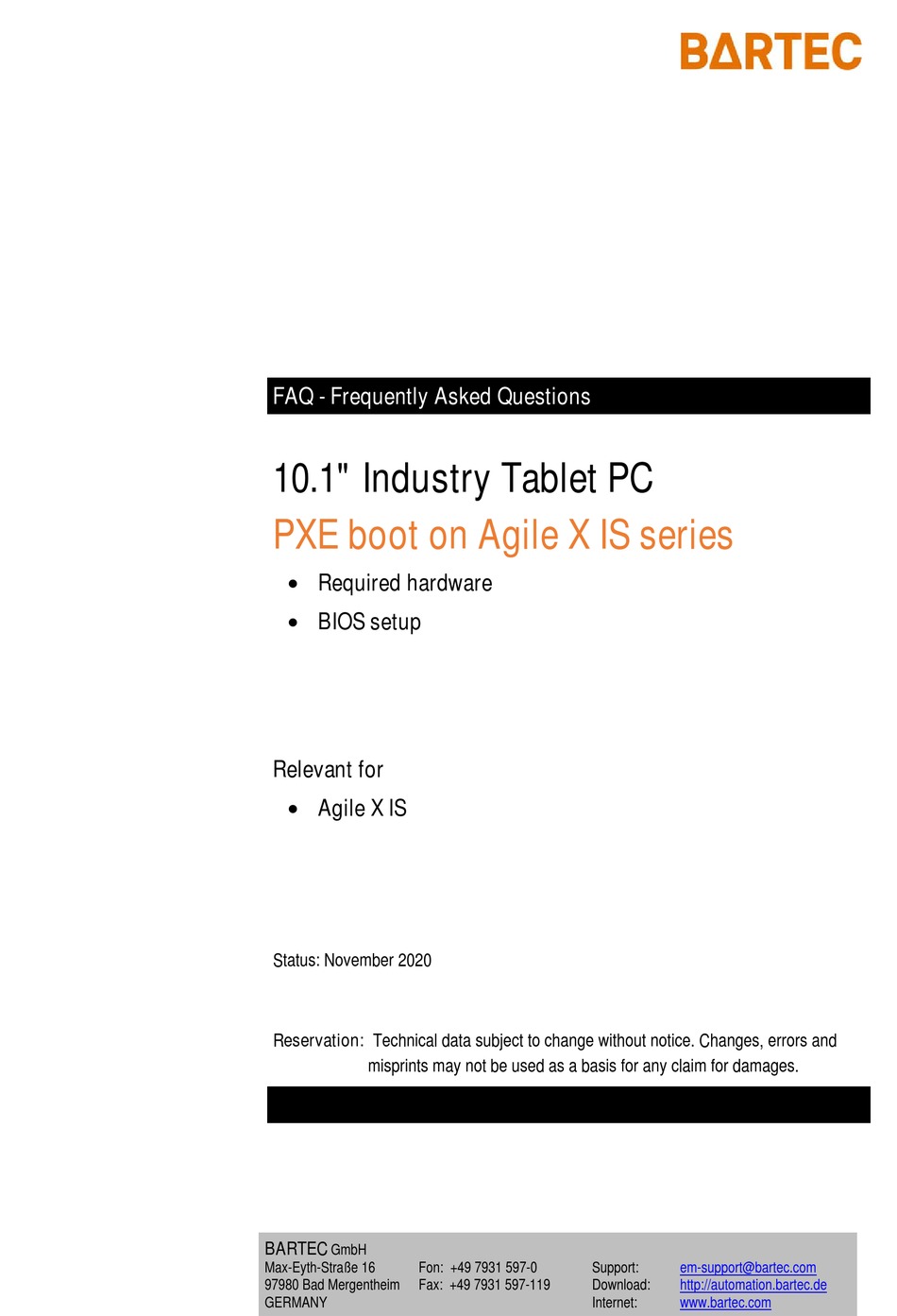

FAQ - Frequently Asked Questions

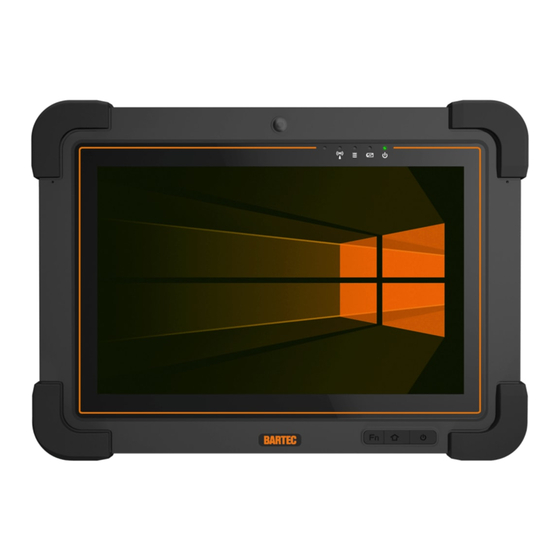

10.1" Industry Tablet PC
PXE boot on Agile X IS series
 Required hardware
 BIOS setup
Relevant for
 Agile X IS
Status: November 2020
Reservation: Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
BARTEC
GmbH
Max-Eyth-Straße 16
Fon: +49 7931 597-0
97980 Bad Mergentheim
Fax: +49 7931 597-119
GERMANY
Support:
em-support@bartec.com
Download:
http://automation.bartec.de
Internet:
www.bartec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Agile X IS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartec Agile X IS Series

Summary of Contents for Bartec Agile X IS Series

  • Page 1 FAQ - Frequently Asked Questions 10.1" Industry Tablet PC PXE boot on Agile X IS series  Required hardware  BIOS setup Relevant for  Agile X IS Status: November 2020 Reservation: Technical data subject to change without notice. Changes, errors and misprints may not be used as a basis for any claim for damages.

  • Page 3: Table Of Contents

    Agile X IS series Table of content FAQ: PXE boot 1.  Information of this FAQ ........................2  1.1  Reference documents ...................... 2  2.  About PXE ............................. 4  3.  Notes to PXE ............................4  4.  Required software and hardware ......................4 ...

  • Page 4: Information Of This Faq

    Agile X IS series FAQ: PXE boot Information of this FAQ Read carefully before commissioning the device. The FAQ is an additional description to the available user manual and part of the device. The FAQ is directed at all persons who are entrusted with handling the device.
  • Page 5 Agile X IS series FAQ: PXE boot Document BARTEC Explanation User Manual of: It contains:   Agile X IS All essential information for the user to make full use of the device. This manual includes a description of the system functions and capabilities, contingencies and modes of operation, and step-by-step procedures for system access and use.

  • Page 6: About Pxe

    First, check that your PXE server supports UEFI or LEGACY or both. This information is required for correct setup. The settings on Agile X IS series and your PXE server must be identical that PXE boot can work correct. Required software and hardware Agile X IS series only support Ethernet and must use one of the following accessories to setup and proceed PXE.

  • Page 7: Required Hardware

    Use of USB Hub is not allowed! WARNING Improper use of USB port on Agile X IS can damage the device. Only use the BARTEC USB stick (Type 17-A1Z0-0027) for data exchange via the  USB port. Don’t connect keyboard or mouse directly to the Ex i USB port.
  • Page 8 Agile X IS series FAQ: PXE boot Not allowed Wrong connection via USB hub on Ex i USB port Correct connection via docking station Subject to technical changes. 6/11 10/2020...

  • Page 9: Pxe - Bios Setup

    Connect external keyboard to the Agile X IS via docking station. Start or restart the device and enter BIOS. Press “DEL”/”ENTF” key in start screen with BARTEC logo. Check that BIOS version is v1.08 or later. (picture shows example for BIOS version v1.11) Go to “Advanced”...
  • Page 10 Agile X IS series FAQ: PXE boot Go to “OS Selection” and select your operating system. Windows 8.X => for Windows 8.1 or Windows 10 operating system Go to “Advanced” and select “Network Stack Configuration” Subject to technical changes. 8/11...
  • Page 11 Agile X IS series FAQ: PXE boot Enable “Network Stack” and make your settings compliant to your server. Default: Network Stack = Enabled IPv4 PXE Support = Enabled IPv6 PXE Support = Enabled Go to “Advanced” and select “CSM Configuration”...
  • Page 12 Agile X IS series FAQ: PXE boot Setup “CSM Configuration” to “Disabled”. Go to “Boot” and select: “Boot mode select” according to your server to “UEFI” Boot option to “USB LAN” Subject to technical changes. 10/11 10/2020...
  • Page 13 Agile X IS series FAQ: PXE boot Go to “Save & Exit”. Select “Save Changes and Exit” to leave BIOS. Subject to technical changes. Subject to technical changes. 11/11 09/2020 10/2020...
