Wali CS303 Installation Manual

INSTALLATION MANUAL
support@walielectric.com
CS303
IMPORTANT:
Ensure you have received all
parts against the component
checklist prior to installing. If
any parts are missing or faulty,
call the franchiser for a replacement.
wall plate(x2)
STEP 1A WOOD STUD WALL MOUNTING:
●Use a stud finder to locate the edges of the studs. Use of an
edge-to-edge stud finder is highly recommended.
Based on their edges, draw a vertical line down each
stud's center.
●Place wall plate on wall as a template. And mark the
center of the four mounting holes. Make sure that the
mounting holes are on the centerline of stud.
A
●Drill four 1/8"(3mm) dia. Holes 1.2"(30mm) deep.
Secure it using four screws(A), make sure that the
wall plate is level as shown in fig.1.1.
fig.1.1

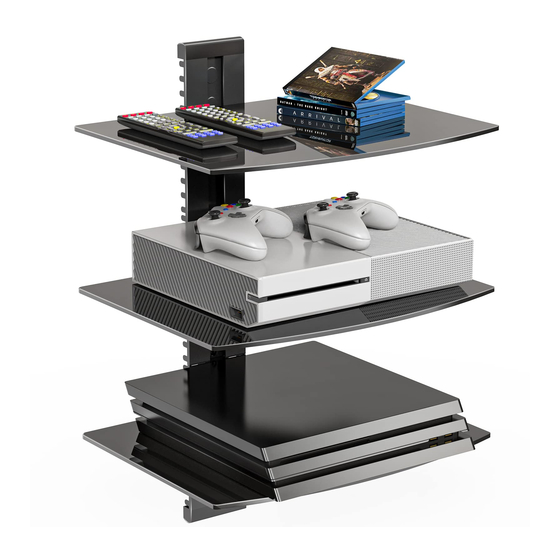

DVD WALL MOUNT
17.6 lbs.(8 kg) including
B S
glass shelf(x3)
glass holder(x3)
②
①
decorative cover(x4)
④
③
STEP 1B SOLID BRICK AND CONCRETE BLOCK MOUNTING:
●Use the wall plate as a template to mark four holes locations on the wall.
H
F
●Pre-drill these holes with a 8mm masonry bit and depth is at least 50mm
stud Insert a Concrete Anchor(B) into each of these holes. Attach the wall plate
to the wall using four screws(A), make sure that the wall plate is level as
shown in fig.1.2.
17.6 lbs.
(8 kg)
ST5.5x50(x6) concrete anchor(x6)
A B
plastic bush(x3)
3mm allen key(x1)
G
F
.
B
A
fig.1.2
WARNING
！
●Do not begin the installation of the product before you have read amd understood the
instructions and warnings contained in this installation sheet. if you have any question
regarding any of the instruction or warning, please contact your local distributor
●Please refer to installation guide recommendation for required distance from wall to
avoid risk of property damage.
●This product should only be installed by someone of good mechanical aptitude,with
experience and basic building, and fully understands.
●Make sure that the supporting surface will safely support the combined load of
the equipment and all attached hardware and components.
●If mounting to wood wall studs, make sure that mounting screws are anchored
into the center of the studs. Use of an "edge to edge" stud finder is highly recommended.
●Never exceed the maximum load capacity.
●Always use an assistant or mechanical lifting equipment to safely lift and position
equipment.
●Tighten screws firmly, but do not over tingten. Over tightening can damage the
items, greatly reducing their holding power.
●This product intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.
M5x14(x9) plastic cover(x6)
connect piece(x3)
C E
D
M5x6(x1)
H
STEP 2 ASSEMBLING THE GLASS HOLDER
●Attach the connect piece to the glass holder using two screws and space reserved
3mm as shown in fig.2.1
●Use the same method to assemble the other glass holder
Tools required
●Phillips Head Screw driver
(200mm length exclude the handle)
●Electric drill and 8mm masonry bit for
concrete wall installation
●Marking Pen
●Hammer
fig.2.1
