Luverne 416088 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy
This is the second of two manuals This is the second of two manuals
required to complete this installation. required to complete this installation.
The first manual is included with The first manual is included with
your mounting brackets. your mounting brackets.

Parts List

1 Driver / left
SlimGrip ™ running board
1 Passenger / right
SlimGrip running board
™
2 Right end cap
2 Left end cap
8 Self-piercing phillips screw
8 Mounting plate
16 Hex bolt, M8
16 Flat washer, M8
16 Serrated flange nut, M8
Attachment hardware is supplied with the
mounting brackets. Hardware quantities will
vary depending on the vehicle application.

Tools Required

Ratchet set Torque wrench

Torque Specifications

M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
LUVERNETRUCK.COM
•

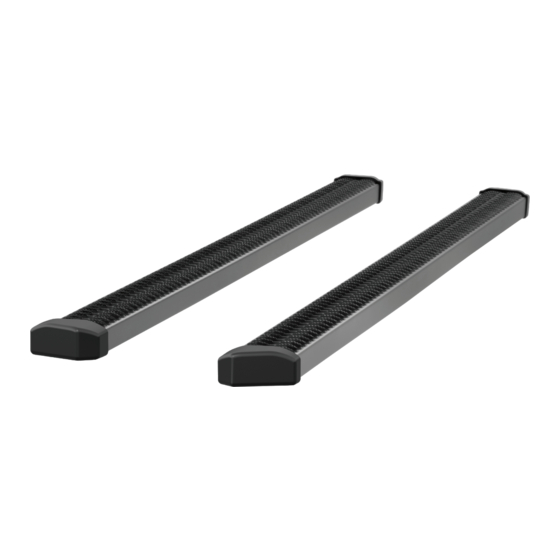

Product Photo

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.

Product Registration

CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
NEED ASSISTANCE? • 877.287.8634 • 416088-INS-RB • PAGE 1
