INSTALLATION MANUAL
This is the first of two manuals
required to complete this installation.
The second manual is included with
your side bars / running boards.
Level of Difficulty
Easy
Parts List
1
Driver / left running board*
1
Passenger / right running board*
4
Mounting bracket, universal
2
Mounting bracket, center
1
W2W mounting bracket, LH
1
W2W mounting bracket, RH
1
W2W support bracket, LH
1
W2W support bracket, RH
18
Flat washer, M8
18
Lock washer, M8
18
Hex nut, M8
4
Flat washer, 3/8", black
4
Hex screw, 3/8" x 7/8", black
4
Hex nut, 3/8", black
2
Stud, 3/16" x 3"
2
Rubber washer, 3/8" x 1-3/4"
6
Flange nut, 3/8"
2
Flat washer, 3/8"
2
Hex nut, 5/8"
2
Lock washer, 5/8"
2
Flat washer, 5/8"
2
Carriage bolt, 5/8"x 1-1/2"
* Running boards sold separately
Tools Required
Ratchet
Socket set
Torque wrench
Level
Torque Specifications
3/8 bolt
16 ft-lbs.
5/8 bolt
100 ft-lbs.
M8 bolt
7 ft-lbs.
Use above torque setting unless otherwise noted
LUVERNETRUCK.COM
•

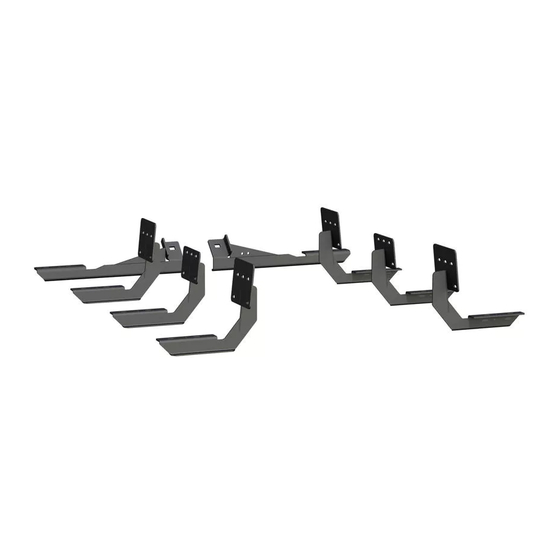

Product Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
NEED ASSISTANCE?
•
877.287.8634
•
400940-INS-RA
•
PAGE 1
Front
400940
Rear
Advertisement
Table of Contents
Related Manuals for Luverne 400940
Summary of Contents for Luverne 400940

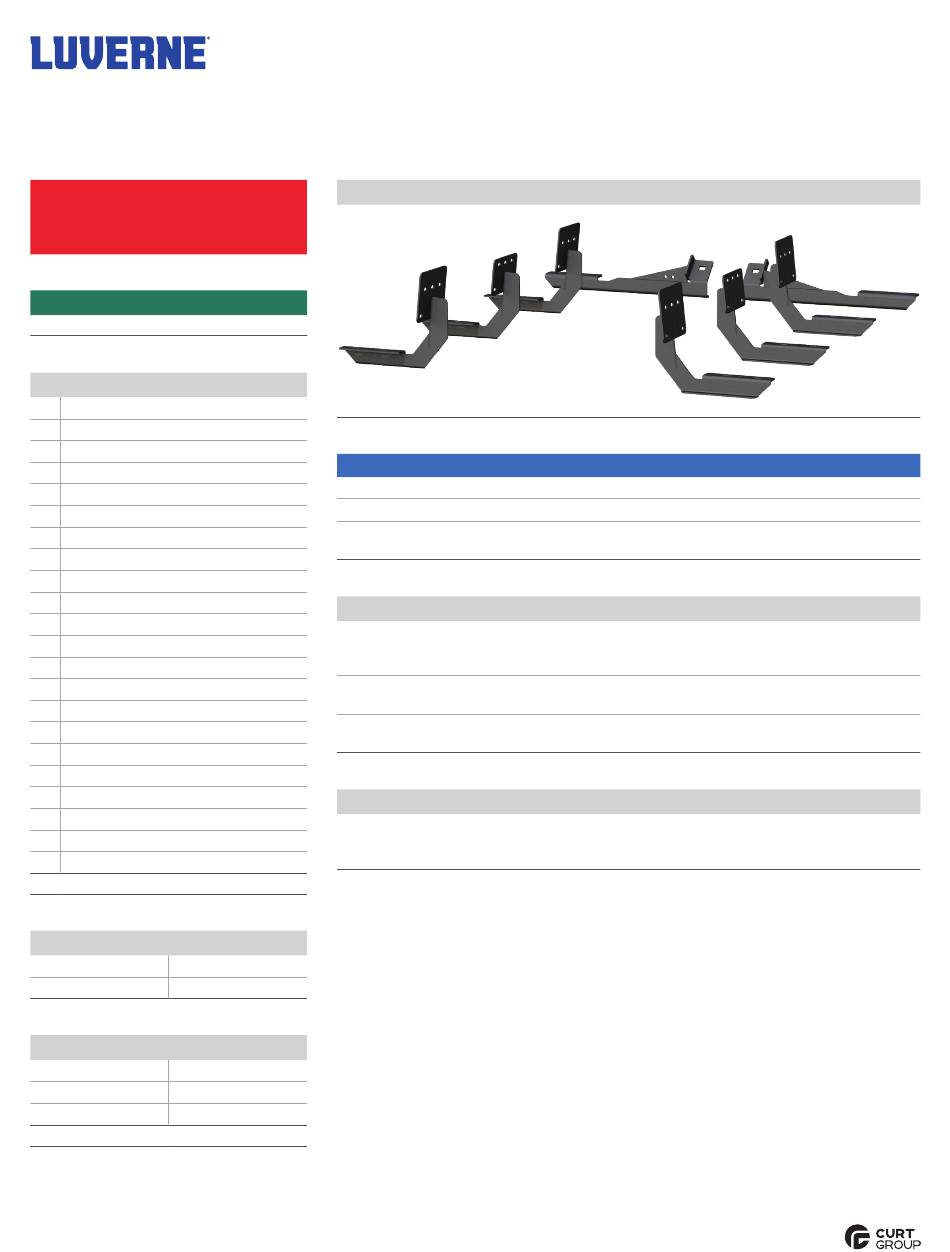

- Page 1 INSTALLATION MANUAL 400940 This is the first of two manuals Product Photo required to complete this installation. The second manual is included with your side bars / running boards. Rear Level of Difficulty Easy Parts List Front Driver / left running board*...
- Page 2 At the rear mounting location, Insert the 5/8" carriage bolt from the inside of the frame and secure the W2W bracket using the 5/8" hardware. Snug the hardware, but do not fully tighten. LUVERNETRUCK.COM • NEED ASSISTANCE? • 877.287.8634 • 400940-INS-RA • PAGE 2...
- Page 3 Repeat Steps 3 through 5 on the passenger side of the vehicle. NOTICE To complete the installation, refer to the manual included with your running boards / side steps. LUVERNETRUCK.COM • NEED ASSISTANCE? • 877.287.8634 • 400940-INS-RA • PAGE 3...
