3.2 Insert Probe (Option)

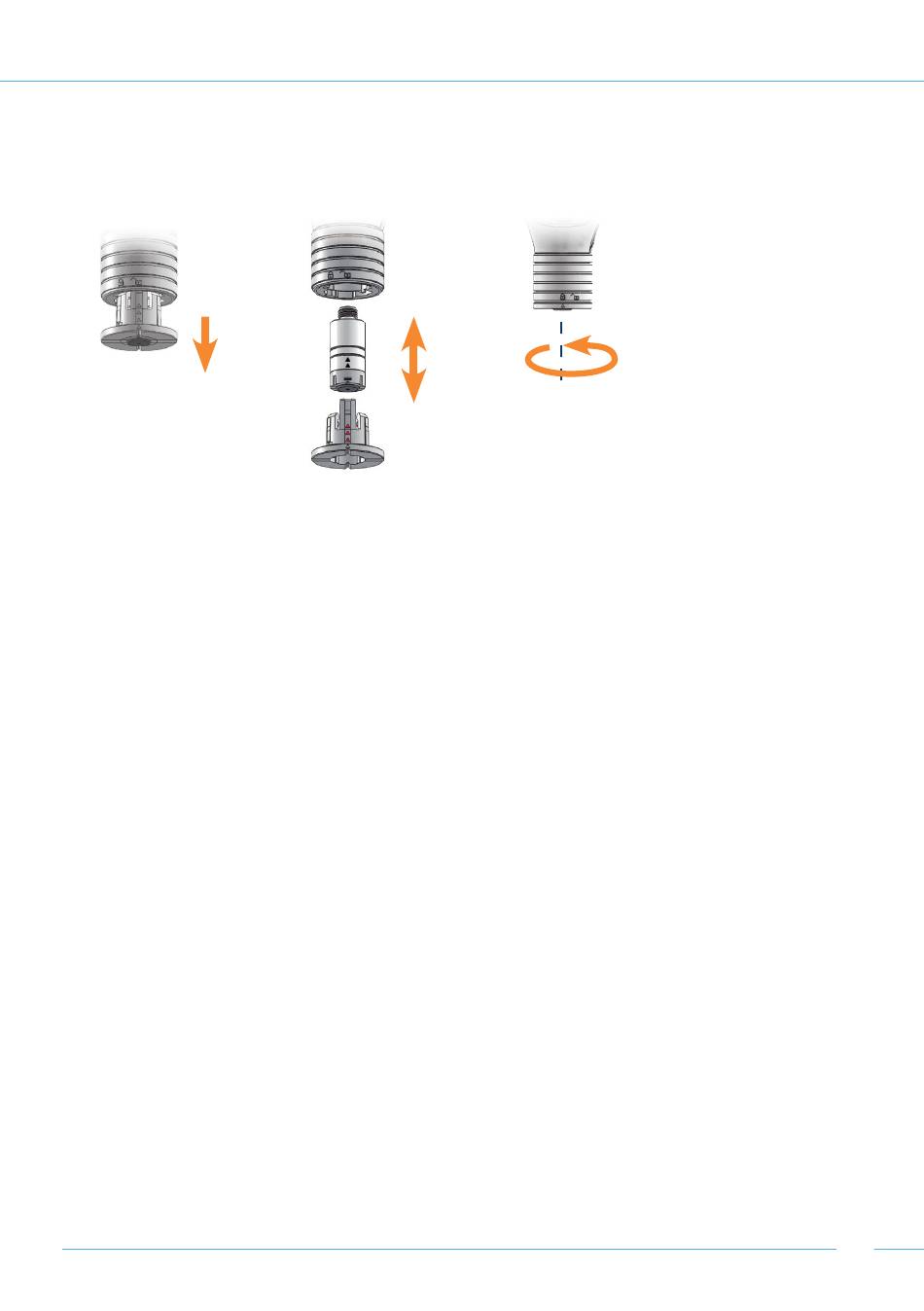

On devices with replaceable probe (grey probe latch), insert the probe as follows:
Remove the probe holder or probe cable from the probe input
•
To unlock, turn the probe input anti-clockwise. The arrow on the probe holder shows the
open padlock on the probe input.
•
Pull the probe holder from the input.
Insert the probe in the probe holder
•
Push the probe into the probe holder using a slight turn/push movement. The arrow on the
probe and on the probe holder must align. When aligned correctly, all 4 lugs will lock into the
respective groove on the probe.
•
Reinsert the probe holder or plug the probe into the cable and screw it in place.
•
To lock the probe put it in place, turn clockwise until it locks. The arrow on the probe holder
points at the locked padlock on the probe input.
