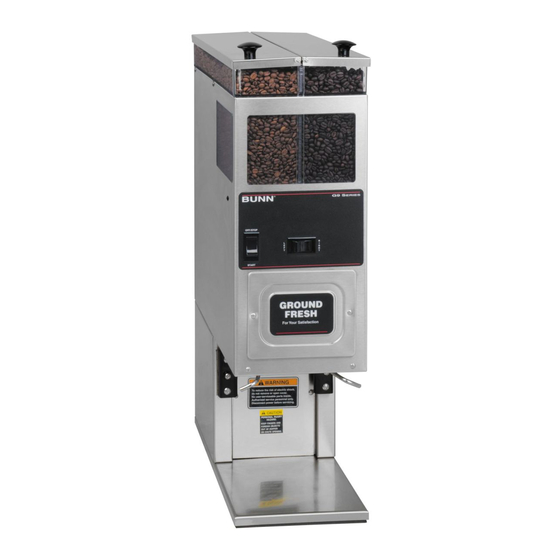

Bunn G9 HD Installation And Operating Manual
Bunn g9 hd, g9t hd operating & service manual
Hide thumbs
Also See for G9 HD:
- Operating & service manual (16 pages) ,
- Illustrated parts catalog (16 pages) ,
- Operating & service manual (16 pages)
Advertisement

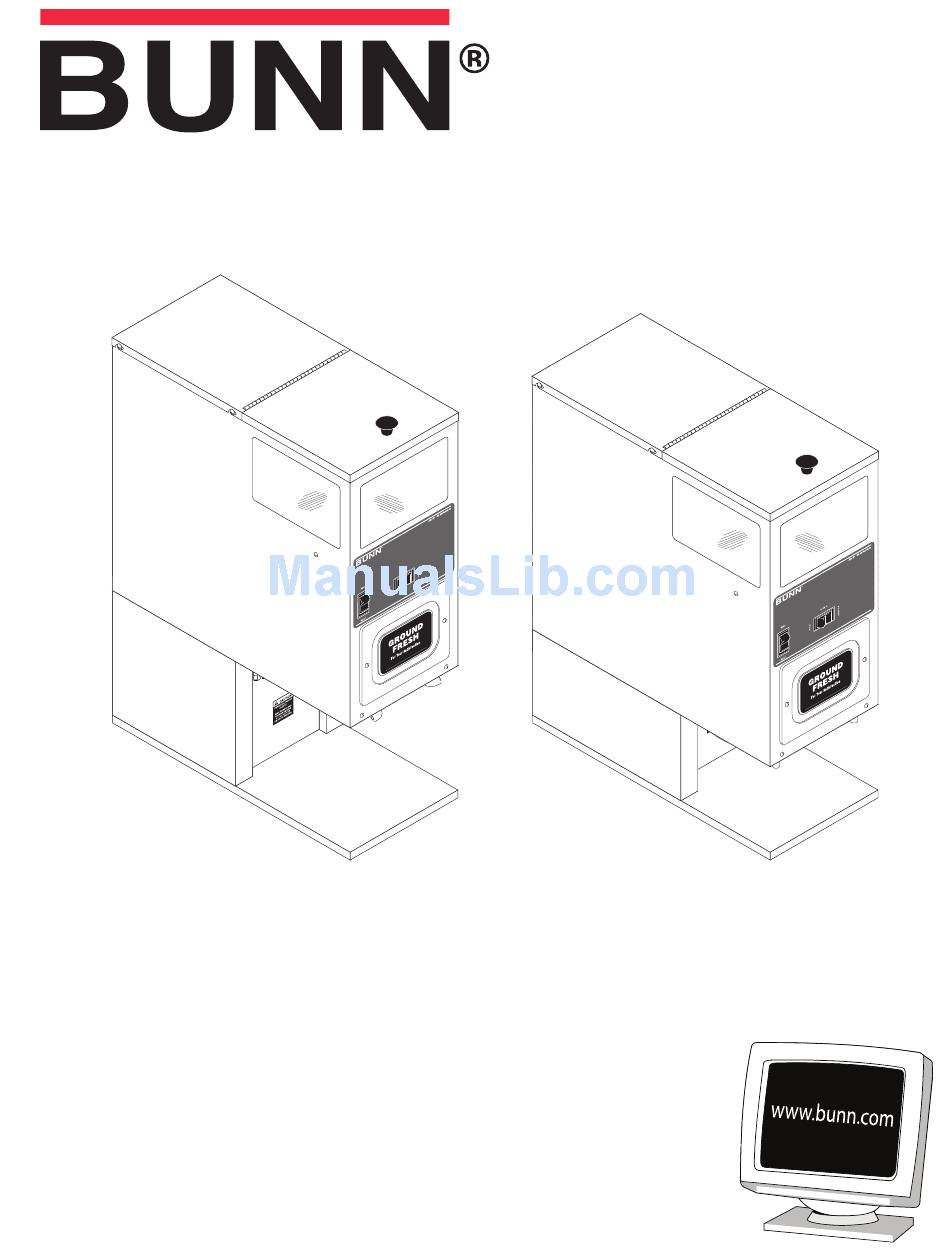

G9 HD
G9T HD
INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
10171.0000S 04/12 © 1986 Bunn-O-Matic Corporation
Advertisement
Table of Contents
Related Manuals for Bunn G9 HD
Summary of Contents for Bunn G9 HD
- Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
- Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
- Page 3 FAILURE TO COMPLY RISKS EQUIPMENT DAMAGE, FIRE, OR SHOCK HAZARD READ THE ENTIRE OPERATING MANUAL INCLUDING THE LIMIT OF WARRANTY AND LIABILITY BEFORE BUYING OR USING THIS PRODUCT 20545-0000D 01/04 © 1990 Bunn-O-Matic Corporation #20545.0000 00824.0002 Page 3 10171 040612...
- Page 4 ELECTRICAL REQUIREMENTS This grinder has an attached cordset and requires 2-wire, grounded service rated 120 volts ac, 15 amp, single phase, 60 Hz or 2 wire, grounded service rated 220-240 volts ac, 4.7 amp, single phase, 50 Hz. CE REQUIREMENTS •...
- Page 5 Corporation recommends that preventive maintenance be performed at regular intervals. Maintenance ® should be performed by a qualified service technician. For Technical Service, contact Bunn-O-Matic 1-800-286-6070. NOTE: Replacement parts or service caused by failure to perform required maintenance is not covered by warranty.
- Page 6 COFFEE GRINDING P1301 STEP 1 STEP 2 Visually inspect the hopper for an ample supply of whole bean coffee. Place a paper filter into the brew funnel. The filter must not be folded-over or tilted to one side. Insert the funnel into the funnel rails and push until it stops. Momentarily place the switch in the “START”...
- Page 7 ADJUSTMENTS (cont.) Burr Adjustment (cont.) The following settings approximately correspond to the CBC recognized grinds. All are referenced from the arrow position noted in step 6. FINE GRIND: Rotate the adjusting screw 7 hash marks in a counterclockwise direction. DRIP GRIND: Rotate the adjusting screw 8 hash marks in a counterclockwise direction. REGULAR (COARSE) GRIND: Rotate the adjusting screw 12 hash marks in a counterclockwise direction.
