INSTALLATION & OPERATING GUIDE
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
33736.0000L 03/12 ©2001 Bunn-O-Matic Corporation
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601

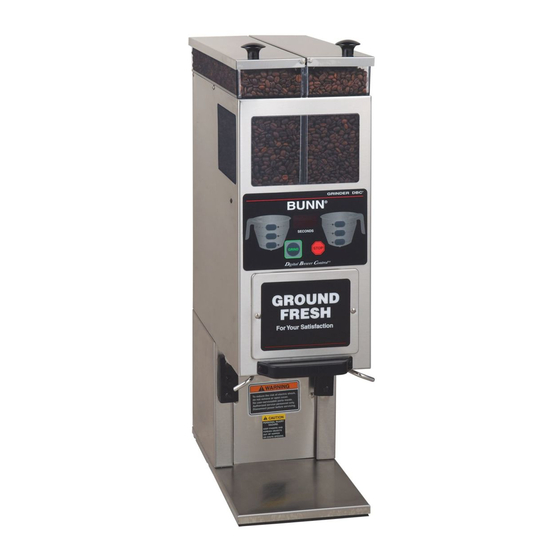

G9-2T DBC
for use
with Smart Funnel
N
I O
U T
Y
C A
U R
IN J
A L
.
O N
R D
D
R S
Z A
A N
P E
H A
R S
T S
G E
E C
B J
F IN
R
E P
N O
P E
G .
O P
K E
IG
N IN
R E
F H
P E
F O
T O
E O
O U
U T
C H
O R
FAX: (217) 529-6644
®
Advertisement
Table of Contents
Related Manuals for Bunn G9-2T DB
Summary of Contents for Bunn G9-2T DB
- Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
- Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
-
Page 3: Table Of Contents
10 feet if 18-gage 3-conductor wire. FAILURE TO COMPLY RISKS EQUIPMENT DAMAGE, FIRE, OR SHOCK HAZARD READ THE ENTIRE OPERATING MANUAL INCLUDING THE LIMIT OF WARRANTY AND LIABILITY BEFORE BUYING OR USING THIS PRODUCT 20545-0000D 01/04 © 1990 Bunn-O-Matic Corporation 20545.0000 00824.0002 33736 072310... -
Page 4: Electrical Requirements
This grinder has an attached cordset and requires: 2-wire, grounded service rated 120 volts ac, 9 amp, single phase, 60 Hz for 120 volt models, 2-wire, grounded service rated 230 volts ac, 4 amp, single phase, 50 Hz for 230 volt models, 2-wire, grounded service rated 100 volts ac, 9 amp, single phase, 50 Hz for 100 volt models. -
Page 5: Operating Controls
Grind Pad (a) Pressing the GRIND button initiates a timed grind cycle. Stop Pad (b) Pressing the STOP button ends the operation of the grinder. ® PAD (c) Pressing the ® pad allows programming access (see page 6). Hopper/Batch Selector Pads (d) These pads are located on the funnel depictions on each side of the grinder with a total of 6 pads. -
Page 6: Cleaning
Corporation recommends that preventive maintenance be performed at regular intervals. Maintenance ® should be performed by a qualified service technician. For Technical Service, contact Bunn-O-Matic 1-800-286-6070. NOTE: Replacement parts or service caused by failure to perform required maintenance is not covered by warranty. -
Page 7: Adjustments
4. Repeat step 2 to enter the name for the coffee being used on this side. 5. To exit the setup mode, press and release the ® button anytime during this procedure. The ® button is a hidden programming pad located at the upper right corner of the BUNN ADJUSTMENTS... - Page 8 SELECTING COFFEE NAMES (Continued) Entering a coffee name using a RECIPE CARD. 1. Press the STOP button and place the chip portion of the card under the sensor coil on the front of the grinder. 2. After a short pause, the display will show 3 “dashes”. 3.
-
Page 9: Timer Adjustment (Control Board)
TIMER ADJUSTMENT (CONTROL BOARD) Three different batch settings are selectable for each hopper. Each batch is independently adjustable by set- ting the length of time a slide gate opens to allow beans to drop into the grinding chamber. A second time setting for each batch determines how long the grind motor continues to run after the slide gate closes.
