Turn down your PA when making all connections
• The latest version of VoiceSupport is available free from www.tc-helicon.com/voicesupport
• The USB connection does not provide power to the unit

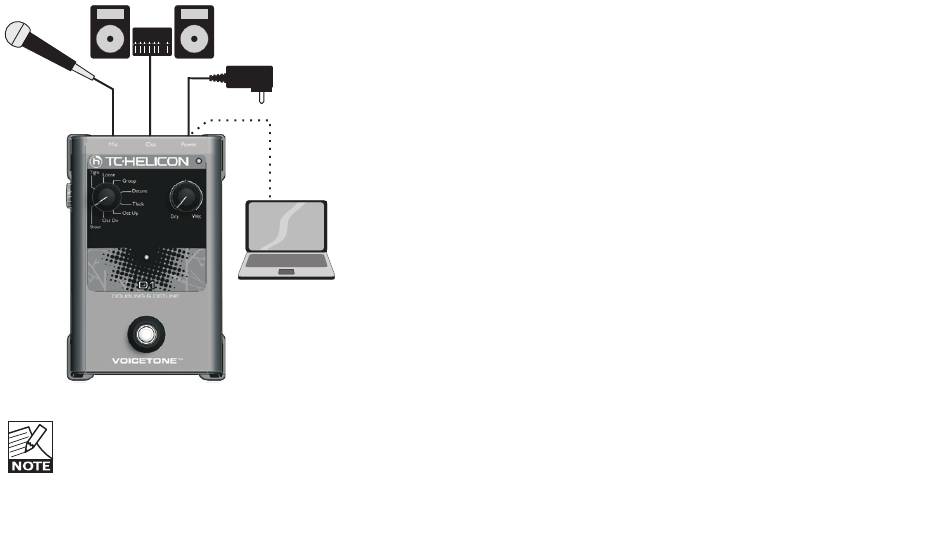

Connecting
MIC jack - Connect your mic here using a balanced XLR cable.
Phantom power is always on.
OUT jack - Connect to your PA mixer, another VoiceTone pedal
or powered speaker.
Power in - Connect the supplied 12VDC power supply.
USB - Connect to a computer running the TC-Helicon
VoiceSupport application for registration, latest version and tips.
