Summary of Contents for TC-Helicon VoiceLive Touch2
- Page 1 INPUT Edit Setup uick uide Store Home Loop Hold for Genre Effects Voices Hold for Talk...
- Page 2 Important Safety Instructions Caution Mportant safety instructions You are cautioned that any change or modifications not expressly ap- 1. Read these instructions. proved in this manual could void your warranty. 2. Keep these instructions. 3. Heed all warnings. eMc/eMi 4. Follow all instructions. This equipment has been tested and found to comply with the limits for 5.
-
Page 3: Table Of Contents
Connections ..........3 download from the TC-Helicon website. -
Page 4: Mounting To A Mic Stand
Mounting to a mic stand ountinG to a Mic stand Mic stand setup 1. With no cables attached to the product, grasp it on both sides so the printed top faces you and is approximately level. 2. Slide VoiceLive Touch 2 to the left so that the upper shaft of your mic stand is captured by the lower slot on the product (see Fig- ure 1). -
Page 5: The Voicesupport Application
Using VoiceSupport • Turn the Mic Gain control fully left. VoiceSupport is your way of getting the most from your TC-Helicon • Connect a Microphone to the Mic In jack. product, as well as letting your product grow with firmware updates that •... -
Page 6: Connections
1. Mic Input: Balanced, low impedance XLR input for your mic. 10. Footswitch Input: Allows connection of a TC-Helicon Switch 3 2. XLR Output: Will produce a mono signal. footswitch. This footswitch can be set to control several useful func- 3. -

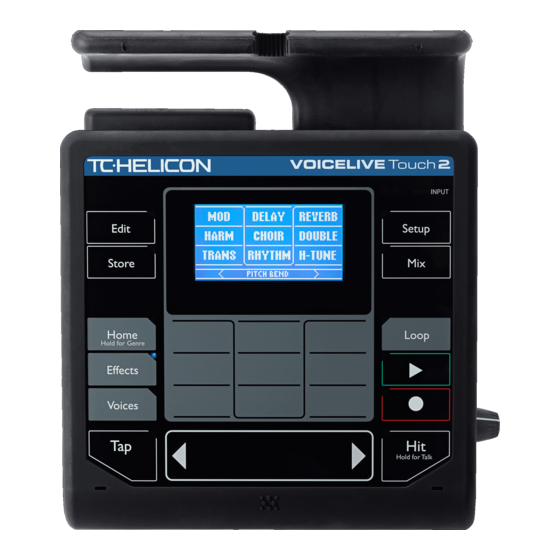

Page 7: Front Panel Overview
Front panel sinG the front panel buttons All buttons require only a soft tap to engage. Tap the mode buttons (Edit, Store, Effects, Voices, Setup, Mix, Loop) to display settings that can be changed. INPUT Tap the nine buttons in the center area (the Matrix) to select menus or Edit Setup settings related to the current mode. -
Page 8: Using The Slider Fx Bar
Front panel fX b 5. Voices: Tap the Voices button to display the Harmony voice sinG the lider intervals for the current preset and the HARMONY LEVEL Slider Using the Slider FX Bar: swiping FX assignment. To hear the voices created by the VoiceLive Touch 2, the HARM (Harmony) effect must be active. -
Page 9: Using The Arrow Buttons
Working with Presets and Favorites • In Home mode (when the Home button is selected/lit), the Slider electinG and auditioninG presets FX Bar will scroll through presets. Ensure the Home button is lit. Home is the main operational mode. You •... -
Page 10: Effects And Voices
Effects, Voices and basic editing Note that Harmony requires a musical reference from either: ffects and oices Tap the Effects and Voices buttons to display menus where you can a) guitar chords from a guitar connected to the Guitar In, modify the current preset. -
Page 11: Using The Harmony And Hardtune Effects
Harmony and Hardtune effects With acoustic instruments – using Roomsense sinG the arMony and ardtune effects The VoiceLive Touch 2’s Roomsense mics can pick up chords from To make Harmony and Hardtune effects relate correctly to your music, a nearby acoustic instrument and use them to guide Harmony and you’ll need a musical accompaniment –... -
Page 12: Looping
Setup Looping oopinG dVanced loop function tutorial • Tap the Loop button once or twice to display the loop functions Basic looping in Home mode Loop menu (Erase, Clear etc). • Find a preset you like. • Tap the Matrix button associated to MET: so it shows “MET:ON.” INPUT •... -
Page 13: Slider Fx Bar Effects
Slider FX Bar effects fX b lider ar effects Using the Slider FX Bar effects In Effects and Loop modes, the Slider FX Bar can be used to control an effect. The name of the effect is shown at the bottom of the display. Slide your finger, drag and stop or tap at any point to experiment with the current effect. -
Page 14: Guitar Effects
If you have connected a guitar to the GUITAR IN, subtle Reverb and • TC-Helicon MP-75 microphone with Mic Control Chorus effects are applied to the guitar signal by default. Compression • Sennheiser e 835 FX microphone with Mic Control and EQ are also available for the guitar input. -
Page 15: Troubleshooting
Troubleshooting Using the Switch 3 footswitch roubleshootinG • Connect the Switch 3 to the FOOTSWITCH jack. “Where can I find support for this product?” • Tap each footswitch in turn to see what the default assignments are. Point your web browser The default assignments of the footswitches are (from left to right): “Why am I hearing feedback?”... - Page 16 “I can’t see any INPUT indication when I sing into my mic.” cerned) are the chord root and the third – so make sure these notes are clearly voiced. Your guitar can be tuned to alternate tunings as long as Make sure that…...
-
Page 17: Specifications
Specifications MIDI: In 5 Pin DIN pecifications Pedal: 1/4” TRS phone jack Analog inputs Power Connectors: Mic: Balanced XLR, Guitar: 1/4” phone jack, Aux: 1/8” External Power Supply: 100 to 240 VAC, stereo mini jack 50 to 60 Hz (auto-select) Input Impedance: Balanced/Unbalanced Mic.: 3.08/1.54 kOhm Power Consumption:...
