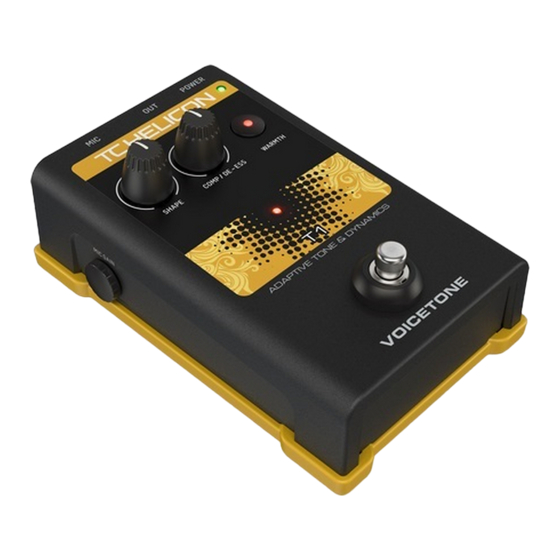

- Page 1 VoiceTone T1 USER’S MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions Warning! • To reduce the risk of fire or electrical shock, do not 1 Read these instructions. expose this equipment to dripping or splashing and 2 Keep these instructions. ensure that no objects filled with liquids, such as vases, 3 Heed all warnings. are placed on the equipment. 4 Follow all instructions. - Page 3 These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can radiate radio frequency energy and – if not installed and used in accordance with the instructions – may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
-
Page 4: (En) Introduction

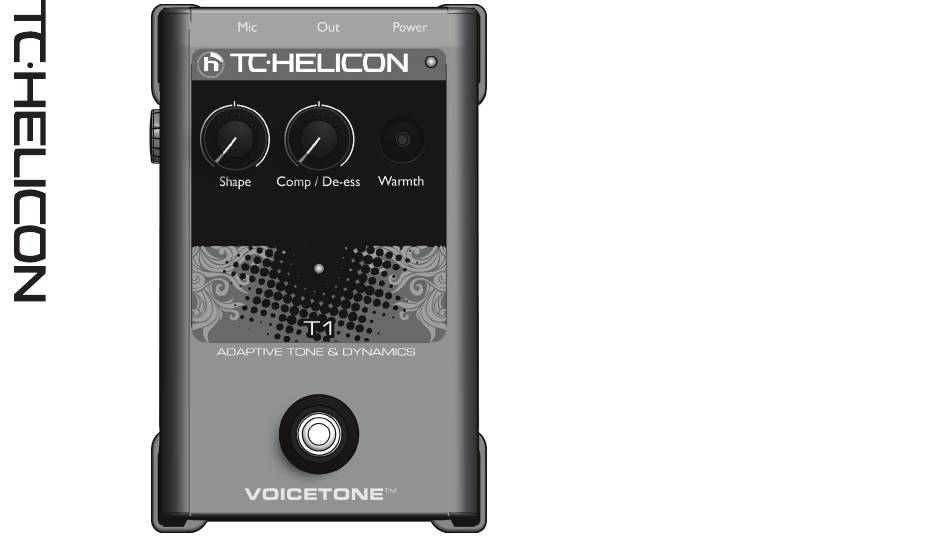

(EN) Introduction VoiceTone T1 polishes your live vocal sound with studio-grade dynamics and EQ processors Like having a personal sound engineer with you at all your performances, VoiceTone T1 automatically reacts to your voice and applies studio quality dynamics and EQ to bring out your most exciting vocal tone. Now you can put a recorded gloss on your live singing without the setup and adjustment of complex equipment normally required to achieve “that sound”. - Page 5 1 - Effect on/off footswitch 2 - Effect active LED indicator 3 - Dynamics amount control 4 - Adaptive Shape EQ amount control 5 - MIC GAIN control for input level 6 - Balanced XLR mic input 7 - Balanced XLR mono output 8 - Power in 9 - USB connector to computer 10 - Input level LED;...
- Page 6 Connecting MIC jack - Connect your mic here using a balanced XLR cable. Phantom power is always on. OUT jack - Connect to your PA mixer, another VoiceTone pedal or powered speaker. Power in - Connect the supplied 12VDC power supply. USB - Connect to a computer running the TC-Helicon VoiceSupport application for registration, latest version and tips. • Turn down your PA when making all connections • The latest version of VoiceSupport is available free from www.tc-helicon.com/voicesupport • The USB connection does not provide power to the unit...
-
Page 7: Phantom Power
First Setup and Use 1. Turn down your PA’s master volume and set the desired input channel EQ to flat (EQ=off). 2. Connect your mic and PA as shown in the diagram first, then plug in the AC adaptor. For live performance, a USB connection to a computer is not required. 3. Set the Shape and Comp / De-ess controls to the center notch. Turn Warmth off if is isn’t already. 4. Sing into your mic while adjusting the MIC GAIN control so that the input level LED flashes green. Brief flashes of red on the LED on your loudest singing are ok. 5. Ensure that the effect is on (center LED is lit). 6. Sing while turning up your PA volume to a comfortable level. VoiceTone T1 will take a moment to adjust to the tone of your voice. It constantly adjusts as you sing. You will notice your voice is pleasantly brighter and smoother. Phantom Power There is no switch to enable phantom power on the VoiceTone singles. Phantom power is available when the product is powered. -
Page 8: Effect Descriptions
Effect Descriptions Shape - Controls multiple bands of EQ (equalization or tone). Adds brightness while removing bass frequencies that contribute to muddy sound in your specific voice. Turning the Shape control past the notch setting adds more brightness. Comp / De-ess - Combines these two pro dynamics effects in one control. Compression reduces vocal peaks that can be uncomfortable for listeners especially at loud PA volumes. VoiceTone T1 automatically gives you the right amount of gentle compression whether you’re singing right on the mic or further away. -
Page 9: The Voicesupport Application
The VoiceSupport Application VoiceSupport is your way of getting the most from your TC-Helicon product, as well as letting your product grow with firmware updates. VoiceSupport includes: • Access to firmware updates and new features • Videos, artist profiles, tips & tricks • Registration of your product To access the VoiceSupport application: 1. Download VoiceSupport from www.tc-helicon.com/voicesupport. 2. Install VoiceSupport on your computer. 3. C onnect your product via USB to your computer. 4. Run VoiceSupport. 5. Read the news, click on tabs and browse the features of the application. - Page 10 Using the Mic Control Feature Mic Control allows you to turn effects on and off from the optional TC-Helicon MP-75 microphone. Push the MIC CONTROL switch in to allow remote on/off control on any or all pedals in a chain. When Mic Control is not desired, ensure the switch is out. Using multiple pedals requires the control signal pass through feature to be enabled on all but the last pedal. To enable or disable this feature, hold the effect footswitch and the switch on the mic for 3 seconds. Tips for Avoiding Feedback • Ensure your monitor and/or PA speakers don’t aim directly at the front of your mic • Sing close to the mic, even touching the grill with your lips •...
- Page 11 Can I use the product on an auxiliary send/return? Yes. You will need balanced XLR to TRS cables to do so. Ensure that the MIC GAIN knob is set to minimum to accept the line level signal from your mixer. Will I need a DI box to connect to a mixer? Why is the product turning the effect on and off by itself? This can happen when you have the MIC CONTROL knob pushed in and you are connected to a mixer with “pseudo balanced” outputs. Unless you are using only the specific TC-Helicon mic with the Mic Control feature, the MIC CONTROL knob should be out.
- Page 12 +0/-0.3 dB, 20 Hz to 20 kHz Power Power Supply (Supplied): 12V .4A Power Consumption: 5.6W Requirements Operating Temperature: 32°F to 122°F(0°C to 50°C) Storage Temperature: -22°F to 167°F(-30°C to 70°C) Humidity Max.: 90 % non-condensing Size & Weight Dimensions: 5.4” x 3.5” x 2.3” (140 x 90 x 60) Weight: 0.92 lb. (420 g) Warranty See www.tc-helicon.com\support for warranty information Due to continuous development, these specifications are subject to change without notice...
