Carry'Box Kid Instruction Manual
April 2021
Compatible with the AddBike & AddBike+
This manual will teach you how to assemble/disassemble and use the
Carry'Dog module correctly. It is imperative you read this manual entirely to
keep your bike and the Carry'Dog in good condition.
Please keep this document.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Carry'Box Kid and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AddBike Carry'Box Kid

Summary of Contents for AddBike Carry'Box Kid

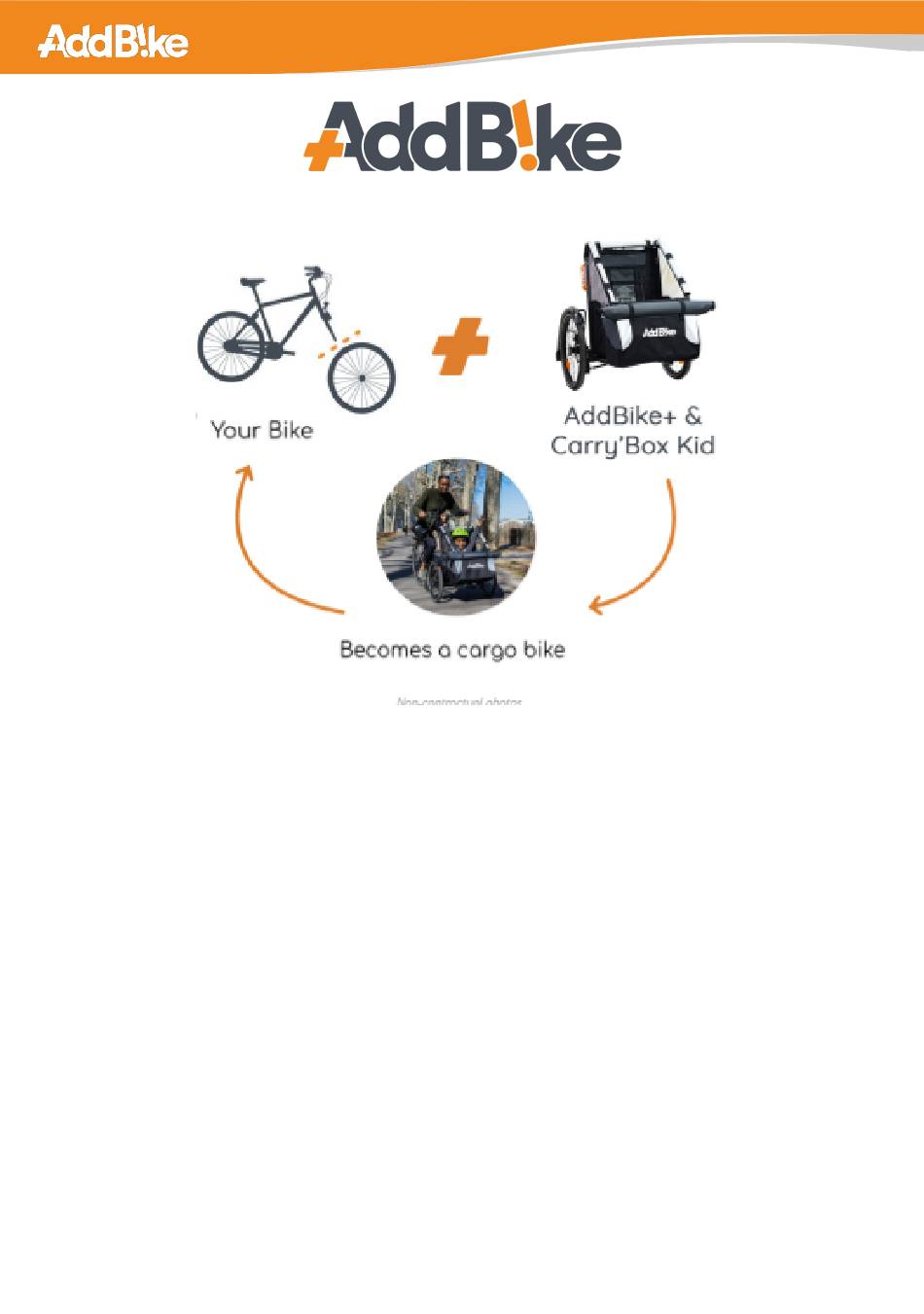

  • Page 1 Carry’Box Kid Instruction Manual April 2021 Compatible with the AddBike & AddBike+ This manual will teach you how to assemble/disassemble and use the Carry’Dog module correctly. It is imperative you read this manual entirely to keep your bike and the Carry’Dog in good condition.
  • Page 2 The AddBike+ is a new concept that replaces your bike’s front wheel in order to turn into a handy three-wheeled bike, perfect for moving around in big cities. It consists of a two-wheeled base that allows you to transport light loads and attach different modules specifically designed for the AddBike+.

  • Page 3: Table Of Contents

    Summary General warning Kid module Glossary Content on the Carry’Box Kid box Installing the Carry’Box Kid module on the AddBike Using the Carry'Box Kid module Uninstalling the Carry ’Box Kid module Cleaning Warranty Assistance in case of problem...

  • Page 4: General Warning

    AddBike SPA is not responsible or liable in case of any direct, indirect and incidental damages arising out of the misuse of its products. The AddBike SPA disclaims all liability in case of non-compliance with the instructions of the User's and Installation Guide of the Carry’Box Kid.
  • Page 5 2. Carry’Box Kid Glossary Do not remove the foam covering the 7 tubes! The foams not only protect the tubes during transport but are also essential for use.
  • Page 6 Illustration 2 – The Carry’Box Kid textile part glossary...

  • Page 7: Content On The Carry'box Kid Box

    The Carry’Box Kid module must be installed and uninstalled exactly as illustrated in this guide. Improper installation can lead to serious injury. Install the Carry’Box Kid module on your AddBike+ only when the Metal Frame (ill. 2) is properly installed on your bike. ...
  • Page 8 Illustration 5 – Screws to remove from the AddBike+ ● Insert the lower tubes (+ compact slat) in the tubes of the AddBike+ seat, making sure that the screw holes on the seat & compact slat are positioned in line.
  • Page 9 Illustration 6 – Insertion of bottom tubes Put back the screws previously removed on each side of the seat of the AddBike+ ● Illustration 7 – Screws previously removed to fasten back on the seat...
  • Page 10 Position the casing on the AddBike+ as illustrated on illustration 9: ● the front tubes should slide into two elastic straps The rest of the casing is on the backrest of the AddBike+ Figure 9 - Insertion du textile enveloppe...
  • Page 11 At the back of the AddBike+, only attach the lower strap as indicated in illustration 10. ● Lay the rest of the casing on the backrest of the AddBike+, making sure the textile is not prevailing on one side rather than the other.
  • Page 12 Make sure to insert the extremity of the upper tubes in the last black strap before assembling the tubes with the AddBike+ Illustration 12 – Inserting the straps Insert the upper tubes in the holes on the backrest and the lower tubes as shown in ●...
  • Page 13 Put the screws removed earlier back by putting them through the upper tube holes, as ● shown in illustration 14. Illustration 14 – Screws on the backrest At the back of the module, place the upper straps as shown in illustration 15. ●...
  • Page 14 Pull on the fabric on each side while keeping it at the center of the backrest. None of the cables should get stuck in the straps. Fix the hammock backrest to the textile casing backrest, first using the 2 lower hooks then ●...
  • Page 15 To fix the front textile on the top of the front tubes, put the hammock straps on each side of ● the textile, as shown in illustration 18. Illustration 18 – Front textile position ● Then position the crossbar between the two holes at the front of the module between the upper and front tubes, then screw these parts using two BHC M5x30 screws to get to figure Illustration 19 –...
  • Page 16 Tighten the textiel strap after you’ve put it through the two long holes of the AddBike+ seat, ● the textile should then fit perfectly in the Carry’Box kid module, as shown in illustration 20. Illustration 20 – Tightening the textile front straps Assemble the front textile with the Carry’Box Kid casing using the velcro as shown in...
  • Page 17 Use the shoulder pads adjustment strap buckles and the seatbelt in order for your child to ● be as secure as possible (i.e., red circles on illustration 22). You can also move the shoulder pads under the sewn strap to change the height of the anchorage point (i.e. yellow circles on illustration 22).
  • Page 18 If you do not wish to use the Carry’Box kid with the lid, don’t fix it to the textile. You can roll it up and put it at the front of the module using elastic straps (i.e., illustration 24). Illustration 24 – Putting the lid on the front part of the module If you wish to use the Carry’Box kid with the sunshade, you must install it onto the module using the same velcros as for the lid.

  • Page 19: Using The Carry'box Kid Module

    The Carry’Box Kid can carry a child of about 2 to 7 years with a maximum size of 120 cm |47 inches and a maximum weight of 35kg | 77lbs. ● The person carrying a child on the AddBike+ and the Carry’Box Kid must be of adult age and must previously get used to riding the AddBike+. ●...
  • Page 20 The child must never enter or leave the Carry'Box Kid on their own Follow the instructions in this manual for the correct attachment of the safety harness. A child who is not well attached could be seriously injured in the event of a sudden stop or accident.

  • Page 21: Uninstalling The Carry'box Kid Module

    Put the screws back in their original place on the seat and the backrest. ● 7. Cleaning Your Carry'Box Kid can be cleaned simply with a sponge or with clean water. You can remove the fabric parts and especially the foot mat to clean them easily. 8. Warranty The warranty of the Carry'Dog module is valid for 2 years after purchase.
