User and Installation Guide
Carry'Box Module
April 2021
Applicable to the AddBike and the AddBike+
This document indicates the correct practices to be respected during the use and
assembly/disassembly of the Carry'Box module. It is imperative to read this document in its
entirety in order to keep your bike, your AddBike, and your Carry'Box in good working condition
for as long as possible.
Please keep this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carry'Box Module and is the answer not in the manual?

Questions and answers

Related Manuals for AddBike Carry'Box Module

Summary of Contents for AddBike Carry'Box Module

  • Page 1 This document indicates the correct practices to be respected during the use and assembly/disassembly of the Carry’Box module. It is imperative to read this document in its entirety in order to keep your bike, your AddBike, and your Carry’Box in good working condition for as long as possible.

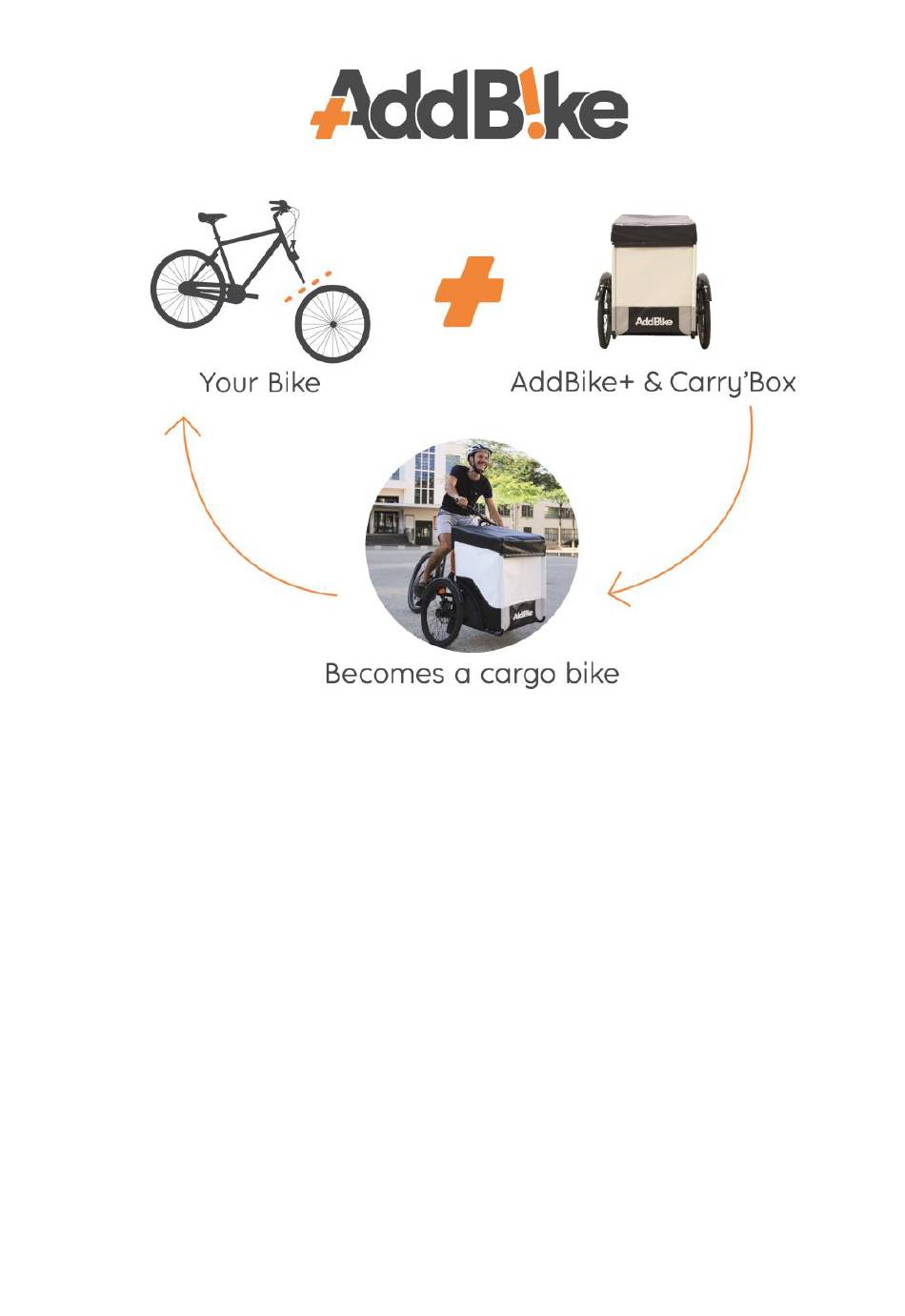

  • Page 2 Welcome to the family of AddBikers! There is no need to invest in expensive and large cargo bicycles. With the AddBike you can quickly and easily turn your own bike into a compact cargo bike.

  • Page 3: Table Of Contents

    Table of Contents General Warning ............................. 4 Lexicon of the Carry’Box module ..................... 5 Contents of the Carry’Box parcel ..................... 6 Installing the Carry’Box ........................6 Using the Carry’Box ..........................16 Uninstalling the Carry’Box Module ....................16 Cleaning ..............................16 Warranty ..............................

  • Page 4: General Warning

    Using the Carry’Box Module The Carry’Box module is designed to be used on the AddBike produced by our company. Do not try to install or use this module on other cargo bikes or on a classic bike. The Carry’Box module is not designed to be stored outdoors for prolonged periods. It must be stored...

  • Page 5: Lexicon Of The Carry'box Module

    2. Lexicon of the Carry’Box module Crossbar Front tubes Upper tubes Compact slat Front tubes Upper tubes Compact slat Crossbar Figure 1 - Lexicon of the Carry'Box module...

  • Page 6: Contents Of The Carry'box Parcel

    • The manual for the Carry'Box module. • Before assembling the Carry'Box module on your bike, remember to check that the product is in good general condition (no scratches, no bent parts). 4. Installing the Carry’Box The Carry’Box module must be installed and uninstalled as explained. Improper installation can lead to accidents that could cause serious injury.
  • Page 7 You should end up with the result shown in figure 3; Figure 3 – Fixing the compact slat to the lower tubes Remove the screws on both sides of the compact plate of the AddBike seat. The same • applies to the screws on both sides of the highest compact plate of the AddBike backrest;...
  • Page 8 Insert the front tubes into the holes of the seat and line up the screw holes of both parts; • Figure 5 - Insertion of front tubes into the seat Replace the previously removed seat screws by inserting them through the holes in the •...
  • Page 9 Install the textile: • Slide on the white textile sheaths Position the rear of the textile in front of the backrest Figure 7 - Insertion of the textile...
  • Page 10 At the back of the module, hook the 3 textile straps around the backrest of the AddBike, starting • with the bottom one; Tighten the fabric on both sides, centering the fabric on the backrest as much as possible. Verify that no cables from the AddBike are caught in the strap clamps.
  • Page 11 Insert the upper tubes into the holes in the backrest and the front tubes at the same time. If the • different tube sections do not coincide, you have positioned the upper tube in the wrong direction; Figure 10 - Insert the upper tubes into the backrest Replace the screws previously removed from the backrest, making them pass through the holes •...
  • Page 12 Slide the crossbar into the sleeve of the textile cover; • Figure 12 – Insert the crossbar into the sleeve of the textile cover Position the crossbar between the two holes formed at the front of the module between the •...
  • Page 13 Figure 13 - Installation of the crossbar Open the upper flaps on both sides of the module by pulling on the Velcro stripes; • Figure 14 - Velcro strip to be undone...
  • Page 14 Fold the textile over the upper tubes and attach it to the Velcro tape provided; • Figure 15 - View of the textile support from above Fold the lid over the textile to close the Carry'Box; •...
  • Page 15 Figure 16 - Complete assembly of the Carry'Box If you wish to use the Carry'Box without its lid, do not put the lid on the crossbar when mounting it on the module.

  • Page 16: Using The Carry'box

    Do not transport children in the Carry’Box. Riding the AddBike with loads. Please read chapter 9C of the “AddBike User and Installation Guide”. 6. Uninstalling the Carry’Box Module Remove the crossbar by removing the screws attaching it;...

  • Page 17: Warranty

    If a problem occurs with your Carry'Box, please contact AddBike (support@addbike.fr) or your dealer. We will help you as much as possible in order to solve the problem as soon as possible. You can consult a list of AddBike dealers who are trained in the assembly and maintenance of AddBike products on www.add-bike.com.
  • Page 18 61 cours de la République 69100 VILLEURBANNE, FRANCE You may order additional user guides from AddBike. This user guide has been drafted with the utmost care. If you have any proposals to improve the clarity of this document, we would appreciate it if you...
