Non-contractual photos
The Carry'Box Instruction Manual
April 2021
Compatible with the AddBike and the AddBike+
This manual will teach you how to assemble/disassemble and use the Carry'Box
module correctly. It is imperative you read this entire manual to keep your bike and
the Carry'Box in good condition.
Please keep this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carry'Box and is the answer not in the manual?

Questions and answers

Related Manuals for AddBike Carry'Box

Summary of Contents for AddBike Carry'Box

  • Page 1 The Carry’Box Instruction Manual April 2021 Compatible with the AddBike and the AddBike+ This manual will teach you how to assemble/disassemble and use the Carry’Box module correctly. It is imperative you read this entire manual to keep your bike and the Carry’Box in good condition. ...

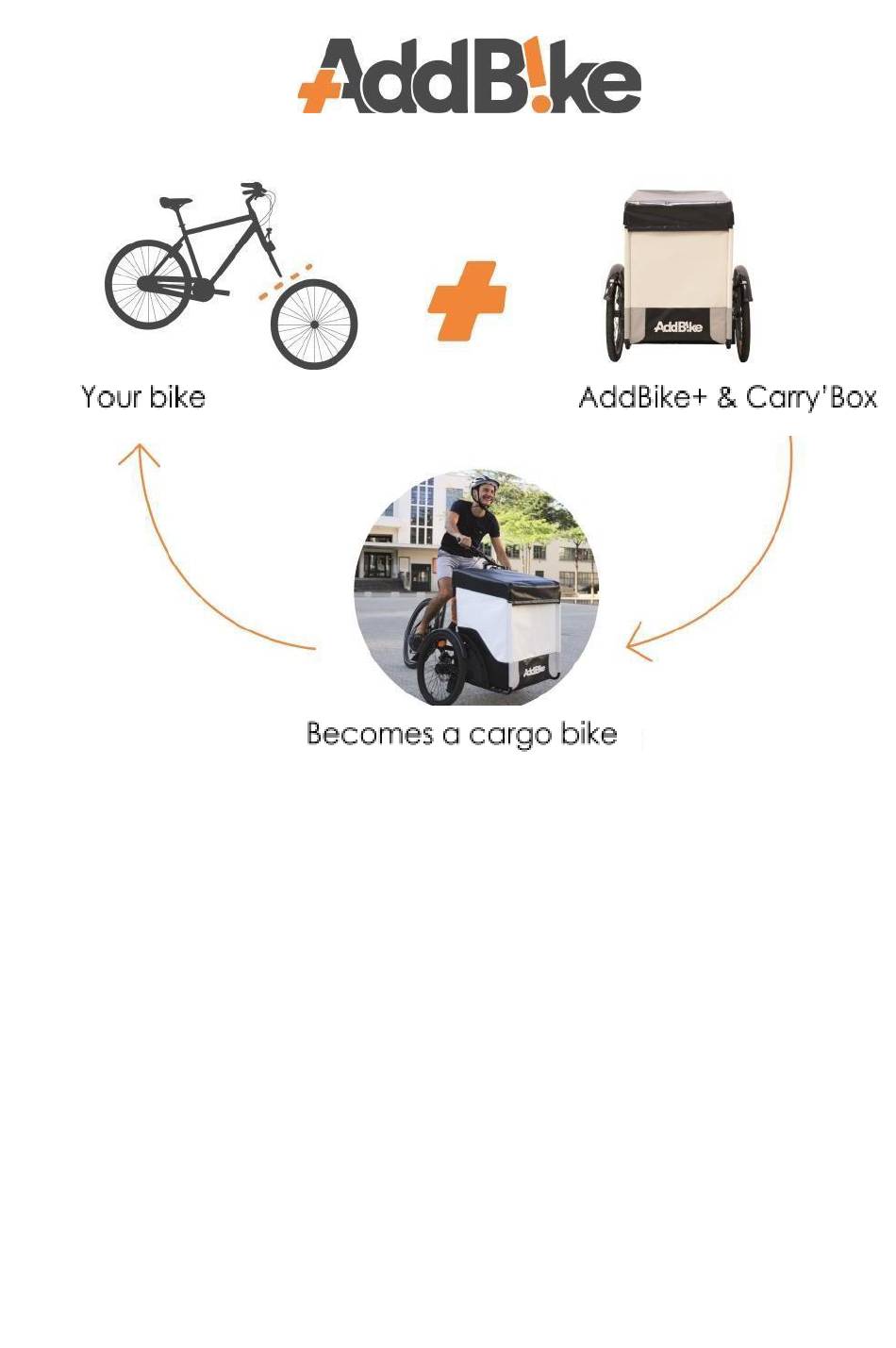

  • Page 2 We welcome you to the Addbiker Family! There is no need to invest in expensive and large cargo bikes.  Thanks to the AddBike+ you can quickly and easily turn your own bike into a compact cargo bike.

  • Page 3: Table Of Contents

    Summary General Warning Carry’Box Glossary Contents of the Carry’Box box Installing the Carry’Box Using the Carry’Box Uninstalling the Carry’Box module Cleaning Warranty Assistance in case of problems...

  • Page 4: General Warning

    Please keep this manual for future reference. It is also important to take into account the directions for use of the AddBike+ and that of the bike on which you are installing the AddBike+. The AddBike Company disclaims all liability in case of non-compliance with the instructions in this Instruction Manual and in case of modification of the product by the user.

  • Page 5: Carry'box Glossary

    2. Carry’Box Glossary Illustration 1 - Carry'Box Glossary...

  • Page 6: Contents Of The Carry'box Box

    The Carry’Box module must be installed and uninstalled as explained. Improper installation can lead to accidents that could cause serious injury. We advise you to install the Carry’Box on the AddBike+ before installing it on your bike. For the installation/deinstallation you will need a size 3 Allen key: Allen Key (size 3) Illustration 2 –...
  • Page 7 Refer to the image below. Illustration 3 – Fixing the compact slat to the front tubes Unscrew the 2 screws as shown below, situated on the AddBike+ seat. Then unscrew the ● screws on each side of the AddBike+ backrest.
  • Page 8 Insert the front tubes of the compact slat into the seat of the AddBike+. Make sure that the ● screw holes are in line Illustration 5 -  Insertion of front tubes into the seat Screw in the previously removed screws located in the seat of the AddBike+, by inserting ●...
  • Page 9 Install the textile as shown in illustration 7: ● The front tubes go into the the textile’s white sleeves The back of the textile simply goes in front of the backrest Illustration 7 – Inserting the textile...
  • Page 10 ● At the back of the module, hook the 3 textile straps around the backrest of the AddBike+, starting with the bottom one; Tighten the fabric on both sides, centering the fabric on the backrest as much as possible. None of the AddBike+ cables should be stuck in the straps.
  • Page 11 Insert the top tubes into the holes in the backrest and front tubes at the same time. If they ● do not match, you have positioned the top tube in the wrong direction; Illustration 10 - Inserting the upper tubes into the backrest Screw the previously removed backrest screws by inserting them through the holes in the ●...
  • Page 12 Put the crossbar through the lid sleeve as shown in illustration12. ● Illustration 12 – Inserting the crossbar in the textile lid Secure the crossbar between the upper tubes and the front tubes using BHC M5x30 as ● shown in illustration 13a and 13b. Illustration 13a –...
  • Page 13 Illustration 13b – Installing the crossbar Open the upper flaps on each side of the module by pulling on the Velcro as shown on ● illustration 14. Illustration 14 – Lifting the velcro...
  • Page 14 ● Fold the fabric over the upper tubes and secure it on the velcro as shown in illustration Illustration 15 – Fabric folded over the upper tubes Close the Carry’Box by putting the lid onto the fabric as shown in illustration 16a and 16b. ●...
  • Page 15 Illustration 16b - Finished Carry’Box If you wish to use the Carry’Box without the lid, all you must do is no put it on the crossbar while building it.

  • Page 16: Using The Carry'box

    Do not transport children in the Carry'Dog. ● Driving the AddBike+ while loaded. Refer to chapter 9C of the "AddBike+ Instruction Manual". 6. Uninstalling the Carry’Box Remove the crossbar by unfastening the screws holding it in place. ●...

  • Page 17: Warranty

    9. Assistance in case of problems If a problem occurs with your Carry'Dog, please contact us via e-mail at support@addbike.fr or you can contact your dealer. Both parties will offer assistance to solve your issue.  You can consult the list of AddBike+ retailers, trained for...
  • Page 18 Address : 61 cours de la République 69100 VILLEURBANNE, FRANCE You may order additional user guides from AddBike.  This user guide has been created with the utmost care. If you have any complaints, unclarity and/or suggestions, we would immensely appreciate the feedback to...
