Summary of Contents for Beok Controls TDR-83

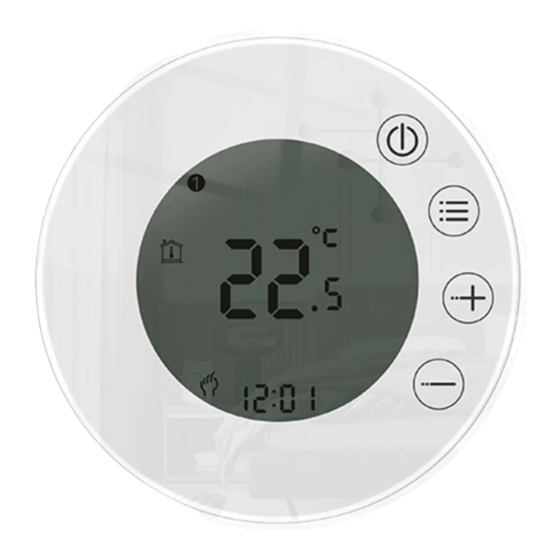

- Page 1 TDR-83 THERMOSTAT USER GUIDE THIS THERMOSTAT IS SUITABLE FOR WATER HEATING, ELECTRIC HEATING AND GAS BOILER...
- Page 2 TDR-83 THERMOSTAT USER GUIDE Welcome Thank you for your trust and support. By adopting higher-end technology and more perfect technology, your new thermostat will provide you with the right temperature environment every day in the future, making your life more comfortable and your living environment more stylish and beautiful.
-
Page 3: Product Packaging
TDR-83 THERMOSTAT USER GUIDE Product packaging Manual----------------- Thermostat host----------------- 1 PC 1 PC Qualification certificate------- 1 PC Screw------------------- 2PCS Sensing line (optional)-------- 1 PC Product Model WP Plumbing 3A EP Electric Heating 16A WPB linkage, gas boiler 3A... -
Page 4: User Notes
TDR-83 THERMOSTAT USER GUIDE User Notes 1. Please read this manual carefully. Improper operation may damage the product or cause dangerous conditions. 2. The installation personnel must be well-trained and experienced service technicians. 3. After installation, please read this manual carefully and operate the product according to the instructions. -
Page 5: Installation Procedure

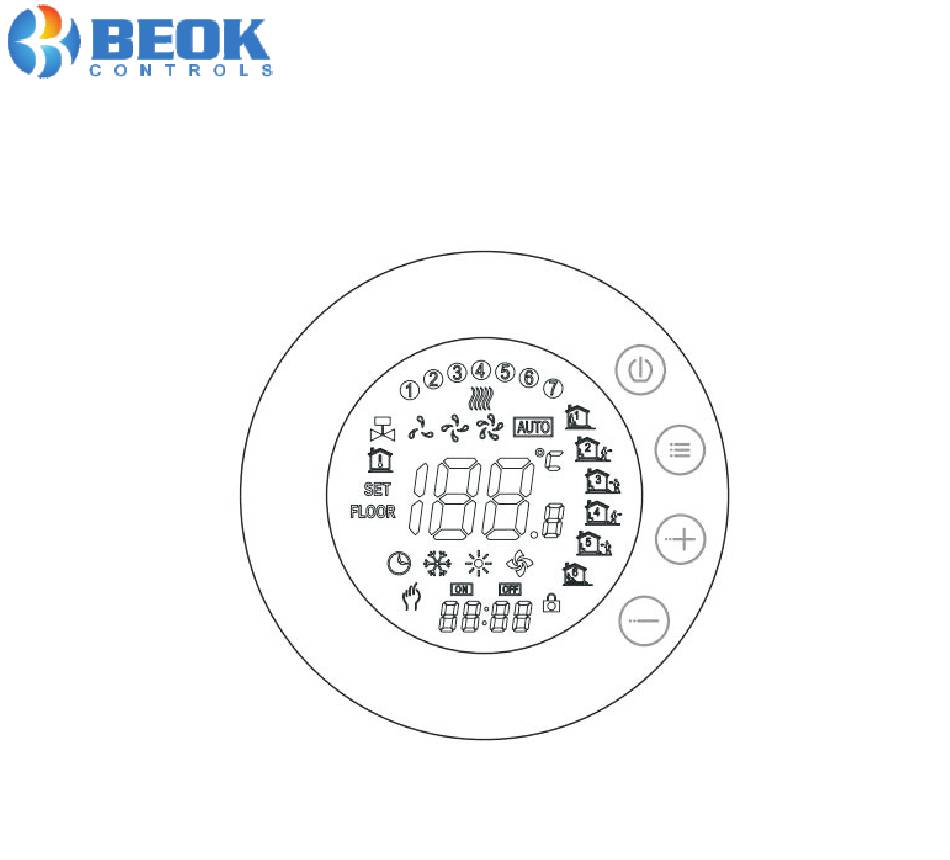

TDR-83 THERMOSTAT USER GUIDE Installation procedure This product is installed with a standard 86 control switch (in compliance with European regulations) 2. Remove the mounting plate in this direction 1. Slide the mounting plate upward in this direction 3.Fix mounting plate to cassette with 4. - Page 6 TDR-83 THERMOSTAT USER GUIDE Description of display & Icon...
- Page 7 TDR-83 THERMOSTAT USER GUIDE Operating Instruction 1. Power on/off: press to turn on/off the thermostat. 2. Press the key to switch between manual and automatic modes. 3. In the automatic mode, press to adjust the temperature to enter the automatic temporary mode. This mode runs for only one session.
- Page 8 TDR-83 THERMOSTAT USER GUIDE Time programming instructions Press and hold the key to enter the programming setting, short press the key to switch the option, press the key or key to adjust each option parameter, and press the key to exit and save.
-
Page 9: Advanced Options
TDR-83 THERMOSTAT USER GUIDE Advanced options When POWER OFF, press the key and the key for 5 seconds to enter the advanced option setting. Press to enter the next option, press to adjust, and press exit the height Level option.
