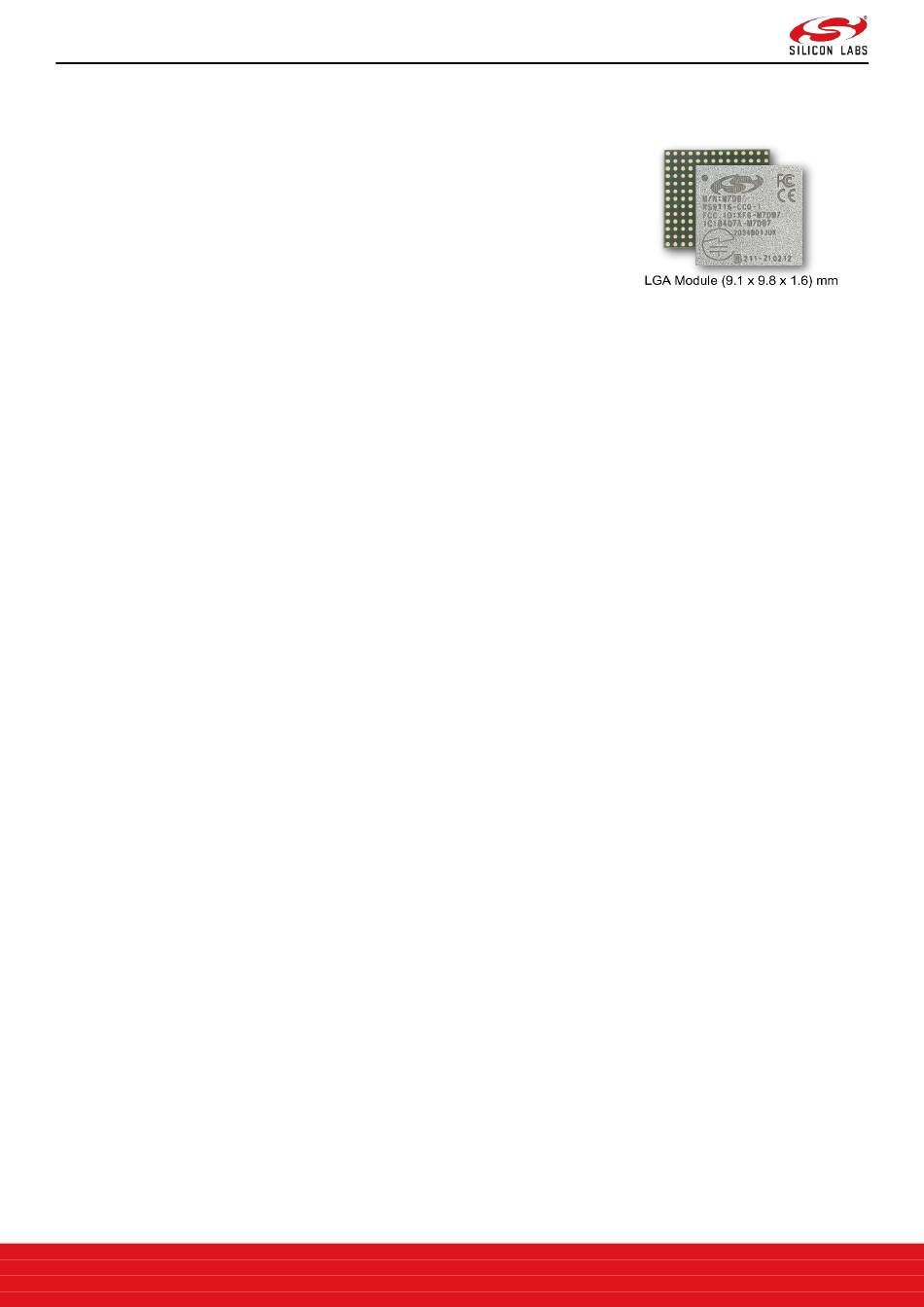

RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021
RS9116 n-Link™ and WiSeConnect™ Wi-Fi® and Dual-Mode Bluetooth® 5

Overview

1.1 Features

Wi-Fi
Compliant to 1x1 IEEE 802.11 a/b/g/n with dual
band (2.4 and 5 GHz) support
Transmit power up to +18 dBm in 2 GHz and
+13.5 dBm in 5 GHz
Receive sensitivity as low as -96 dBm in 2 GHz
and -89 dBm in 5 GHz
Data Rates: 802.11b: Up to 11 Mbps; 802.11g/a:
Up to 54 Mbps; 802.11n: MCS0 to MCS7
Operating Frequency Range: 2412 MHz – 2484
MHz, 4.9 GHz – 5.975 GHz
Bluetooth
Transmit power up to +17 dBm with integrated PA
Receive sensitivity: LE: -92 dBm, LR 125 Kbps: -
103 dBm
Compliant to dual-mode Bluetooth 5
<8 mA transmit current in Bluetooth 5 mode, 2
Mbps data rate
Data rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps,
3 Mbps
Operating Frequency Range: 2.402 GHz - 2.480
GHz
Bluetooth 2.1 + EDR, Bluetooth Low Energy 4.0 /
4.1 / 4.2 / 5.0
Bluetooth Low Energy 1 Mbps, 2 Mbps and Long
Range modes
Bluetooth Low Energy Secure connections
Bluetooth Low Energy supports central role and
peripheral role concurrently
Bluetooth auto rate and auto TX power adaptation
Scatternet* with two slave roles while still being
visible
RF Features
Integrated baseband processor with calibration
memory, RF transceiver, high-power amplifier,
balun and T/R switch
Dual external antenna (diversity supported)
silabs.com | Building a more connected world.
Wireless Connectivity CC0 Module Solutions
Power Consumption (2.4 GHz)
Wi-Fi Standby Associated mode current: 102 uA
@ 1 second beacon interval
Wi-Fi 1 Mbps Listen current: 14 mA
Wi-Fi LP chain Rx current: 20 mA
Deep sleep current <1 uA, Standby current (RAM
retention) < 10 uA
Operating Conditions
Operating supply range: 3.0 V to 3.63 V
Operating temperature: -40 ºC to +85 ºC
Size

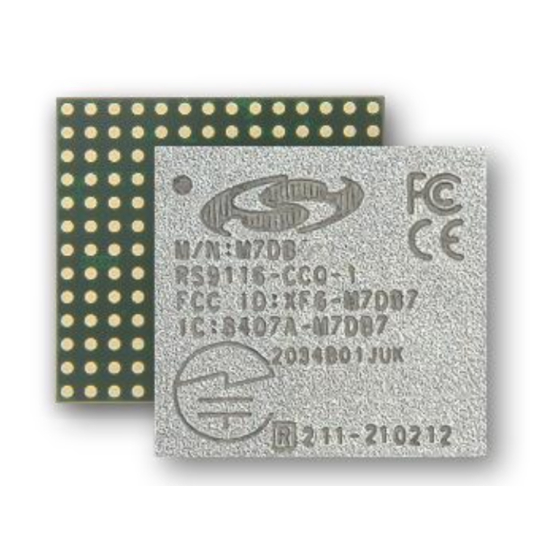

Small Form Factor: 9.1 x 9.8 x 1.6 mm
Software Operating Modes
Hosted mode (n-Link™): Wi-Fi stack, Bluetooth
stack and profiles and all network stacks reside on
the host processor
Embedded mode (WiSeConnect™): Wi-Fi stack,
TCP/IP stack, IP modules, Bluetooth stack and
some profiles reside in RS9116; Some of the
Bluetooth profiles reside in the host processor
Hosted Mode (n-Link™)
Available host interfaces: SDIO 2.0 and USB HS
Support for 20 MHz channel bandwidth
Application data throughput up to 50 Mbps (Hosted
Mode) in 802.11n with 20 MHz bandwidth
Host drivers for Linux
Support for Client mode, Access point mode (Up to
16 clients), Concurrent Client and Access Point
mode, and Enterprise Security
Support for concurrent Wi-Fi, dual-mode
Bluetooth 5
Embedded Mode (WiSeConnect™)
Available host interface: UART, SPI, and USB
CDC
Support for Embedded Client mode, Access Point
mode (Up to 8 clients), Concurrent Client and
Access Point mode, and Enterprise Security
Supports advanced security features: WPA/WPA2-
Personal and Enterprise
Rev 1.0.10 1 | Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS9116 n-Link and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Silicon Laboratories RS9116 n-Link

  • Page 1: Overview

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 RS9116 n-Link™ and WiSeConnect™ Wi-Fi® and Dual-Mode Bluetooth® 5 Wireless Connectivity CC0 Module Solutions Overview 1.1 Features Power Consumption (2.4 GHz) Wi-Fi • Wi-Fi Standby Associated mode current: 102 uA • Compliant to 1x1 IEEE 802.11 a/b/g/n with dual @ 1 second beacon interval band (2.4 and 5 GHz) support...
  • Page 2: Applications

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 • • Integrated TCP/IP stack, HTTP/HTTPS, SSL/TLS, Accelerators: AES128/256 in Embedded Mode MQTT • WPA/WPA2-Personal, WPA/WPA2 Enterprise for • Client Bluetooth inbuilt stack support for L2CAP, RFCOMM, SDP, SPP, GAP Software and Regulatory Certification •...
  • Page 3: Block Diagrams

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1.4 Block Diagrams Figure 1. CC0 Module Block Diagram Figure 2. RS9116 Connectivity Hardware Block Diagram silabs.com | Building a more connected world. Rev 1.0.10 3 | Page...
  • Page 4 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Figure 3. Hosted Software Architecture Figure 4. Embedded Software Architecture Customer can connect multiple hosts, but only one host interface can be active after power-on. silabs.com | Building a more connected world. Rev 1.0.10 4 | Page...
  • Page 5: Table Of Contents

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Table of Contents Overview..................................1 Features ..................................1 Applications ................................2 Description................................. 2 Block Diagrams ................................. 3 RS9116 CC0 Module Pinout and Pin Description....................7 Pin Diagram ................................7 Pin Description ................................8 2.2.1 RF &...
  • Page 6 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Dimensions ................................77 Package Outline ..............................77 Pin Locations ................................78 PCB Landing Pattern .............................. 80 6.4.1 Packing Information of Modules with Package Codes CC0....................80 RS9116 CC0 Module Certification and Ordering Information ................82 Certification Information ............................
  • Page 7: Rs9116 Cc0 Module Pinout And Pin Description

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 2 RS9116 CC0 Module Pinout and Pin Description 2.1 Pin Diagram SDIO_D3 SDIO_D1 SDIO_CMD/ SDIO_CLK/ VOUTLDOSOC VINLDOSOC USB_AVDD_1P1 USB_DP USB_DM GPIO_15 GPIO_11 /SPI_ERR_INTR/ /SPI_MISO SPI_CSN SPI_CLK USB_CDC_DIS SDIO_D2 SDIO_D0 USB_AVDD_3P3 ULP_GPIO_1 IO_VDD_1 VINBCKDC VOUTLDO1P8 ULP_IO_VDD...
  • Page 8: Pin Description

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 2.2 Pin Description 2.2.1 RF & Control Interfaces Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) RF_PORT1 Inout Secondary antenna port, used for Antenna diversity. If used, connect to Antenna with a 50 Ω...
  • Page 9 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 RF_VBATT Power Input Always-on VBATT Power supply to the RF VINBCKDC Power Input Power supply for the on-chip Buck VOUTBCKDC Power Output Output of the on-chip Buck VINLDOSOC Power Input Power supply for SoC LDO. Connect to VOUTBCKDC as per the Reference Schematics VOUTLDOSOC Power...
  • Page 10: Host & Peripheral Interfaces

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 USB_AVDD_3P3 Power Input Power Supply for the USB interface USB_AVDD_1P1 Power Input Power supply for the USB core Ground B1, B13, C4, D8, F2, F6, Common ground pins F10, F11, F12, F13, G8, G10, G11, G12, G13, G14, H6, H9, H11, H12, H13, H14, J4, J6, J8, J9,...
  • Page 11 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) • PCM_CLK - PCM interface clock. GPIO_8/UART1_RX IO_VDD_1 Inout HighZ Host Default Sleep UART UART1_RX HighZ - UART Host interface serial input.
  • Page 12 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) • I2S_WS: I2S interface Word Select. • PCM_FSYNC: PCM interface Frame Synchronization signal. GPIO_12 IO_VDD_1 Inout HighZ Default : HighZ Sleep: HighZ...
  • Page 13 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) SDIO_CLK/SPI_CLK SDIO_IO_VDD Inout HighZ Host Default Sleep SDIO SDIO_CLK - HighZ SDIO interface clock SPI_CLK - HighZ SPI Slave interface...
  • Page 14 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) interface Data0 signal SPI_MOSI - HighZ SPI Slave interface Master-Out- Slave-In signal HighZ HighZ SDIO,SPI The SPI interface is supported only in WiSeConnect™.
  • Page 15 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) SPI_INTR - HighZ SPI Slave interface Interrupt Signal to the Host HighZ HighZ SDIO,SPI The SPI interface is supported only in WiSeConnect™.
  • Page 16 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) GPIO_46 IO_VDD_1 Inout HighZ Default : HighZ Sleep: HighZ GPIO_47 IO_VDD_1 Inout HighZ Default : HighZ Sleep: HighZ GPIO_48 IO_VDD_1...
  • Page 17 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) Sleep: HighZ ULP_GPIO_0 ULP_IO_VDD Inout HighZ Default : HighZ Sleep: HighZ This pin can be configured by software to be any of the following •...
  • Page 18 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) This pin can be configured by software to be any of the following • LP_WAKEUP_IN :This is LP Powersave Wakeup indication to Device from HOST •...
  • Page 19 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) ULP_GPIO_7 ULP_IO_VDD Inout HighZ Default : HighZ ULP_GPIO_8 ULP_IO_VDD Inout HighZ Default : HighZ Sleep: HighZ This pin can be configured by software to be any of the following •...
  • Page 20 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) This pin can be configured by software to be any of the following • SLEEP_IND_FROM_DEV: This signal is used to send an indication to the Host processor.
  • Page 21 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) host processor or from external crystal oscillator. • SLEEP_IND_FROM_DEV: This signal is used to send an indication to the Host processor.
  • Page 22 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1,2,3,4 Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) JNC - Reserved. Connect to a test point for debug purposes. USB_DP USB_AVDD_3P3 Inout Positive data channel from the USB connector.
  • Page 23: Miscellaneous Pins

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 2.2.4 Miscellaneous Pins Pin Name Pin Number I/O Supply Domain Direction Initial State (Power up, Description Active Reset) TRST IO_VDD_1 Test signal. Connect to Ground. A1, A2, A13, C1,C3, C7, No connect. C8, D2, E1, E3, E4, G1, G2, G6, G7, K13, K14, L8, L14, M7, M8, N3, N4,...
  • Page 24: Rs9116 Cc0 Module Specifications

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3 RS9116 CC0 Module Specifications 3.1 Absolute Maximum Ratings Functional operation above maximum ratings is not guaranteed and may damage the device. Exposure to maximum rating conditions for extended periods may affect device reliability. Symbol Parameter Units...
  • Page 25: Dc Characteristics

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Symbol Parameter Min. Typ. Max. Units UULP_VBATT_2 Always-on VBATT supply to the 3.63 UULP Domains RF_VBATT Always-on VBATT Power supply 3.63 to the RF VINBCKDC Power supply for the on-chip Buck 3.63 VINLDOSOC Power supply for SoC LDO 1.35...
  • Page 26: Power Sequence

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3.3.2 Power Sequence The POC_IN and RESET_N signals should be controlled from external sources such as R/C circuits, and/or other MCU's GPIOs. However POC_OUT can be connected to POC_IN through an R-C, if the supply voltage is 3.3V. Below waveforms show power sequence (Up & Down) requirements under various application needs. Note that below waveforms are not to scale.
  • Page 27 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 NOTE: 1. VBATT supply shown above must be connected to the power supply pins of IC/Module. For example, SDIO_IO_VDD, ULP_IO_VDD, UULP_VBATT_1, etc. 2. Above POC_IN waveform is applicable if it is externally driven. Else, that particular waveform can be ignored, and the RESET_N timing can be considered after/before external power supplies ramp-up/down.
  • Page 28 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 NOTE: 1. VBATT supply shown above must be connected to the power supply pins of IC/Module. For example, SDIO_IO_VDD, ULP_IO_VDD, UULP_VBATT_1, etc. 3.3.2.3 Power-Up and Down Sequence with POC_IN connected internally The diagram below shows connections of various power supply voltages, POC_IN and RESET_N. The typical applications of this connection can be as follows. This connection is Not Recommended for New Design.
  • Page 29 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 NOTE: 1. VBATT supply shown above must be connected to the power supply pins of IC/Module. For example, SDIO_IO_VDD, ULP_IO_VDD, UULP_VBATT_1, etc. 3.3.2.4 Power-Up Sequence with EXT_PG_EN used to control supply voltages The EXT_PG_EN functionality (available on one of the pins) can be used to control supply voltages other than UULP_VBATT supplies (Always-ON VBATT Power supplies).
  • Page 30: Hardware Resetting Sequence After Power On

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 NOTE: 1. The waveform shown above is for a typical connection. POC_IN can be connected based on one of the above application diagrams, and its waveform/timing depends on the connection. 2. As per the EXT_PG_EN signaling, other power supplies ramp-up as per the power circuitry implementation. Hence, the start and ramp-up timing of other power supplies does not have any timing requirement.
  • Page 31 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 silabs.com | Building a more connected world. Rev 1.0.10 31 | Page...
  • Page 32: Digital Input Output Signals

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3.3.4 Digital Input Output Signals Symbol Parameter Min. Typ. Max. Unit High level input voltage @3.3V High level input voltage @1.8V 1.17 Low level input voltage @3.3V Low level input voltage @1.8V 0.63 Hysteresis voltage 0.1 VDD...
  • Page 33 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 The chipsets have integrated internal oscillators including crystal oscillators to generate the required clocks. Integrated crystal oscillators enable the use of low-cost passive crystal components. Additionally, in a system where an external clock source is already present, the clock can be reused. The following are the recommended options for the clocks for different functionalities: Functionality Default Clock...
  • Page 34: Sdio 2.0 Slave

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Parameter Description Units Oscillator Frequency 32.768 Frequency Variation with Temp and Voltage -100 osc_Acc Duty cycle Input duty cycle Input AC peak-peak voltage swing at input -0.3 VBATT+/- pin. Table 12. 32 kHz External Oscillator Specifications 3.4.2 SDIO 2.0 Slave 3.4.2.1 Full Speed Mode...
  • Page 35: Spi Slave

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Figure 8. Interface Timing Diagram for SDIO 2.0 Slave High Speed Mode 3.4.3 SPI Slave 3.4.3.1 Low Speed Mode Parameter Parameter Description Min. Typ. Max. Unit SPI_CLK SPI_CS to output delay SPI CS to input setup time SPI_MOSI, input setup time 1.33 SPI_MOSI, input hold time...
  • Page 36 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Parameter Description Min. Typ. Max. Unit SPI_MISO, clock to output delay 8.75 Output Load Table 16. AC Characteristics - SPI Slave High Speed Mode Figure 10. Interface Timing Diagram for SPI Slave High Speed Mode 3.4.3.3 Ultra High Speed Mode Parameter...
  • Page 37: Usb

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3.4.4 USB 3.4.4.1 Low Speed Mode Parameter Parameter Description Min. Typ. Max. Unit Rise Time Fall Time Jitter Jitter Table 18. AC Characteristics - USB Low Speed Mode 3.4.4.2 Full Speed Mode Parameter Parameter Min.
  • Page 38 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Parameter Description Min. Typ. Max. Unit data, setup time stop condition, setup time sstop Output Load Table 22. AC Characteristics - I2C Fast Speed Mode Figure 12. Interface Timing Diagram for I2C Fast Speed Mode 3.4.6.2 High Speed Mode Parameter...
  • Page 39: I2S/Pcm Master And Slave

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3.4.7 I2S/PCM Master and Slave 3.4.7.1 Master Mode Negedge driving and posedge sampling for I2S Posedge driving and negedge sampling for PCM Parameter Parameter Description Min. Typ. Max. Unit i2s_clk i2s_din,i2s_ws setup time i2s_din,i2s_ws hold time i2s_dout output delay i2s_dout output load...
  • Page 40: Gpio Pins

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Figure 15. Interface Timing Diagram for I2S Slave Mode 3.4.8 GPIO pins Parameter Parameter Conditions Min. Typ. Max. Unit Description Rise time Pin configured as output; SLEW = 1(fast mode) Fall time Pin configured as output;...
  • Page 41: Rf Characteristics

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3.5 RF Characteristics In the sub-sections below, all numbers are measured at typical operating conditions unless otherwise stated. 3.5.1 WLAN 2.4 GHz Transmitter Characteristics 3.5.1.1 Transmitter Characteristics with 3.3V Supply • TA = 25°C, PA2G_AVDD/VINBCKDC = 3.3V. Remaining supplies are at typical operating conditions. •...
  • Page 42 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition Notes Units MCS6 Mixed EVM< -25 dB 12.5 Mode (see note section) MCS7 Mixed EVM< -27 dB Mode (see note section) Transmitter Emissions (6 Mbps @ 776-794 MHz CDMA2000 -148 dBm/Hz Maximum Power) 869–960 MHz...
  • Page 43: Wlan 2.4 Ghz Receiver Characteristics On High-Performance (Hp) Rf Chain

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3.5.2 WLAN 2.4 GHz Receiver Characteristics on High-Performance (HP) RF Chain TA = 25°C. Parameters are measured at antenna port on channel 1(2412 MHz) • All WLAN receiver sensitivity numbers and adjacent channel numbers are at < 10% PER limit. Packet sizes are 1024 bytes for 802.11 b/g data rates and 4096 bytes for 802.11 n data rates.
  • Page 44: Wlan 2.4 Ghz Receiver Characteristics On Low-Power (Lp) Rf Chain

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition/Notes Units 1920–1980 MHz 2300–2400 MHz 2570–2620 MHz 2545–2575 MHz Return Loss Adjacent Channel Interference 1 Mbps DSSS 11 Mbps DSSS 6 Mbps OFDM 54 Mbps OFDM MCS0 Mixed Mode MCS7 Mixed Mode Alternate Adjacent Channel 1 Mbps DSSS Interference...
  • Page 45 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition Units 18 Mbps OFDM 24 Mbps OFDM 36 Mbps OFDM MCS0 Mixed Mode MCS1 Mixed Mode -84.5 MCS2 Mixed Mode MCS3 Mixed Mode MCS4 Mixed Mode Maximum Input Level for PER 802.11 b below 10% 802.11g...
  • Page 46: Bluetooth Transmitter Characteristics On High-Performance (Hp) Rf Chain

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 1. Receiver sensitivity may be degraded by up to 4 dB for channels 6,7,8,13,14 due to desensitization of the receiver by harmonics of the system clock (40 MHz). 2. There may be a degradation of up to 2 dB across the operating temperature range of -40 °C to +85 °C. 3.5.4 Bluetooth Transmitter Characteristics on High-Performance (HP) RF Chain 3.5.4.1 Transmitter Characteristics with 3.3 V Supply...
  • Page 47 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition Notes Units RMS DEVM, EDR3 99% DEVM, EDR2 99% DEVM, EDR3 peak DEVM, EDR2 peak DEVM, 13.5 EDR3 Δf1 Avg BLE Modulation Characteristics Δf2 Max Δf2 Avg/Δf1 Avg Transmitter Emissions (BR 776-794 MHz CDMA2000 -160...
  • Page 48: Bluetooth Transmitter Characteristics On Low-Power (Lp) 0 Dbm Rf Chain

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 2. Noise-floor is -160dBm/Hz with spurious tone power of -68dBm at 1601.33 MHz when the transmitted signal is at 2402 MHz. 3.5.5 Bluetooth Transmitter Characteristics on Low-Power (LP) 0 dBm RF Chain TA = 25°C.
  • Page 49: Bluetooth Receiver Characteristics On High-Performance (Hp) Rf Chain

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3.5.6 Bluetooth Receiver Characteristics on High-Performance (HP) RF Chain TA = 25°C. Parameters are measured at the antenna port and applicable to PA2G_AVDD/VINBCKDC=3.3V Parameter Condition/Notes Units (1),(2) Sensitivity,Dirty TX off BR (1 Mbps), 339 bytes, DH5 -90.5 Packet, BER= 0.1% EDR2 (2 Mbps), 679 bytes, 2-DH5...
  • Page 50 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition/Notes Units EDR3, adjacent +1/- MHz BER=0.1% EDR3, adjacent +2/-2 MHz BER=0.1% EDR3, adjacent >=|±3| MHz BER=0.1% EDR3, Image channel BER=0.1% EDR3, adjacent to Image channel BER=0.1% LE 1Mbps, co-channel PER=30.8% LE 1Mbps, adjacent +1 MHz PER=30.8% LE 1Mbps, adjacent -1 MHz...
  • Page 51: Bluetooth Receiver Characteristics On Low-Power (Lp) Rf Chain

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition/Notes Units LE 2Mbps, +2MHz adjacent to Image channel PER=30.8% LE 2Mbps, -2MHz adjacent to Image channel PER=30.8% Table 32. Bluetooth Receiver Characteristics on HP RF Chain 1. BR, EDR: Receiver sensitivity is degraded by up to 6 dB for channels 38,78 due to the desensitization of the receiver from harmonics of the system clock (40MHz) 2.
  • Page 52 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition/Notes Units BR, Image channel BER=0.1% BR, adjacent to Image channel BER=0.1% EDR2, co-channel BER=0.1% EDR2, adjacent +1/-1 MHz BER=0.1% EDR2, adjacent +2/-2 MHz BER=0.1% EDR2, adjacent >=|±3| MHz BER=0.1% EDR2, Image channel BER=0.1% EDR2, adjacent to Image channel BER=0.1% LE 1Mbps, co-channel...
  • Page 53: Wlan 5Ghz Transmitter Characteristics

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition/Notes Units LE 2Mbps, adjacent -4 MHz PER=30.8% LE 2Mbps, adjacent >= |±6| MHz PER=30.8% LE 2Mbps, Image channel PER=30.8% LE 2Mbps, +2MHz adjacent to Image channel PER=30.8% LE 2Mbps, -2MHz adjacent to Image channel PER=30.8% Table 33.
  • Page 54 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition Notes Units MCS3 Mixed EVM< -16 dB 10.5 Mode MCS4 Mixed EVM< -19 dB Mode HT - MCS5 EVM< -22 dB HT - MCS6 EVM< -25 dB (see note section) HT - MCS7 EVM<...
  • Page 55 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition Notes Units Transmit Power for 20 MHz OFDM - 9 Mbps EVM< -8 dB Bandwidth, compliant with IEEE OFDM - 12 EVM< -10 dB mask and EVM Mbps Frequency Band: 5725 - 5825 OFDM - 18 EVM<...
  • Page 56: Wlan 5Ghz Receiver Characteristics

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition Notes Units 2010–2075 MHz TDSCDMA -159 dBm/Hz 2110–2170 MHz WCDMA -159 dBm/Hz 2305–2370 MHz LTE Band 40 -159 dBm/Hz 2370–2400 MHz LTE Band 40 -159 dBm/Hz 2496–2530 MHz LTE Band 41 -159 dBm/Hz 2530–2560 MHz LTE Band 41...
  • Page 57 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition/Notes Units Sensitivity for 20 MHz 6 Mbps OFDM -86.5 Bandwidth 9 Mbps OFDM -86.5 Frequency Band: 5500 - 5600 12 Mbps OFDM -85.5 18 Mbps OFDM 24 Mbps OFDM -80.5 36 Mbps OFDM -76.5 48 Mbps OFDM...
  • Page 58 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Condition/Notes Units RSSI Accuracy Range Blocking level for 3 dB RX 776–794 MHz SensitivityDegradation(Data rate 824–849 MHz 6Mbps OFDM, Desired signal at - 79dBm) 880–915 MHz 1710–1785 MHz 1850–1910 MHz 1920–1980 MHz 2500–2570 MHz 2300–2400 MHz 2570–2620 MHz...
  • Page 59: Typical Current Consumption

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 3.6 Typical Current Consumption 3.6.1 3.3 V 3.6.1.1 WLAN 2.4 GHz Parameter Description Value Units 1 Mbps Listen LP Chain 13.8 1 Mbps RX Active LP Chain 19.6 IEEE 802.11g – 6 Mbps RX Active HP Chain IEEE 802.11g –...
  • Page 60 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Description Value Units Standby Associated, DTIM = 3 2.4 GHz Band Standby Associated, DTIM = 10 2.4 GHz Band 3.6.1.2 WLAN 5 GHz Parameter Description Value Units IEEE 802.11a – 6 Mbps RX Active HP Chain IEEE 802.11a –...
  • Page 61 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Parameter Description Value Units Standby State retained 13.1 Advertising, Unconnectable Advertising on all 3 channels Advertising Interval = 1.28s Tx Power = -2 dBm, LP chain Advertising, Connectable Advertising on all 3 channels Advertising Interval = 1.28s Tx Power = -2 dBm, LP chain Connected...
  • Page 62: Rs9116 Cc0 Module Detailed Description

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 4 RS9116 CC0 Module Detailed Description 4.1 Overview The RS9116 CC0 module is based on Silicon Labs’ RS9116 ultra-low-power, single spatial stream, 802.11n + BT/BLE5.0 Convergence SOC. The RS9116 CC0 module is FCC,IC,CE and TELEC certified and provides low-cost CMOS integration of a multi-threaded MAC processor (ThreadArch®), baseband digital signal processing, analog front-end, calibration eFuse, 2.4GHz RF transceiver, 5GHz RF transceiver, matching networks, antenna diversity switch (DPDT) and Quad-SPI Flash thus providing a fully-integrated solution for a range of hosted and embedded...
  • Page 63 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 • Bluetooth Low Energy 1 Mbps, 2 Mbps and Long Range modes • Bluetooth Low Energy Secure connections • Bluetooth Low Energy supports central role and peripheral role concurrently • Bluetooth auto rate and auto TX power adaptation •...
  • Page 64: Rf Transceiver

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 • Supports Data rates up to 3 Mbps 4.2.3 RF Transceiver • Integrated 2.4 GHz transceiver with highly programmable operating modes • Integrated 5 GHz transceiver with highly programmable operating modes • Integrated matching networks and diplexers •...
  • Page 65: Security

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 application layer supports all profiles supported by BlueZ on Linux. It has a wireless coexistence manager to arbitrate between protocols. The RS9116 software package is available in two flavors • Hosted mode (n-Link™): Wi-Fi stack, Bluetooth stack and profiles, and all network stacks reside on the host processor.
  • Page 66: Low Power Modes

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Wide input voltage range (3.0 to 3.6V) on pin VINBCKDC Output – 1.4V and 300mA maximum load on pin VOUTBCKDC • SC DC-DC – Switching converter for Always-ON core logic domain Wide input voltage range (3.0 to 3.6V) on pin UULP_VBATT_1 and UULP_VBATT_2 Output –...
  • Page 67: Memory

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 • GPIO Based Wakeup: Exit sleep state when GPIO goes High/Low based on programmed polarity. • Analog Comparator Based wakeup – Exit sleep state on an event at the analog comparator. • RTC Timer wakeup –...
  • Page 68: Rs9116 Cc0 Module Reference Schematics, Bom And Layout Guidelines

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 5 RS9116 CC0 Module Reference Schematics, BOM and Layout Guidelines 1. Customers should include provision for programming or updating the firmware at manufacturing. 2. If using UART, we recommend bringing out the SPI lines to test points, so designers could use the faster interface for progra mming the firmware as needed. 3.
  • Page 69 DFE201210U-1R0M=P2 50 Ohm RF line Size : 0805 SDIO or SPI Interface 3.3V VOUTBCKDC VINBCKDC VOUTBCKDC 8.2pF RF_PORT1 10uF 10uF SDIO_CLK/SPI_CLK SDIO_CLK/SPI_CLK L1 Specifications SDIO_CMD/SPI_CSN SDIO_CMD/SPI_CSN 1uH +/- 20% VOUTBCKDC RF_AVDD DC Resistance : 95mohm max SDIO_D0/SPI_MOSI SDIO_D0/SPI_MOSI Antenna/U.FL Isat : 1A min SDIO_D1/SPI_MISO SDIO_D1/SPI_MISO 8.2pF...
  • Page 70: Bill Of Materials

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Figure 16. Schematics with SDIO/SPI/UART Host Interface 1. The supplies can be driven by different voltage sources within the recommended operating conditions specified in Specificatio ns section. 2. SDIO_IO_VDD can be driven by a different source irrespective of other sources to support different interfaces. 3.
  • Page 71: Usb/Usb-Cdc

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 S.No. Quantity Reference Value Description JEDEC Manufacturer Part Number Wireless Single/Dual Band Module Silicon Labs RS9116W-DB00-CC0-B2A / RS9116N-DB00-CC0-B00 Z1,Z4 8.2pF CER CHP 8.2P +/-0.25P C0G 0201 25V 0201 Murata GRM0335C1E8R2CD01D Z2,Z3,Z5,Z6 Optional Capacitors for Antenna Matching 0201 Table 37.
  • Page 72 DFE201210U-1R0M=P2 Size : 0805 50 Ohm RF line 3.3V VOUTBCKDC VINBCKDC VOUTBCKDC 8.2pF RF_PORT1 10uF 10uF SDIO_CLK/SPI_CLK L1 Specifications VOUTBCKDC RF_AVDD SDIO_CMD/SPI_CSN 1uH +/- 20% DC Resistance : 95mohm max SDIO_D0/SPI_MOSI Antenna/U.FL Isat : 1A min VOUTLDOSOC VOUTLDOSOC SDIO_D1/SPI_MISO Populate for USB_CDC Interface 8.2pF VOUTBCKDC VINLDOSOC...
  • Page 73: Bill Of Materials

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Figure 17. Schematics with USB/USB-CDC Host Interface 1. The supplies can be driven by different voltage sources within the recommended operating conditions specified in Specificatio ns section. 2. Ensure that the pin USB_CDC_DIS is left unconnected to ensure normal USB functionality. 3.
  • Page 74: Layout Guidelines

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 5.3 Layout Guidelines 1. The following Supply Pins needs to be STAR routed from the Supply Source a. VINBCKDC b. ULP_IO_VDD c. SDIO_IO_VDD d. IO_VDD_1 e. UULP_VBATT_1 UULP_VBATT_2 g. PA2G_AVDD h. PA5G_AVDD RF_VBATT RF_AVDD33 k.
  • Page 75 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Figure 18. Spacing between USB_DP and USB_DM 9. In order to minimize crosstalk between the two USB differential signals (USB_DP and USB_DN) and other signal traces routed close to them, it is recommended that a minimum spacing of 3 x a be maintained for low-speed non- periodic signals and a minimum spacing of 7 x a be maintained for high-speed periodic signals.
  • Page 76 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 14. Ensure all power supply traces widths are sufficient enough to carry corresponding currents. 15. Add GND copper pour underneath IC/Module in all layers, for better thermal dissipation. Note: When using Chip Antenna from vendors, the Chip Antenna layout guidelines provided by the vendor need to be used.
  • Page 77: Rs9116 Cc0 Module Package Description

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 6 RS9116 CC0 Module Package Description 6.1 Dimensions Parameter Value (LxWxH) Units Module Dimensions 9.1 x 9.8 x 1.6 Tolerance ±0.2 Table 39 Module Dimensions 6.2 Package Outline Figure 21. Package Outline silabs.com | Building a more connected world.
  • Page 78: Pin Locations

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 6.3 Pin Locations All coordinates in the table below are in millimeters, and in TOP VIEW. Numb Coordin Coordi Numb Coordin Coordina Numb Coordina Coordina Numb Coordina Coordina nate ‐4.55 ‐3.15 ‐2.1 0.35 3.85 ‐3.85...
  • Page 79 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Numb Coordin Coordi Numb Coordin Coordina Numb Coordina Coordina Numb Coordina Coordina nate ‐3.15 ‐1.05 ‐1.4 ‐2.45 ‐4.2 3.15 ‐2.45 ‐0.35 ‐1.4 ‐1.75 ‐4.2 3.85 ‐1.75 ‐1.4 ‐1.05 ‐4.2 1.75 4.55 ‐1.05 ‐4.55 ‐2.1 ‐0.35...
  • Page 80: Pcb Landing Pattern

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 6.4 PCB Landing Pattern Figure 22. PCB Landing Pattern 6.4.1 Packing Information of Modules with Package Codes CC0 The modules are packaged and shipped in Trays. Each tray for the CC0 package can accommodate 168 modules. The mechanical details of the tray for the CC0 package are given in the figure below.
  • Page 81 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Figure 23. Packing Information of Modules with Package Codes CC0 silabs.com | Building a more connected world. Rev 1.0.10 81 | Page...
  • Page 82: Rs9116 Cc0 Module Certification And Ordering Information

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 7 RS9116 CC0 Module Certification and Ordering Information 7.1 Certification Information This section will outline the regulatory certification information for the RS9116 modules for the countries listed below. This information will be updated when available. 1.
  • Page 83: Industry Canada / Ised Statement

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or nearby persons.
  • Page 84: Telec

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 The high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650- 5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and 5650-5725MHz.
  • Page 85: Module Marking Information

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 7.2.5.1 M7DB6 Brand Antenna Model Antenna Type Gain Qualified Region 2.4 GHz 5 GHz Taoglas GW.71.5153 Dipole Antenna 3.8 dBi (Bent) 5.5 dBi (Bent) FCC/IC, TELEC 3.3 dBi 4.9 dBi (Straight) (Straight) Table 41 Qualified Antenna List for M7DB6 7.2.5.2 M7DB...
  • Page 86: Module Package

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Marking Description Model M7DB6 Model Number for Dual-band modules M7DB Part Number Designation – refer to the Part Ordering Section for Part Number PPPPPPPPPPPPP more details. XF6-M7DB6 FCC Grant ID for Dual-band modules. XF6-M7DB7 8407A-M7DB6 IC Grant ID for Dual-band modules.
  • Page 87: Rs9116 Cc0 Module Documentation And Support

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 8 RS9116 CC0 Module Documentation and Support Silicon Labs offers a set of documents which provide further information required for evaluating, and developing products and applications using RS9116. These documents are available in RS9116 Document Library on the Silicon Labs website.
  • Page 88: Rs9116 Cc0 Module Revision History

    RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 9 RS9116 CC0 Module Revision History Revision Version No. Date Changes April, 2019 Initial version • 1.0.1 May, 2019 Updated host based schematics. Combined SDIO, SPI & UART host interfaces into one schematic.Combined USB and USB-CDC host interfaces into one schematic •...
  • Page 89 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Revision Version No. Date Changes • Added a note under Pin Description regarding functionalities that are available on multiple Pins, and their proper usage. Eg. SLEEP_IND_FROM_DEV • Updated Generic PCB Layout Guidelines. •...
  • Page 90 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Revision Version No. Date Changes • Updated note on Wake-on-Wireless feature, under Description for pin ULP_GPIO_6. • Removed ESD and Latch Up information from Absolute Ratings table. • Updated Min. and Max. values for RF related pins, ULP_IO_VDD, and PA2G_AVDD to reflect only 3.3 V in Recommended Operating Conditions.
  • Page 91 RS9116 CC0 Connectivity Module Datasheet v1.0.10, December 2021 Revision Version No. Date Changes • Provided Hardware Resetting sequence. • Updated Digital Input Output Signals, and added a note for SDIO signal. • Added note under Reference Schematics regarding power supply to IO domain when any interface/signal is not used.
