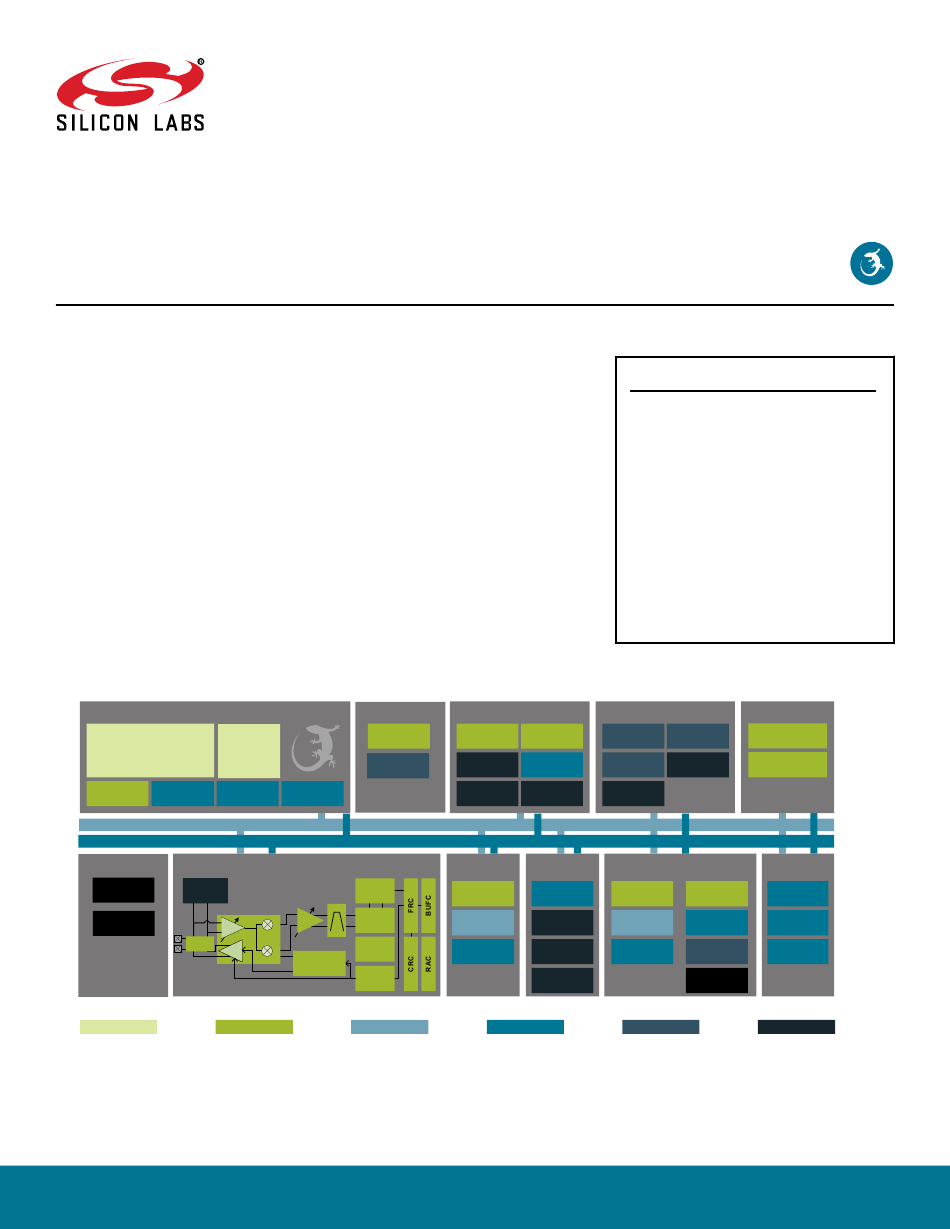

BGM11S Blue Gecko
数据表
Bluetooth
BGM11S Blue Gecko
越 RF 性能、低功耗和轻松开发应用的关键需求。
在 6.5 x 6.5 x 1.4 mm 中，BGM11S 模块适用于体积受限的应用。同时，BGM11S 也整合
了高性能且非常可靠的天线，这需要 PCB、塑料与金属的净空达到最小。BGM11S 所需的
2
PCB 总面积仅为 51 mm
。BGM11S 具备 Bluetooth、CE、完整 FCC、日本和韩国认证。
Bluetooth 4.2 合规 Bluetooth 协议栈，可运行板载终端用户应用或
BGM11S 也整合了
作为主机接口之一的网络协同处理器进行使用。
BGM11S SIP 模块可用于广泛的应用中：
• 可穿戴产品
• IoT 终端设备和网关
• 医疗、运动和健康设备
• 工业、家庭和楼宇自动化
• 智能手机、平板电脑和台式电脑配件
• 信标
Core / Memory
ARM Cortex M4 processor
Memory
with DSP extensions and FPU
Protection Unit
Flash Program
RAM Memory
Debug Interface
Memory
Antenna
Chip antenna
RFSENSE
Matching
LNA
RF Frontend
BALUN
PA
Lowest power mode with peripheral operational:
EM0—Active
EM1—Sleep
silabs.com | Building a more connected world.
Bluetooth
®
SiP Module 产品系列致力于满足用户对于超小体积、卓
Crystals
38.4MHz
32.768kHz
DMA Controller
Peripheral Reflex System
Radio Transceiver
DEMOD
I
PGA
IFADC
AGC
Frequency
Q
Synthesizer
MOD
EM2—Deep Sleep
®
SiP Module
Clock Management
High Frequency
High Frequency
RC Oscillator
Crystal Oscillator
Auxiliary
Low Frequency
High Frequency
RC Oscillator
RC Oscillator
Ultra Low
Low Frequency
Frequency
Crystal Oscillator
RC Oscillator
32-bit bus
I/O Ports
Serial Interfaces
External
USART
Interrupts
Low Energy
General Purpose
Low energy timer
UART
I/O
I
C
Pin Reset
2
Pin Wakeup
EM3—Stop
主要特点
• Bluetooth 4.2 低功耗合规
• 集成天线或 RF 引脚
• TX 功率高达 8 dBm
• RX 灵敏度：-90 dBm
• 距离：长达 200 米
• 32 位 ARM
®
®
Cortex
-M4 内核为 38.4 MHz
• 闪存：256 kB
• RAM：32 kB
• 自主硬件加密加速器和随机数生成器
• 集成直流转换器
• 板载 Bluetooth 协议栈
Energy Management
Other
Voltage
Voltage Monitor
CRYPTO
Regulator
DC-DC
Power-On Reset
CRC
Converter
Brown-Out
Detector
Timers and Triggers
Analog I/F
Timer/Counter
Protocol Timer
ADC
Analog
Watchdog Timer
Comparator
Pulse Counter
RTCC
IDAC
Cryotimer
EM4—Hibernate
EM4—Shutoff
Rev. 1.0
