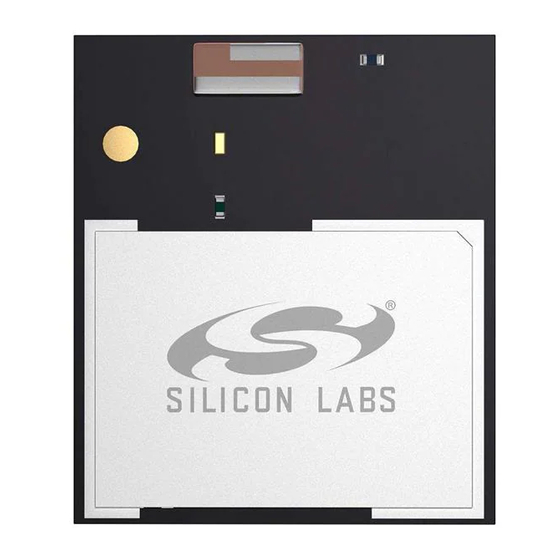

MGM210P 无线 Gecko 多协议模块数据表
MGM210P 是旨在满足网状网络的线路供电式 IoT 产品的性能、安
全性和可靠性要求的模块。
它基于 EFR32MG21 SoC，支持 Zigbee
Bluetooth)，可提供一流的 RF 范围和性能，其功能和 OTA 固件更新可满足未来需求，具有最先进的
安全性、较低的有功电流消耗以及适合在苛刻环境条件下运行的温度等级。
MGM210P 是全面的解决方案，具有完全可升级的强大软件栈、全球范围内的法规认证、先进的开发
和调试工具以及可简化和缩减产品开发周期和部署的支持功能，从而帮助缩短产品上市时间。
MGM210P 面向广泛的应用，包括：
• 智能家居
• 互连照明
• 建筑自动化及安全

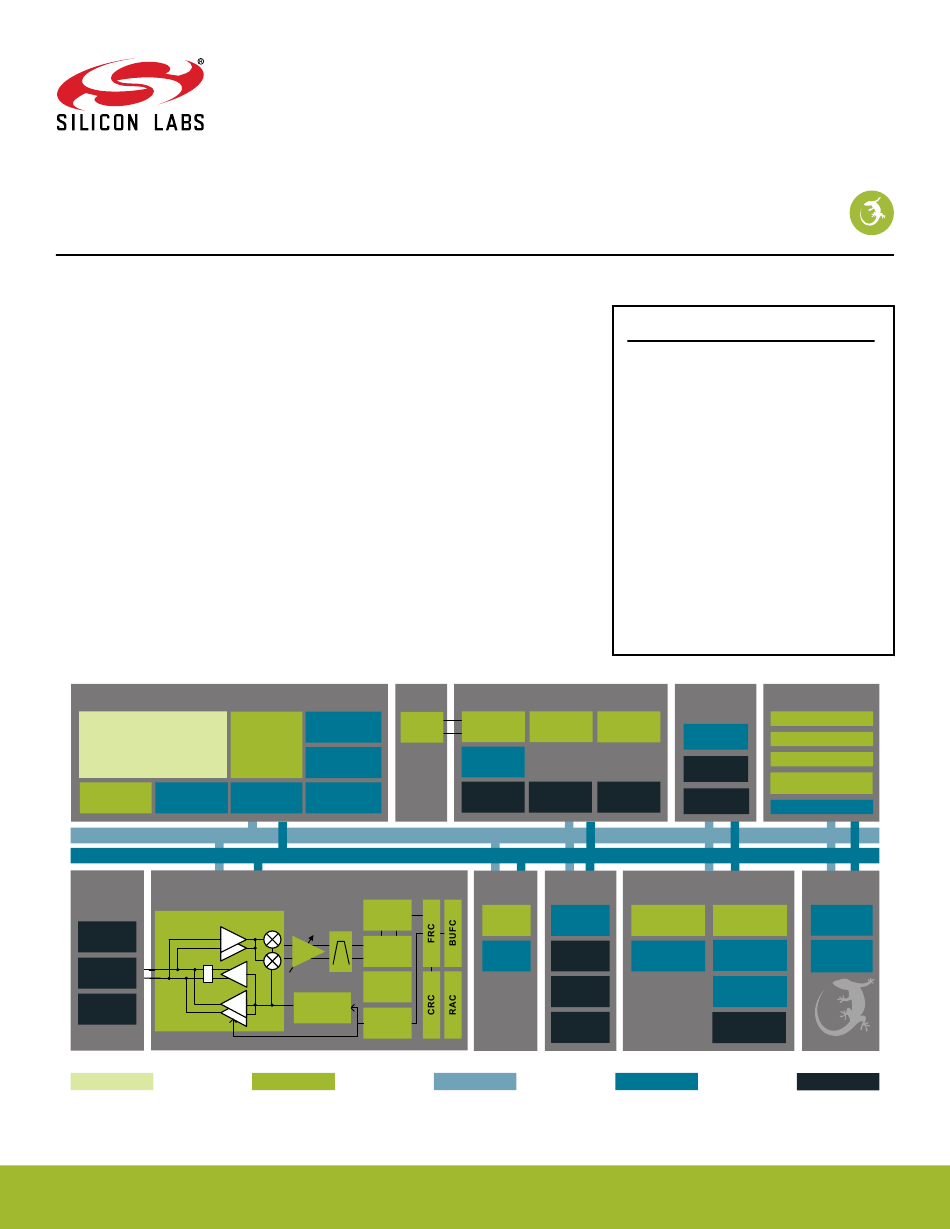

Core / Memory
TM
ARM Cortex
M33 processor
with DSP extensions,
FPU and TrustZone
ETM
Secure Debug
Antenna
RF Frontend
Chip
LNA
Antenna
Matching
PA
PA
RF Pin
Lowest power mode with peripheral operational:
EM0—Active
silabs.com | Building a more connected world.
®
®
、OpenThread
、Bluetooth
Crystal
Secure Boot
38.4
with RTSL
MHz
Flash Program
Memory
Extended
Unique Identifier
LDMA
RAM Memory
Controller
Radio Transceiver
DEMOD
I
Q
PGA
IFADC
AGC
Frequency
Synth
MOD
EM1—Sleep
Copyright © 2022 by Silicon Laboratories
®
和多协议连接 (Zigbee +
Clock Management
HF Crystal
HF
Oscillator
RC Oscillator
EM2 HF RC
Oscillator
LF Crystal
Ultra LF RC
Oscillator
Oscillator
32-bit bus
Peripheral Reflex System
Serial
I/O Ports
Interfaces
External
USART
Interrupts
General
I
2
C
Purpose I/O
Pin Reset
Pin Wakeup
EM2—Deep Sleep
主要特点
• Zigbee、OpenThread、Bluetooth 5.1 和多
协议连接
• 内置天线和 RF 引脚
• +10 和 +20 dBm TX 功率版本
• -103.9 dBm 802.15.4 RX 灵敏度
• 在 1 Mbps 时，Bluetooth RX 灵敏度为
-97.0 dBm
• 32 位 ARM Cortex-M33（内核为 38.4
MHz）
• 1024/96 kB 闪存/RAM 内存
• 安全元件或安全库
• 优秀 MCU 外围设备集
• 20 个 GPIO 引脚
• -40 至 +125 C°
• 12.9 mm x 15.0 mm x 2.2 mm
Energy
Management
Crypto Acceleration
Fast Startup
RC Oscillator
Voltage
Regulator
DPA Countermeasures
Brown-Out
Detector
LF
Power-On
RC Oscillator
Reset
Timers and Triggers
Timer/Counter
Protocol Timer
Low Energy
Watchdog
Timer
Timer
Real Time
Capture Counter
Back-Up Real
Time Counter
EM3—Stop
Security
TRNG
Secure Debug
Authentication
Anti-Tamper
Analog I/F
ADC
Analog
Comparator
EM4—Shutoff
Rev. 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gecko MGM210P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silicon Laboratories Gecko MGM210P

Summary of Contents for Silicon Laboratories Gecko MGM210P

  • Page 1 Pin Reset Capture Counter Frequency RF Pin Synth Back-Up Real Pin Wakeup Time Counter Lowest power mode with peripheral operational: EM0—Active EM1—Sleep EM2—Deep Sleep EM3—Stop EM4—Shutoff silabs.com | Building a more connected world. Copyright © 2022 by Silicon Laboratories Rev. 1.2...

  • Page 2: Features

    MGM210P 无线 Gecko 多协议模块数据表 功能 1. 功能 • 支持的协议 • 工作范围 • Zigbee • 1.71 至 3.8 V • Thread • -40 至 +125°C • Bluetooth 5.1 • 尺寸 • 网状 Bluetooth • 12.9 mm x 15.0 mm x 2.2 mm •...

  • Page 3: Ordering Information

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Ordering Information 2. Ordering Information Table 2.1. Ordering Information Secure Flash Ordering Code Protocol Stack TX Power Vault Antenna (kB) (kB) GPIO Temp Range Packaging MGM210PA22JIA2 • Zigbee 10 dBm Built-in 1024 -40 to 125 °C Cut Tape and RF •...

  • Page 4: Table Of Contents

    Table of Contents 1. Features ....... . . 2 2. Ordering Information ......3 3.
  • Page 5 5.2 SoC Application ......26 6. Pin Definitions ......27 6.1 Module Pinout .

  • Page 6: System Overview

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet System Overview 3. System Overview 3.1 Block Diagram The MGM210P module is a highly-integrated, high-performance system with all the hardware components needed to enable 2.4 GHz wireless connectivity and support robust networking capabilities via multiple protocols. Built around the EFR32MG21 Wireless Gecko SoC, the MGM210P includes, both, a built-in antenna and a 50 Ω-matched RF pin, RF matching networks (optimized for transmit power efficiency), supply decoupling and filtering components, a 38.4 MHz reference crystal, and an RF shield.

  • Page 7: Power Supply

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet System Overview 3.4 Power Supply The MGM210P requires a single nominal supply level of 3.0 V to operate. However, it can support use cases needing different levels for the main supply (VDD) and for digital IO (IOVDD). The DECOUPLE pin exposes the SoC's on-chip digital supply regulator output and allows introducing an external digital supply source via a PMIC, for example.

  • Page 8: Cryptographic Accelerator

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet System Overview 3.5.2 Cryptographic Accelerator The Cryptographic Accelerator is an autonomous hardware accelerator with Differential Power Analysis (DPA) countermeasures to pro- tect keys. It supports AES encryption and decryption with 128/192/256-bit keys, ChaCha20 encryption, and Elliptic Curve Cryptography (ECC) to support public key operations, and hashes.

  • Page 9: Anti-Tamper

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet System Overview 3.5.7 Anti-Tamper Secure Vault High devices provide internal tampers monitoring the system such as voltage, temperature, and electromagnetic pulses as well as detecting tamper of the security sub-system itself. Additionally, 8 external configurable tamper pins support external tamper sources, such as case tamper switches.

  • Page 10: Electrical Specifications

    =25 °C and VDD supply at 3.0 V, by production test and/or technology characterization. • Radio performance numbers are measured in conducted mode, based on Silicon Laboratories reference designs using output pow- er-specific external RF impedance-matching networks for interfacing to a 50 Ω antenna.

  • Page 11: General Operating Conditions

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.2 General Operating Conditions This table specifies the general operating temperature range and supply voltage range for all supplies. The minimum and maximum values of all other tables are specifed over this operating range, unless otherwise noted. Table 4.2.

  • Page 12: Mcu Current Consumption At 3.0V

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.3 MCU Current Consumption at 3.0V Unless otherwise indicated, typical conditions are: VDD = 3.0 V. T = 25 °C. Minimum and maximum values in this table represent the worst conditions across process variation at T = 25 °C.

  • Page 13: Radio Current Consumption At 3.0V

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.4 Radio Current Consumption at 3.0V RF current consumption measured with MCU in EM1, HCLK = 38.4 MHz, and all MCU peripherals disabled. Unless otherwise indica- ted, typical conditions are: VDD = 3.0V. T = 25 °C.

  • Page 14: Rf Transmitter General Characteristics

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.5 RF Transmitter General Characteristics Unless otherwise indicated, typical conditions are: T = 25 °C, VDD = 3.0V. Measured with RF center frequency of 2.45 GHz on RF2G4_IO2 port. Table 4.5. RF Transmitter General Characteristics Parameter Symbol Test Condition...

  • Page 15: Rf Transmitter Characteristics For 802.15.4 Dsss-Oqpsk In The 2.4 Ghz Band

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.6 RF Transmitter Characteristics for 802.15.4 DSSS-OQPSK in the 2.4 GHz Band Unless otherwise indicated, typical conditions are: T = 25 °C, VDD = 3.0V. Measured with RF center frequency of 2.45 GHz on RF2G4_IO2 port.

  • Page 16: Rf Receiver Characteristics For 802.15.4 Dsss-Oqpsk In The 2.4 Ghz Band

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.8 RF Receiver Characteristics for 802.15.4 DSSS-OQPSK in the 2.4 GHz Band Unless otherwise indicated, typical conditions are: T = 25 °C, VDD = 3.0V. RF center frequency 2.45 GHz. Measured on RF2G4_IO2. Table 4.8.

  • Page 17: Rf Receiver Characteristics For Bluetooth Low Energy At 1 Mbps

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.9 RF Receiver Characteristics for Bluetooth Low Energy at 1 Mbps Unless otherwise indicated, typical conditions are: T = 25 °C, VDD = 3.0V. RF center frequency 2.45 GHz. Measured on RF2G4_IO2. Table 4.9.

  • Page 18: Rf Receiver Characteristics For Bluetooth Low Energy At 2 Mbps

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.10 RF Receiver Characteristics for Bluetooth Low Energy at 2 Mbps Unless otherwise indicated, typical conditions are: T = 25 °C, VDD = 3.0V. RF center frequency 2.45 GHz. Measured on RF2G4_IO2. Table 4.10.

  • Page 19: Rf Receiver Characteristics For Bluetooth Low Energy At 500 Kbps

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.11 RF Receiver Characteristics for Bluetooth Low Energy at 500 kbps Unless otherwise indicated, typical conditions are: T = 25 °C, VDD = 3.0V. RF center frequency 2.45 GHz. Measured on RF2G4_IO2. Table 4.11.

  • Page 20: Rf Receiver Characteristics For Bluetooth Low Energy At 125 Kbps

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.12 RF Receiver Characteristics for Bluetooth Low Energy at 125 kbps Unless otherwise indicated, typical conditions are: T = 25 °C, VDD = 3.0V. RF center frequency 2.45 GHz. Measured on RF2G4_IO2. Table 4.12.

  • Page 21: High-Frequency Crystal

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.13 High-Frequency Crystal Table 4.13. High-Frequency Crystal Parameter Symbol Test Condition Unit Crystal frequency — 38.4 — HFXTAL Initial calibrated accuracy — HFXTAL Temperature drift DRIFT Across specified temperature — HFXTAL range 4.14 Low Frequency Crystal Oscillator Table 4.14.

  • Page 22: Gpio Pins

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.15 GPIO Pins Unless otherwise indicated, typical conditions are: VDD = IOVDD = 3.0 V. Table 4.15. GPIO Pins Parameter Symbol Test Condition Unit Leakage current MODEx = DISABLED, IOVDD = —...

  • Page 23: Microcontroller Peripherals

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.16 Microcontroller Peripherals The MCU peripherals set available in MGM210P modules includes: • 12-bit 1 Msps ADC • Analog Comparators • 16-bit and 32-bit Timers/Counters • 24-bit Low Energy Timer for waveform generation •...

  • Page 24: Antenna Radiation And Efficiency

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Electrical Specifications 4.17.1 Antenna Radiation and Efficiency Typical MGM210P radiation patterns and efficiency for the on-board chip antenna under optimal operating conditions are plotted in the figures that follow. Antenna gain and radiation patterns have a strong dependence on the size and shape of the application PCB the module is mounted on, as well as on the proximity of any mechanical design to the antenna.

  • Page 25: Reference Diagrams

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Reference Diagrams 5. Reference Diagrams The interconnection labels in the following diagrams correspond to supported pin functions as described in Sections Debug, 7.6 Packet Trace Interface (PTI) 6.4 Digital Peripheral Connectivity. 5.1 Network Co-Processor (NCP) Application with UART Host The MGM210P can be controlled over the UART interface as a peripheral to an external host processor.

  • Page 26: Soc Application

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Reference Diagrams 5.2 SoC Application The MGM210P can be used in a stand-alone SoC configuration without an external host processor. Typical power supply and program- ming/debug interface connections are shown in the figure below. For more details, refer to AN958: Debugging and Programming Inter- faces for Custom Designs.

  • Page 27: Pin Definitions

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Pin Definitions 6. Pin Definitions 6.1 Module Pinout Pin 1 Index PB01 PB00 RF2G4_IO2 PA00 RESETn PA01 PA02 PC05 PA03 PC04 PA04 PC03 PA05 PC02 PA06 PC01 DECOUPLE PC00 Figure 6.1. MGM210P Module Pinout The next table shows the MGM210P pinout and general descriptions for each pin.

  • Page 28: Alternate Pin Functions

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Pin Definitions Pin Name Description Pin Name Description Note: 1. Connected to pull-up resistor to VDD internally. External pull-up is not required. 2. 50 Ohm-matched RF pin for external antenna support. Connect to GND when not used. 3.

  • Page 29: Digital Peripheral Connectivity

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Pin Definitions 6.4 Digital Peripheral Connectivity Many digital resources are routable and can be connected to numerous GPIO's. The table below indicates which peripherals are avalia- ble on each GPIO port. Table 6.4. DBUS Routing Table Peripheral.Resource PORT ACMP0.DIGOUT...
  • Page 30 MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Pin Definitions Peripheral.Resource PORT TIMER0.CC0 Available Available Available Available TIMER0.CC1 Available Available Available Available TIMER0.CC2 Available Available Available Available TIMER0.CDTI0 Available Available Available Available TIMER0.CDTI1 Available Available Available Available TIMER0.CDTI2 Available Available Available Available TIMER1.CC0 Available...
  • Page 31 MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Pin Definitions Peripheral.Resource PORT USART2.CLK Available Available USART2.CS Available Available USART2.CTS Available Available USART2.RTS Available Available USART2.RX Available Available USART2.TX Available Available silabs.com | Building a more connected world. Rev. 1.2 | 31...

  • Page 32: Design Guidelines

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Design Guidelines 7. Design Guidelines 7.1 Layout and Placement For optimal performance of the MGM210P, • Place the module aligned to the edge of the application PCB, as illustrated in the figures below. •...
  • Page 33 MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Design Guidelines Align module edge with PCB edge (optional, not mandatory) U.FL connector RF2G4_IO2 Place vias close to for external each of the antenna module’s GND pads 50 Ohm Wireless Module trace (Top View) for RF signal Place vias along all PCB edges Figure 7.2.

  • Page 34: Proximity To Other Materials

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Design Guidelines Figure 7.4. RF Trace Design Example 7.2 Proximity to Other Materials Avoid placing plastic or any other dielectric material in close proximity to the antenna. Any metallic objects in close proximity to the antenna will prevent the antenna from radiating freely. The minimum recommended dis- tance of metallic and/or conductive objects is 10 mm in any direction from the antenna except in the directions of the application PCB ground planes.

  • Page 35: Packet Trace Interface (Pti)

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Design Guidelines 7.6 Packet Trace Interface (PTI) The MGM210P integrates a true PHY-level packet trace interface (PTI) peripheral that can capture packets non-intrusively to monitor and log device and network traffic without burdening processing resources in the module's SoC. The PTI generates two output signals that can serve as a powerful debugging tool, especially in conjunction with other hardware and software development tools available from Silicon Labs.

  • Page 36: Package Specifications

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Package Specifications 8. Package Specifications 8.1 Package Outline Figure 8.1. Top and Side Views Figure 8.2. Bottom View silabs.com | Building a more connected world. Rev. 1.2 | 36...

  • Page 37: Pcb Land Pattern

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Package Specifications 8.2 PCB Land Pattern Figure 8.3. Recommended Land Pattern for Built-in Antenna Use Case Figure 8.4. Recommended Land Pattern for RF Pin Use Case silabs.com | Building a more connected world. Rev.

  • Page 38: Package Marking

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Package Specifications 8.3 Package Marking The figure below shows the module markings engraved on the RF shield. Figure 8.5. MGM210P Top Marking Mark Description The package marking consists of: • MGM210Pxxxxxxx - Part number designation •...

  • Page 39: Soldering Recommendations

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Soldering Recommendations 9. Soldering Recommendations It is recommended that final PCB assembly of the MGM210P follows the industry standard as identified by the Institute for Printed Cir- cuits (IPC). This product is assembled in compliance with the J-STD-001 requirements and the guidelines of IPC-AJ-820. Surface mounting of this product by the end user is recommended to follow IPC-A-610 to meet or exceed class 2 requirements.

  • Page 40: Tape And Reel

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Tape and Reel 10. Tape and Reel 10.1 Tape and Reel MGM210P modules are delivered to the customer in cut tape (100 pcs) or reel (1000 pcs) packing with the dimensions below. All di- mensions are given in mm unless otherwise indicated.

  • Page 41: Certifications

    This section details the regulatory certification status of MGM210P modules in various regions. MGM210P modules are also referred to by their model name MGM210P32A. The address for the module manufacturer and certification applicant is: SILICON LABORATORIES FINLAND OY Alberga Business Park, Bertel Jungin aukio 3, 02600 Espoo, Finland 11.1 Qualified Antennas...
  • Page 42 MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Certifications FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specif- ic operating instructions for satisfying RF exposure compliance. This transmitter meets the Mobile requirements at a distance of 20 cm and above from the human body, in accordance to the limit(s) exposed in the RF Exposure Analysis.
  • Page 43 MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Certifications End Product Labeling MGM210P modules are labeled with their own FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the final end product must be labeled in a visible area with the following: "Contains Transmitter Module FCC ID: QOQGM210P"...

  • Page 44: Ised - Canada

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Certifications 11.4 ISED - Canada ISED This radio transmitter (IC: 5123A-GM210P) has been approved by Innovation, Science and Economic Development Canada (ISED Canada, formerly Industry Canada) to operate with the embedded antenna and with the antenna type(s) listed in Section 11.1 Qualified Antennas, with the maximum permissible gain indicated.
  • Page 45 MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Certifications ISED (Français) Le présent émetteur radio (IC: 5123A-GM210P) a été approuvé par Innovation, Sciences et Développement Économique Canada (IS- ED Canada, anciennement Industrie Canada) pour fonctionner avec l'antenne intégrée et le ou les types d'antenne énumérés à la sec- tion 11.1 Qualified Antennas, avec le gain maximal admissible indiqué.

  • Page 46: Mic - Japan

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Certifications 11.5 MIC - Japan The MGM210P22A low power variants are certified in Japan with number 020-190253. Since September 1, 2014 it is allowed (and highly recommended) that a manufacturer who integrates a radio module in their host equipment places the certification mark and certification number on the outside of the host equipment.

  • Page 47: Kc - South Korea

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Certifications 11.6 KC - South Korea The MGM210P22A low-power variants have a RF certification for import and use in South Korea. Their certification number is R-C- BGT-GM210P. When integrating the RF-certified module, an end-product is exempted from doing the RF emission testing as long as the recommen- ded design guidance is followed, and the approved antennas are used.

  • Page 48: Revision History

    MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Revision History 12. Revision History Revision 1.2 October, 2021 • Renamed Regulatory Certifications section in 1. Features for improved readability. • Updated the Security column in Table 2.1 Ordering Information on page • Added low frequency crystal related information to 3.1 Block Diagram.
  • Page 49 MGM210P Wireless Gecko Multi-Protocol Module Data Sheet Revision History Revision 1.0 January, 2020 • Corrected LETIMER's lowest power mode in front page block diagram from EM2 to EM3 • Added RF Pin to front page block diagram • Removed MGM210P0xxxxxx part numbers from Ordering Information table •...
  • Page 50 Note: This content may contain offensive terminology that is now obsolete. Silicon Labs is replacing these terms with inclusive language wherever possible. For more information, visit www.silabs.com/about-us/inclusive-lexicon-project Trademark Information Silicon Laboratories Inc. , Silicon Laboratories , Silicon Labs , SiLabs...
