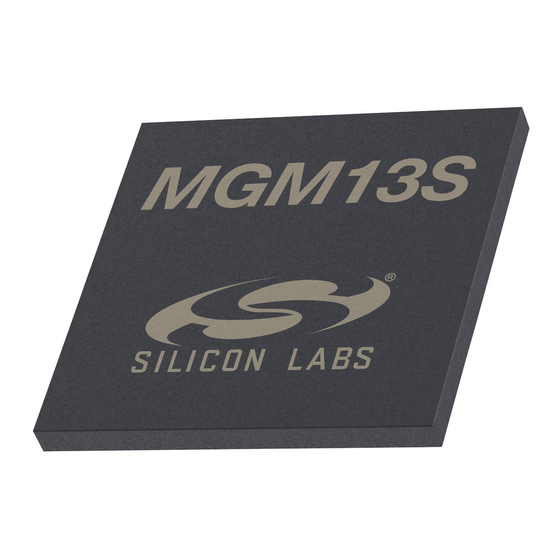

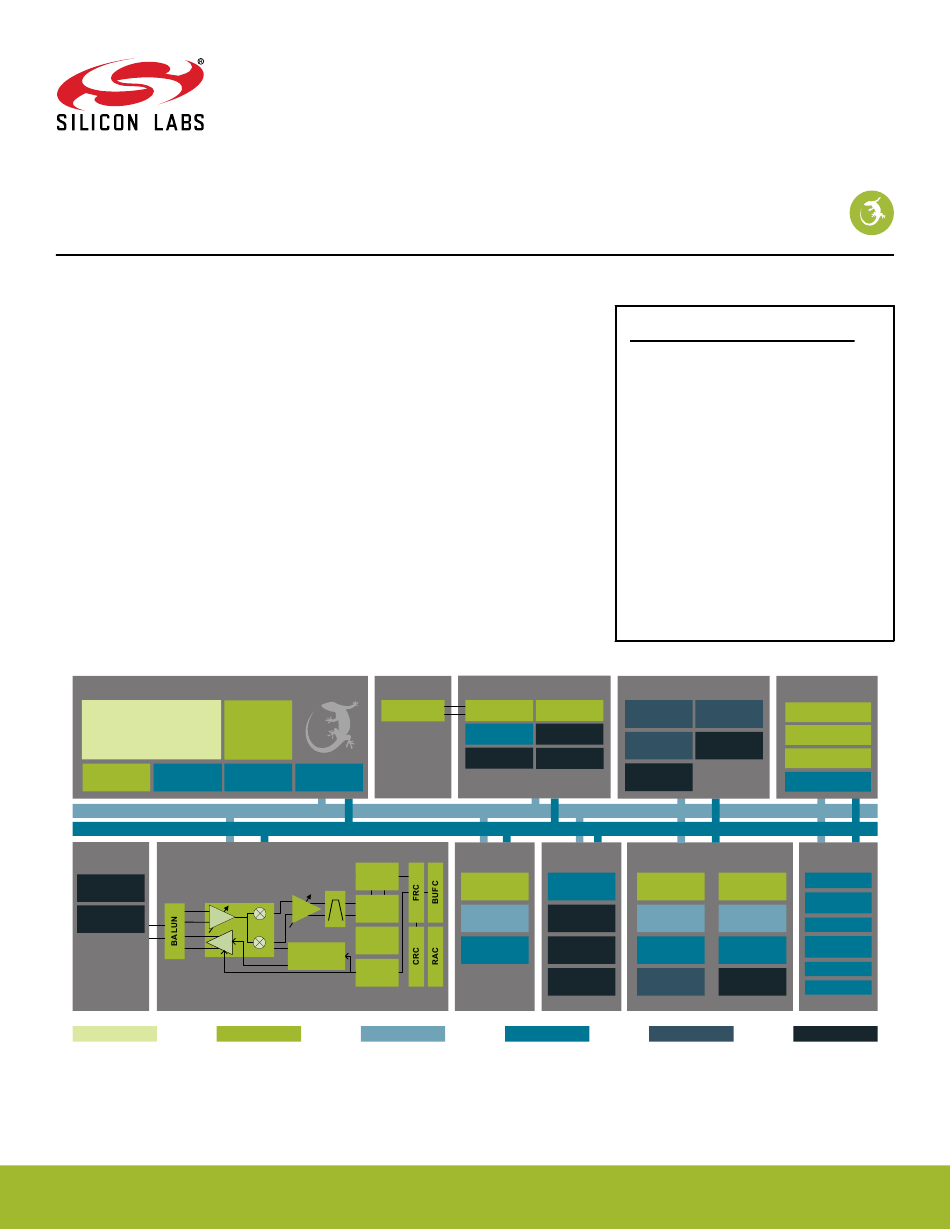

MGM13S Mighty Gecko SiP 模块 数据表
MGM13S 是 Silicon Labs 首款适用于 802.15.4 Mesh 和多协议网络的 SiP 模块解决方案，支持
Bluetooth 5.0 LE（包括 2 Mbps、1 Mbps 和编码 LE PHY）。
基于 EFR32MG13 Mighty Gecko SoC 的 MGM13S 采用 6.5 mm × 6.5 mm 封装尺寸，可提供强大的
RF 性能、低能耗、各种 MCU 外围设备、适用于各个地区和国家的监管测试证书，以及简化的开发
体验。结合同样由 Silicon Labs 提供的认证软件堆栈和强大的工具，MGM13S 可以最大程度地减少
为产品增加 Zigbee、Thread、Bluetooth 5.0 LE 或多协议连接相关的区域要求、工程工作和开发成
本，从而缩短产品上市时间。
MGM13S 面向广泛的应用，包括：
• IoT 多协议端节点设备和网关
• 联网家庭
• 照明
• 健康和保健
• 测量
• 建筑自动化及安全
Core / Memory
ARM Cortex
TM
M4 processor
Flash Program
with DSP extensions, FPU and MPU
ETM
Debug Interface
RAM Memory
Antenna
Chip Antenna
LNA
Matching
RF Frontend
PA
Lowest power mode with peripheral operational:
EM0—Active
silabs.com | Building a more connected world.
Crystal
38.4 MHz
Memory
LDMA
Controller
Radio Transceiver
DEMOD
I
PGA
IFADC
AGC
Q
Frequency
Synthesizer
MOD
EM1—Sleep
EM2—Deep Sleep
Clock Management
H-F Crystal
H-F
Oscillator
RC Oscillator
Auxiliary H-F RC
L-F Crystal
Oscillator
Oscillator
L-F
Ultra L-F RC
RC Oscillator
Oscillator
32-bit bus
Peripheral Reflex System
Serial
I/O Ports
Interfaces
External
USART
Interrupts
Low Energy
General
TM
UART
Purpose I/O
I
2
C
Pin Reset
Pin Wakeup
EM3—Stop
主要特点
• Zigbee、Thread、BLE 或多协议连接
• 天线或 RF 引脚版本
• TX 功率高达 +18 dBm
• 在 1 Mbps 时，dBm BLE RX 灵敏度为
-94.1
• -101.5 dBm 802.15.4 RX 灵敏度
• 32 位 ARM® Cortex®-M4 内核为 38.4
MHz
• 512/64 kB 闪存/RAM 记忆体
• 强化的安全功能
• 广泛的 MCU 外围设备选择
• 集成直流转换器
• 32 个 GPIO 引脚
• 6.5 mm × 6.5 mm × 1.4 mm
Energy Management
Voltage
Voltage Monitor
Regulator
DC-DC
Power-On Reset
Converter
True Random
Number Generator
Brown-Out
Detector
Timers and Triggers
Timer/Counter
Protocol Timer
Low Energy
Low Energy
Timer
Sensor Interface
Pulse Counter
Watchdog Timer
Real Time
Counter and
Cryotimer
Calendar
EM4—Hibernate
Other
CRYPTO
CRC
SMU
Analog I/F
ADC
Analog
Comparator
IDAC
Capacitive
Touch
VDAC
Op-Amp
EM4—Shutoff
Rev. 1.0
