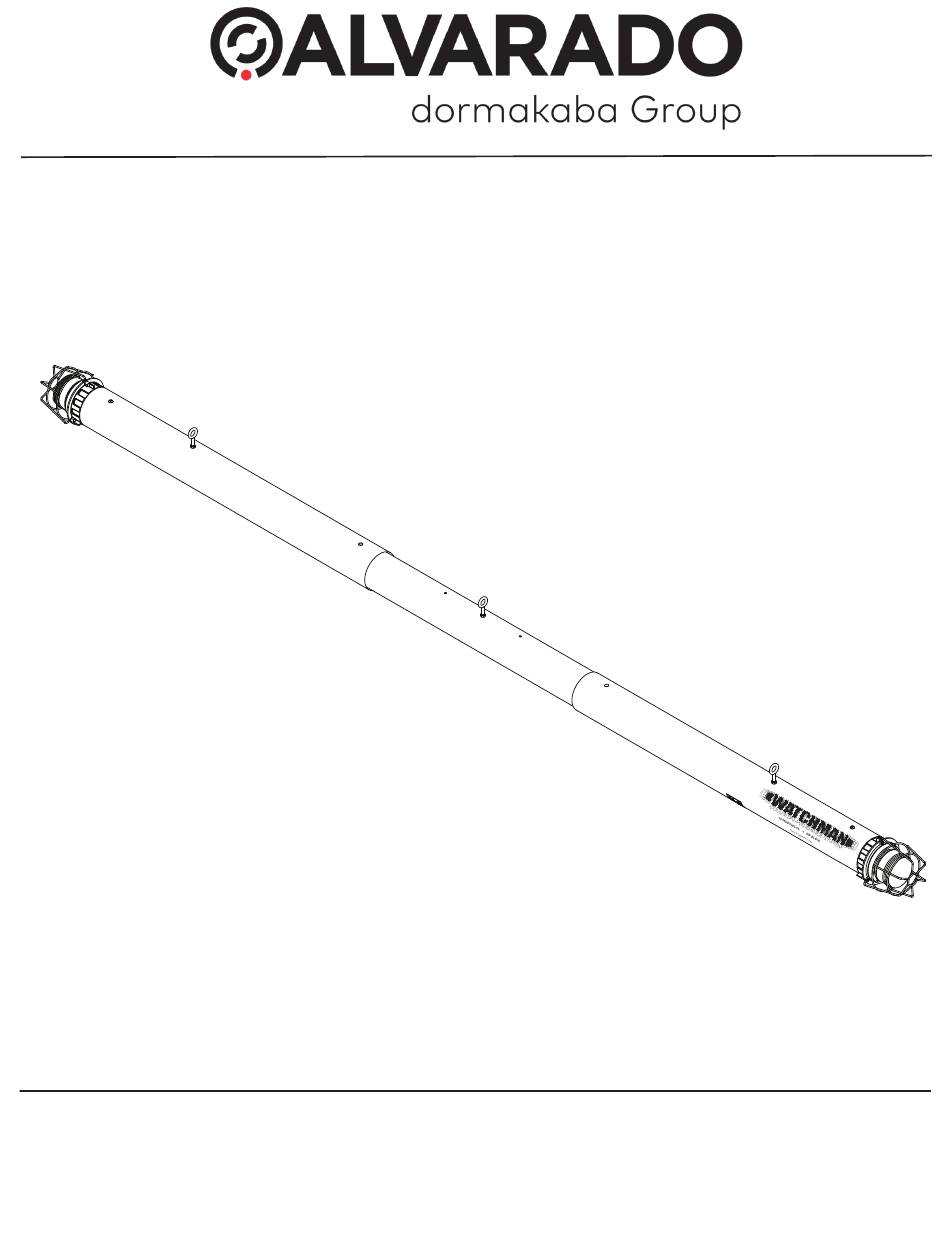

- Page 1 WATCHMAN Collision Avoidance System Installation Instructions Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com PID1244R6-6...
-
Page 2: Table Of Contents
WATCHMAN Installation Instructions Contents Contents..................................2 Safety Icons..................................2 Safety Precautions................................2 Function................................... 3 Parts List..................................3 Additional Required Items (Not Included)........................3 Installation Steps................................3 Tools Required................................. 3 Installation Instructions..............................4 Weatherization Instructions............................. 4 Battery Installation. -
Page 3: Function
WATCHMAN Installation Instructions Function The Watchman serves as a visual and audio deterrent that warns forklift drivers and management of potential collisions between forklifts and fixtures before they happen. The Watchman installs in front of overhead doors, racking or virtually any fixture in a factory or warehouse. -
Page 4: Installation Instructions
WATCHMAN Installation Instructions Installation Instructions 1) Using a 5/32" hex wrench, secure the Main End cap onto the Left End tube. 2) Slide the Left End tube onto the Center tube. 3) Pull the cable harness from the Main End cap through the length of the tube. 4) Slide the Right End tube onto the Center tube &... -
Page 5: Battery Installation
WATCHMAN Installation Instructions Battery Installation NOTE Fig. 3 Fig. 3 Phillips Screw Battery installation is only applicable to battery- powered models. For AC-powered models, skip to the Placement and Mounting section below. 1. Using a 5/32" Allen wrench, remove the screw securing the Main End cap to the tube. -
Page 6: Ac Power Connection
WATCHMAN Installation Instructions Placement and Mounting (cont.) NOTE There are many methods of mounting the Watchman. The following instructions assume that the recommended suspension hardware is being used. Instructions on the use of other suspension hardware and methods are outside the scope of this manual. -
Page 7: Dc Power Connection
WATCHMAN Installation Instructions DC Power Connection Low-voltage (+12VDC @ 1A) can be routed directly to the Watchman. Follow the instructions listed in AC Power Connection to locate the positive and negative power terminals and run low-voltage wire to the Watchman. 1. -
Page 8: Low-Battery Alert
WATCHMAN Installation Instructions Low-Battery Alert Under normal usage, fresh batteries will last approximately 1.5 - 2 years. When the batteries are in need of replacement, the Watchman will begin to chirp once every (5) minutes. Due to operational variables, it is not possible to calculate how long the Watchman will operate after the low-battery alert begins. -
Page 9: Cleaning And Maintenance
WATCHMAN Installation Instructions Cleaning and Maintenance Use and all-purpose cleaner and damp cloth to clean the Watchman unit. Perform the following maintenance steps on a quarterly basis: • Check all suspension hardware (including the Watchman's eye bolts). Tighten or replace if necessary. •... -
Page 10: Ce Declaration Of Conformity
WATCHMAN Installation Instructions CE Declaration of Conformity Page 10 For Assistance: support@alvaradomfg.com (909) 591-8431 PID1244R6-6... -
Page 11: Revision History
WATCHMAN Installation Instructions Revision History Revision Date Author Description 11/18/13 A. Flores CE compliance. Imported to new layout. 4/29/15 A. Flores Updated parts list. Low-Battery Alert operational status. 3/05/16 A. Flores Changed AC Power Cord length to 25'. 9/28/18 C. Maynez Added Troubleshooting. - Page 12 WATCHMAN Installation Instructions Page intentionally left blank. Page 12 Installation Instructions support@alvaradomfg.com (909) 591-8431 www.alvaradomfg.com...
- Page 13 WATCHMAN Installation Instructions Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com © 2020 Alvarado Manufacturing Company, Inc. This work may not be reproduced, published or redistributed, in whole or in part, without the express prior written permission of Alvarado. Installation Instructions Page 13 support@alvaradomfg.com...
