Kettler VARIO DUMBBELLS SELECT 55 Assembly & System Adjustments

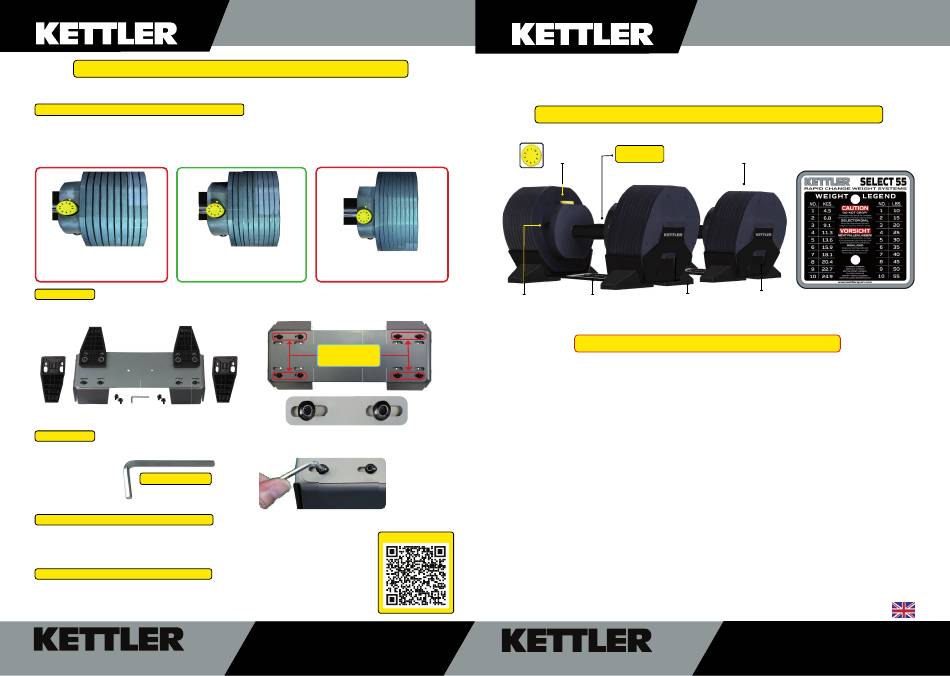

DUMBBELL ADJUSTMENT GUIDE
FOR SMOOTH & ACCURATE WEIGHT PLATE SELECTION
STEPS TO RESOLVE THE FOLLOWING
+ Selector dial will not push down and lock into place.
+ Selector dial feels tight or will not turn easily.
+ Extra weight plate sticks when the Dumbbell Handset is removed from Cradle.
+ Weight plates are too widely spaced or too closely spaced.
CORRECT SPACING CORRECT SPACING
CRADLE SPACING TOO WIDE
Weight plates move freely Weight plates have a thin gap
when in Cradle but don't move freely
STEP ONE
--------------------- Remove Dumbbell Handset and turn the Cradle over. Using an M4 Allen Key remove the Cradle Feet
Bolts and Cradle Feet to gain access to the Cradle adjustments Bolts.
STEP TWO
--------------------- Using a M4 Allen Key loosen the Cradle Adjustment Bolts at one end of the Cradle just enough
to allow you to move the Cradle inwards or outwards as required.
M4 ALLEN KEY
IF CRADLE SPACING TOO WIDE
Push the floating Cradle end slightly inwards. Tighten Bolts and replace Dumbbell
Handset and check that the gap between the plates is the correct spacing and test on
all dial settings. If not correct, repeat adjustment steps.
IF CRADLE SPACING TOO CLOSE
Move slightly apart the floating Cradle end outwards, opening a slight gap between the
plates. Tighten bolts and replace Dumbbell Handset check that the gap between the plates
is the correct spacing and test on all dial settings. If not correct, repeat adjustment steps.
RAPID CHANGE WEIGHT SYSTEMS
CRADLE SPACING TOO CLOSE
Cant remove weights and
selector dial won't turn
Adjustment bolts
in slotted holes
Other languages
SERVICE
CENTRE
www.kettlersport.com

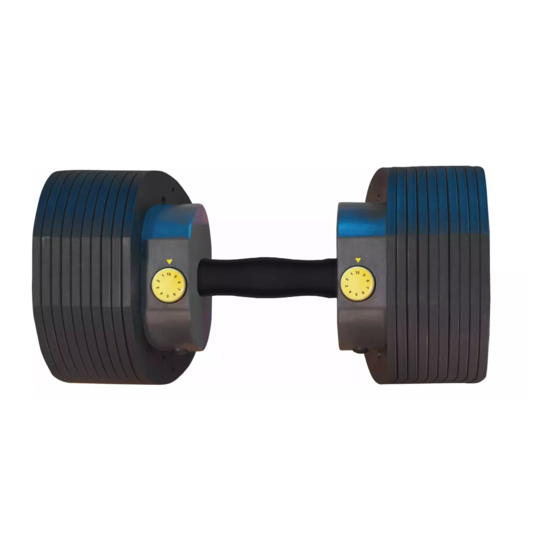

VARIO DUMBBELLS SELECT 55
ASSEMBLY & SYSTEM ADJUSTMENTS
Weight
Contoured Grips
Selector Dial
Weight Selector
Weight Legend
Release Button
USER SAFETY PRECAUTIONS
To avoid possible injury, all users should read and understand these
instructions before using any Vario Systems.
Consult a medical doctor or healthcare professional to be cleared by them for exercise and to determine the
1.
exercises appropriate for you, before undertaking exercise with Vario Select Systems.
If you experience any pain or dizziness, stop exercise immediately and consult a medical doctor.
2.
Perform any exercise with the correct technique – consult a personal trainer or healthcare professional for
3.
guidance if unsure of technique or your personal exercise parameters.
Vario Select Systems are designed for home use only and are not suitable or warranted for commercial use.
4.
Understand how to select the desired weight with the Vario System, see page 2 following.
5.
Never touch the weight selector release button or move the selector dial while the Vario System product is out
6.
of the cradle, doing so may release weight plates from the handset and cause catastrophic injury.
Never use Vario Systems if they are not functioning properly.
7.
Never drop, throw or strike together any Vario System, this will void warranty and could cause permanent
8.
damage.
Take personal responsibility to ensure your safety and the safety of those around you while using and storing
9.
Vario Systems.
This appliance can be used by children aged from 14 years and above and persons with reduced physical,
10.
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
US PATENT NUMBERS: 9643042 & 10166427 BRITISH PATENT NUMBERS: 2911752 & 2956218
BREVETT PATENT NUMBERS:. 502017000140462 & 502019000108103
4
RAPID CHANGE WEIGHT SYSTEMS
Ten x 2.5 lb / 1.13 kg
*Antimicrobial
Weight Plates per side
Patented Handset
Handset
Cradle
Cradle Feet
www.kettlersport.com
Trisport AG, Bösch 67,
6331 Hünenberg, Switzerland
Article number: EQ1051-100
UPDATED - 22 0721
