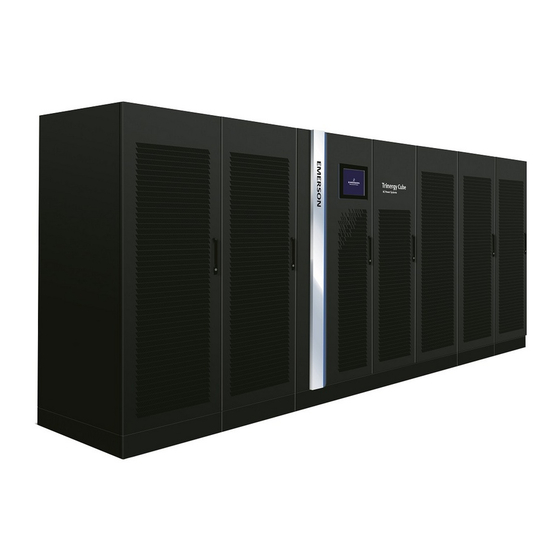

Vertiv Liebert Trinergy Cube User Manual

Uninterruptible power supply
Hide thumbs Also See for Liebert Trinergy Cube:
Table of Contents

Advertisement

Quick Links

Liebert® Trinergy Cube
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liebert Trinergy Cube and is the answer not in the manual?

Questions and answers

Related Manuals for Vertiv Liebert Trinergy Cube

Summary of Contents for Vertiv Liebert Trinergy Cube

  • Page 1 Liebert® Trinergy Cube User Manual...
  • Page 2 ™ Liebert Trinergy Cube UNINTERRUPTIBLE POWER SUPPLY USER MANUAL 10H52243UM60 - rev. 6...
  • Page 3 Liebert Trinergy™ Cube All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts, are reserved. Transgressors will be liable for damages. All rights, including rights deriving from patent license or registration of utility model or design, are reserved. Delivery subject to availability.

  • Page 4: Table Of Contents

    Liebert Trinergy™ Cube 1. INTRODUCTION......................... 5 1.1. Notes to the CE Declaration of Conformity ....................5 1.2. Symbols and pictograms ............................5 1.3. Terms used ..................................5 1.3.1. Service bypass ......................................5 1.3.2. Static bypass switch................................... 5 1.3.3. Qualified personnel....................................5 1.3.4.
  • Page 5 Liebert Trinergy™ Cube Page 4 User Manual - 10H52243UM60 - rev. 6 - 12/2020...

  • Page 6: Introduction

    Additional information regarding adherence to these directives is included in the appendices NSR and EMC to the Declaration of Conformity. If needed, the Declaration of Conformity can be requested from Vertiv. 2011/65/EU Directive of the council for adapting the legal regulations of member states on the restriction of the use of certain hazardous substances that can be used in the manufacture of electrical and electronic equipment.

  • Page 7: Terms Used

    Liebert Trinergy™ Cube INTRODUCTION 1.3. Terms used 1.3.1. Service bypass A switch that provides continuous supply to the load via the bypass input power line during maintenance work; also referred to as the maintenance bypass. 1.3.2. Static bypass switch A thyristor switch which connects the load directly to the power line; also referred to as a static switch or static bypass.

  • Page 8: Operating Modes

    OPERATING MODES Liebert Trinergy™ Cube 2. OPERATING MODES 2.1. Functions Trinergy™ Cube incorporates the three existing standard topologies into one transformer-free UPS: Maximum Power Control mode (IEC 62040-3 VFI): This is the double conversion mode which provides the highest level of power conditioning. It protects the load from all types of electrical network disturbances that would use a greater amount of energy.
  • Page 9 Liebert Trinergy™ Cube OPERATING MODES Dynamic Online - High Efficiency & Power Conditioning mode (IEC 62040-3 VI): This mode compensates for output load THDi, output load PF. It reduces line power disturbances such as sags and swells. The load is fed by the bypass line, and the inverter works as an active filter, which compensates for the reactive power required by the load.

  • Page 10: Special Features

    OPERATING MODES Liebert Trinergy™ Cube Maintenance bypass In this operating mode, the connected loads are supplied directly with line power. The touch screen is disabled. Maintenance bypass is used to supply connected loads during maintenance work on the UPS (see Fig. 5 - on page 9).

  • Page 11: Modern Technology

    Liebert Trinergy™ Cube OPERATING MODES 2.2.5. Modern technology • Interfaces with software for all operating systems • IGBT power transistors • Highly integrated digital electronics (ASIC) • Especially suited for computer loads The UPS can also be used as a frequency converter for 50/60 Hz or vice versa. 2.3.

  • Page 12: Components

    OPERATING MODES Liebert Trinergy™ Cube 2.3.1. Components Each core in the system consists of the following components: • Rectifier - Provides regulated DC to inverter and booster/charger • Inverter - Provides controlled AC output to the critical load • Booster/charger - Charges the battery when line power is present. Supplies the inverter from the battery when line power has failed •...

  • Page 13: Connecting The Batteries

    Liebert Trinergy™ Cube OPERATING MODES 2.4.3. Connecting the batteries Before the system starts, make sure that UPS battery connection polarity is correct. Wrong connections can endanger operator safety and damage the system. This operation must be carried out by authorized personnel and with the external battery disconnected.

  • Page 14: Operating Instructions

    OPERATING INSTRUCTIONS Liebert Trinergy™ Cube 3. OPERATING INSTRUCTIONS Trinergy™ Cube features several different operating modes, which are listed in para. 2.1 on page 7. Trinergy™ Cube automatically selects the most suitable operating mode for the application. When Trinergy™ Cube is switched on, as described in Procedure 1, the touch screen displays the “System in bypass”...
  • Page 15 Liebert Trinergy™ Cube OPERATING INSTRUCTIONS Figure 8 - Passcode Figure 9 - Stop or Start Inverter Page 14 User Manual - 10H52243UM60 - rev. 6 - 12/2020...

  • Page 16: Single Ups - Switching To System Bypass

    OPERATING INSTRUCTIONS Liebert Trinergy™ Cube Figure 10 - Screen overview of the system in VFI mode 3.2. Single UPS – Switching to system bypass With the system running in the selected operating mode, press the “CONTROL” button to return to bypass mode.

  • Page 17: Operating Mode Selection

    Liebert Trinergy™ Cube OPERATING INSTRUCTIONS The UPS will switch to the “System in bypass” condition only when all the “STOP” buttons have been pressed. Under these conditions the load is supplied by the bypass, and all automatic functions, including battery operation, are disabled.

  • Page 18: Ups Switching Procedures

    UPS SWITCHING PROCEDURES Liebert Trinergy™ Cube 4. UPS SWITCHING PROCEDURES Procedures refer to para. 2.3 on page 10. 4.1. Procedure 1: UPS TURN-ON PROCEDURE Starting with the UPS completely de-energized, this procedure explains how to switch ON the UPS and set it to normal operation mode.

  • Page 19: Procedure 3: Transfer From Normal Mode To Maintenance Bypass Mode

    Liebert Trinergy™ Cube UPS SWITCHING PROCEDURES 4.3. Procedure 3: TRANSFER FROM NORMAL MODE TO MAINTENANCE BYPASS MODE Starting from the UPS in normal operation mode, this procedure explains how to transfer the load to maintenance bypass and shut down the UPS. SINGLE UPS TURN-OFF PROCEDURE STEP ACTION...

  • Page 20: Parallel Operation

    PARALLEL OPERATION Liebert Trinergy™ Cube 5. PARALLEL OPERATION Up to eight units can be connected in parallel to increase power capacity and thus provide more secure power to the load (redundancy). The modules in parallel exchange information via a 25-wire shielded cable. The total load current is shared between the modules.

  • Page 21: Procedure 2: Ups Turn-Off Procedure

    Liebert Trinergy™ Cube PARALLEL OPERATION 5.5. Procedure 2: UPS TURN-OFF PROCEDURE Starting with each UPS in normal mode, this procedure explains how to switch off the UPS. When this procedure is followed completely, the output voltage will be completely turned off, and any load(s) connected to the UPS output will be shut down.

  • Page 22: Procedure 4: Transfer From Maintenance Bypass Mode To Normal Mode

    PARALLEL OPERATION Liebert Trinergy™ Cube 5.7. Procedure 4: TRANSFER FROM MAINTENANCE BYPASS MODE TO NORMAL MODE Starting with each UPS in maintenance bypass, this procedure explains how to turn ON the UPS and to transfer the load to normal mode. Then, after a short period, it selects the appropriate operating mode, which depends on the ambient conditions it has detected.
  • Page 23 Liebert Trinergy™ Cube PARALLEL OPERATION BLANK PAGE Page 22 User Manual - 10H52243UM60 - rev. 6 - 12/2020...

  • Page 24: Maintenance

    MAINTENANCE Liebert Trinergy™ Cube 6. MAINTENANCE Vertiv recommends that regular maintenance checks be carried out on-site by an authorized customer service. 6.1. Limited Life Components The Trinergy™ Cube has a design life well in excess of 10 years. Well-maintained units can continue to provide economic benefits for 20 years or more.

  • Page 25: Taking The Ups Out Of Service

    Liebert Trinergy™ Cube MAINTENANCE Install the protective caps supplied with the I/O BOX on the switch extension bars (see Fig. 11 - on page 24). detail Figure 11 - Protective caps 6.3. Taking the UPS out of service Switch to service bypass •...
  • Page 26 Follow local municipal waste ordinances for proper disposal provisions to reduce the environmental impact of waste electrical and electronic equipment (WEEE). For information regarding the scrapping of this equipment please contact your closest Vertiv Representative. User Manual - 10H52243UM60 - rev. 6 - 12/2020...
  • Page 27 | Vertiv Infrastructure Limited, George Curl Way, Southampton, SO18 2RY, VAT Number: GB188146827 Vertiv and the Vertiv logo are registered trademarks or trademarks of Vertiv Co. All other names and logos referred to are trade names, trademarks, or registered trademarks of their respective owners.
