Installation Instructions

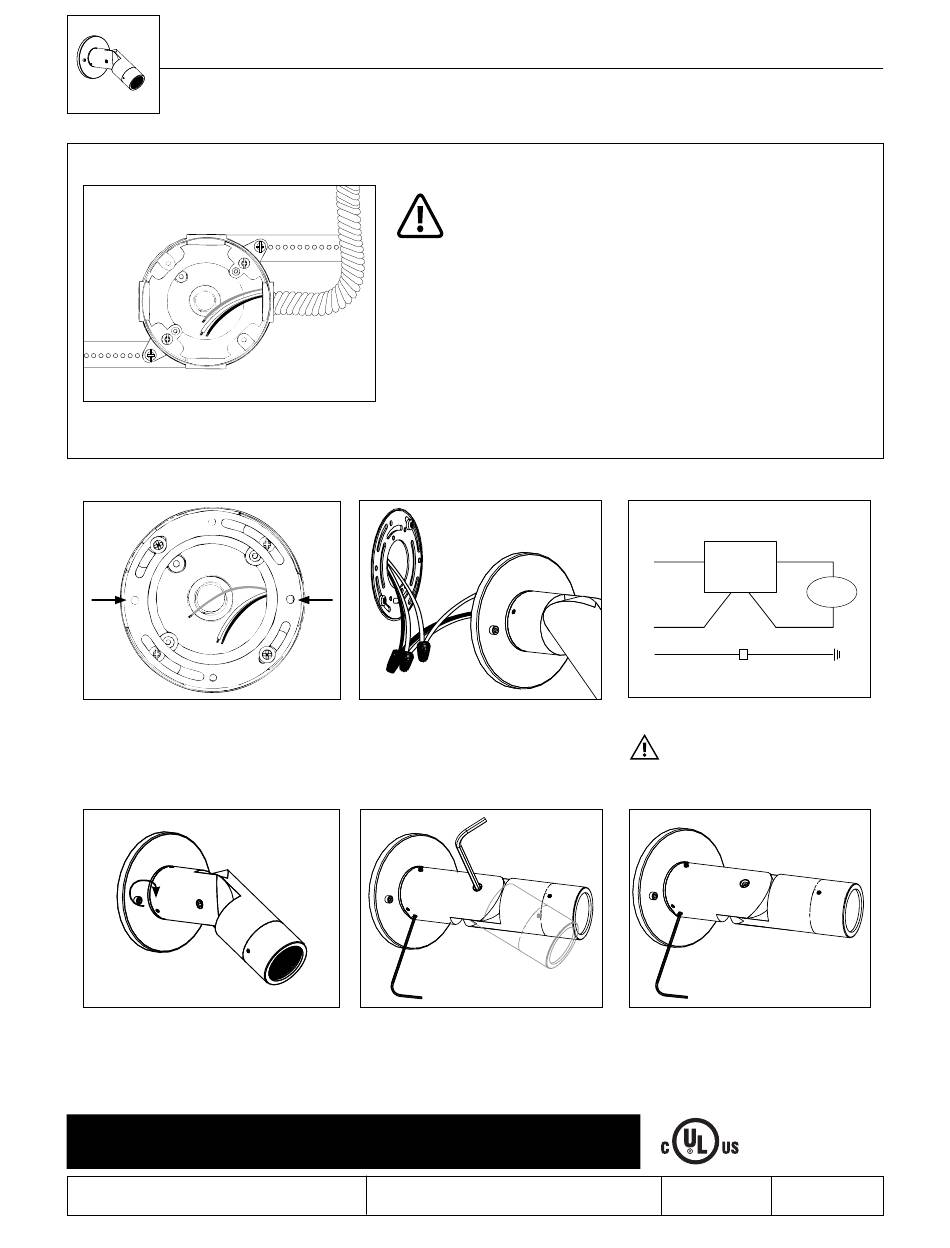

Phase 1 - Rough In
Installation of Back box
1. Install Conduit (By Others) to be used with this
product.
Phase 2 - Finish Installation of Fixture.
1. Install universal mounting ring (supplied with
fixture) using appropriate mounting hardware
(By Others). Align fixture mounting holes to
final mounting position.
3. Use 1/8" Allen wrench to mount fixture with
two (2) #10-24 hex screws to installed back
box. Do not over tighten.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

Additional Info

• Please follow National and Local electrical codes for your
area.
• Suitable for through wire.
• Suitable for installation into combustible materials.
• Rated for 90° C.
2. Install junction box so that front face
is flush with finished wall or ceiling.
2. Pull wires from remote ballast housing
necessary for installation (By Others). Make
two connections from remote ballast
housing to fixture leads using proper wire
connectors (By Others). Connect incoming
ground wire to ground wire provided in
fixture body. See wiring diagram.
4. Use 3/16" Allen wrench to slightly loosen
¼"-28 stainless steel black oxide socket head
cap screw at the knuckle for vertical aiming
purposes. Use 5/64" Allen wrench to loosen
the three (3) #8-32 stainless steel set screws.
Rotate to aim fixture to desired horizontal
location.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
ArtiStar™ Remote
ES16 Metal Halide
3. Connect box to conduit and pull wires for
connections (See Wiring Diagram).
REMOTE
LINE (+)
POWER
SUPPLY
COM (-)
GROUND GROUND
WIRING DIAGRAM
WIRING DIAGRAM
All line voltage connections must be
made in compliance with the National
Electrical Code. Failure to do so will
void warranty.
5. Tighten the three (3) #8-32 stainless steel
set screws and 1/4"-28 stainless steel black
oxide socket head cap screw at the knuckle
to secure all aiming positions.
PRELIMINARY REFERENCE NUMBER
1-26-16 INS132000.2
FIXTURE
