dji MIC User Manual

DJI MIC User Guide
Introduction

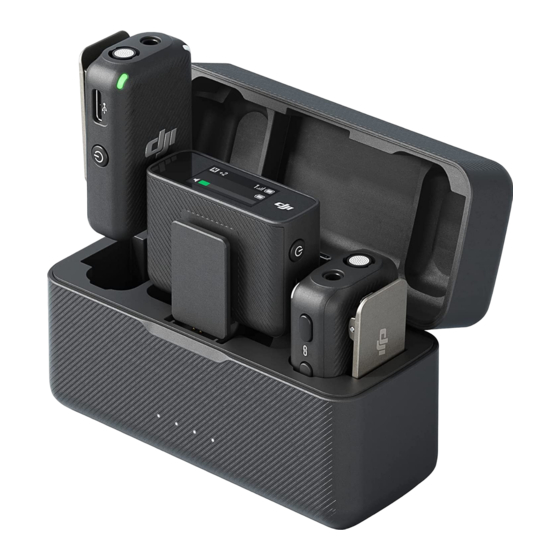

DJI MIC is the dual channel wireless microphone system, including two transmitters and one
receiver, which is able to record two sound source simultaneously. The transmitter has a built-
in microphone, and can be clipped to clothing or any place close to a sound source. The
provided charging case can charge the transmitters and receiver simultaneously.
DJI MIC Transmitter
1. System Status LED
Indicates the battery lever of the transmitter and the connection status with the receiver.
2. Charging and Data Port (USB-C)
For charging and transmitting data with the computer.
3. Power Button
Press and hold to power on/off, press twice to mute.
4. Built-in Microphone
5. 3.5 mm TRS Input
6. Recording Status LED
The LED is solid red when recording audio and is off when is not recoding.
7. Linking Button
Press and hold to start linking. Press once to control shooting after connecting with the
mobile phone.
8. Record Button
Press once to start/stop recording.
9. Charging Dot
Connecting with the charging dot in the charging case to begin charging.
