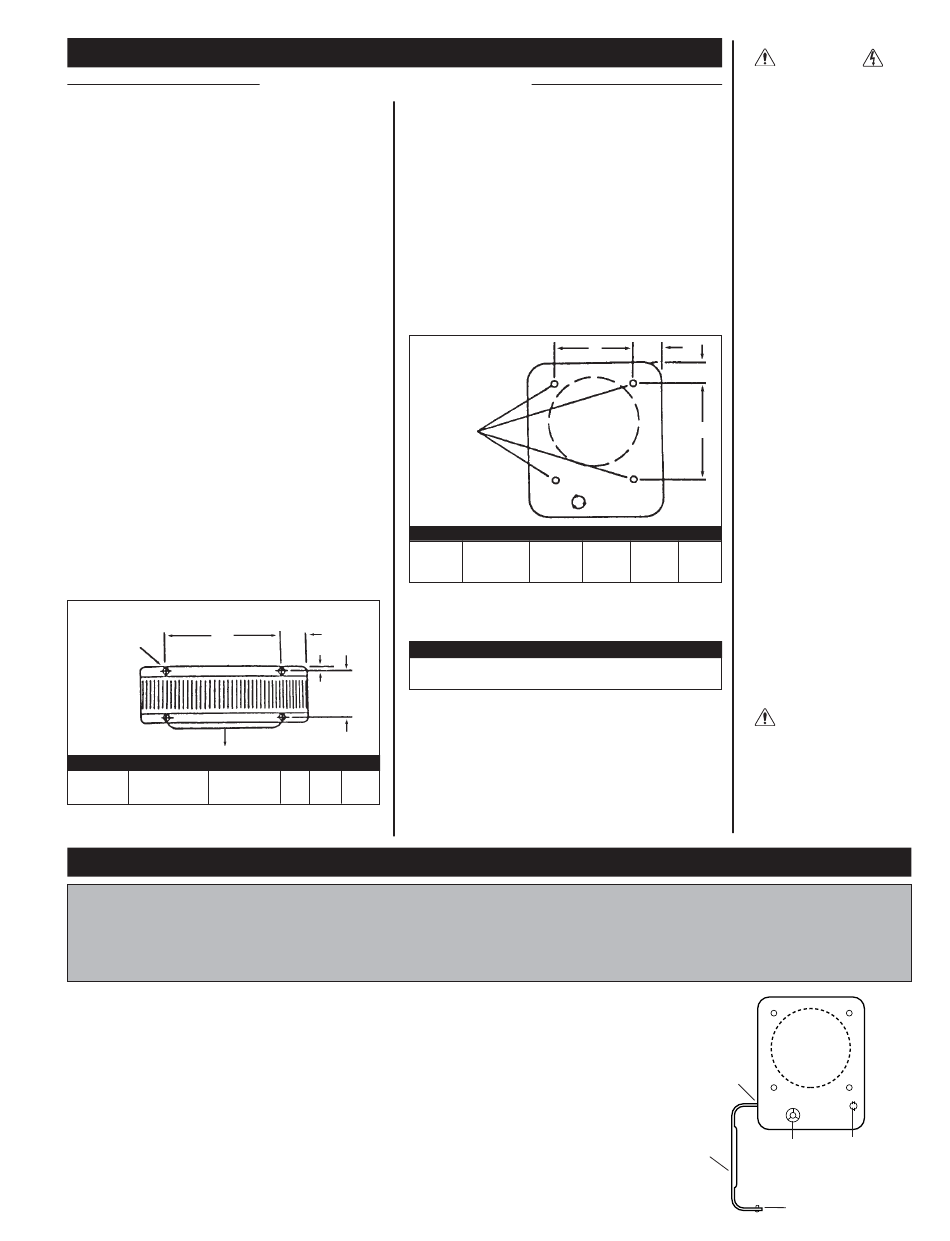

Horizontal Discharge
(See Figure 2 for minimum clearances)
1. Mounting with rod from ceiling or super-structure:
(Figure 6)
a. Remove the four factory installed bolts from the
top of the unit and screw them into the
threaded holes in the back.
b. Install four 5/16-18 threaded rods in holes and
secure in place using lock (jam) nuts.
c. Attach the four mounting rods to the ceiling or
overhead structure and anchor securely.
2. Mounting with optional bolt-on ceiling bracket
(CEKM1): (Figure 2)
a. Bolt mounting bracket on top of unit using
the four factory installed bolts.
b. Suspend the unit from ceiling or overhead
structure using a 1/2 inch threaded rod or bolt,
allowing a minimum 6 inches clearance from the
ceiling. Using lock (jam) nut, anchor securely.
3. Mounting with optional wall hanger arm (CEKWM)
and ceiling bracket (CEKM1): (See Parts List items
#8 & #9)
a. Bolt mounting bracket on top of unit using four
factory installed bolts.
b. Attach the wall hanger arm to wall using four 3/8
inch bolts or masonry fasteners.
c. Suspend the unit from hanger arm using 1/2
inch bolt. Place the rubber washer provided
between the mounting brackets.
5/16-18
Threaded
A
Mounting
Holes
FRONT
MOUNTING ROD DIMENSIONS
UNIT KW
ROD THREAD
A
5.0
5/16-18
6" (15.2CM)
Figure 6
Horizontal discharge rod spacing
CAUTION: TO AVOID ELECTRICAL SHOCK, BE SURE ELECTRICITY IS TURNED OFF AT ELECTRICAL PANEL BOARD BEFORE WIRING. ALL
WIRING MUST BE DONE IN ACCORDANCE WITH LOCAL CODES AND THE HEATER MUST BE GROUNDED AS A PRECAUTION AGAINST
POSSIBLE ELECTRIC SHOCK. IN ABSENCE OF LOCAL CODES, FIELD WIRING TO THE UNIT SHALL COMPLY WITH CURRENT PROVISIONS
OF THE AMERICAN NATIONAL ELECTRICAL CODE OR YOUR NATIONAL ELECTRICAL CODE, AS APPLICABLE.
NOTE: Connect heater only to a line with the voltage and frequency specified on the nameplate.
Branch Circuit Connections (Power)
1. Wiring compartment access door is hinged. To open, turn single screw on the side until
the door swings away from the heater (See Figure 9). Do not try to remove screw.
2. A knockout is provided in the back of the unit for field wiring (See Figure 9). This is a
multiple diameter knockout. Use the diameter that fits the required conduit size.
3. A ground terminal is provided near the junction block for field wiring. The ground should
be connected before any other connections.
4. The junction block is equipped with box terminals sized to accept the correct power
supply wire. Wire rated at 600 volts and 75˚C is satisfactory for branch circuit
connections. Either copper or aluminum conductors may be used. NOTE: the center
box terminal on the three pole junction block is used only for 3-phase operation.
5. Each heater has a wiring diagram on the inside of the access door. Consult this
diagram before making any field connections.
Installation Instructions
Mounting the CEH Unit Heater
Vertical Discharge
(See Figure 5 for minimum clearances)
1. Install four 5/16-18 threaded rods into the
threaded holes in the back of the heater and
secure in place using lock (jam) nuts (Figure 7).
2. Attach the four mounting rods to ceiling or
overhead structure and anchor securely.
NOTE: When mounting for vertical discharge,
position unit so that access door opens away from
nearest wall. This permits maximum access to
wiring compartment (Figures 2 and 5).
5/16-18
Threaded
Mounting
Holes
UNIT KW ROD THREAD
Figure 7
Vertical discharge rod spacing
C
MAXIMUM MOUNTING HEIGHT (TO BOTTOM OF UNIT)
MODEL
CEH005
D
B
Figure 8
B
C
D
6.75" 4.04"
0.75"
Wiring Instructions
E
BACK
MOUNTING ROD DIMENSIONS
E
F
5.0
5/16-18
6"
9.63"
(15.2 CM) (24.5 CM) (10.3 CM) (5.3 CM)
HORIZONTAL DISCHARGE
9'
WARNING!
Risk of Electrical
Shock. Turn off
all power at the
electrical panel
board supplying
power to the heater
before doing any
electrical wiring.
G
H
F
G
H
4.04"
2.10"
VERTICAL DISCHARGE
10'
WARNING!
Overheating or fire
may occur. DO NOT
place the heater
behind doors.
Hinge
Power
Access Door
Wiring
Knockout
Figure 9
Knockout locations
Turn Captive Fastener
BACK
Control
Wiring
Knockout
3
