  • Page 1 PeakTech 5160 ® Bedienungsanleitung / Operation Manual Lufttemperatur & -Feuchtigkeitsmessgerät / Air Temperature & Humidity Meter...
  • Page 2 1. Safety precautions This product complies with the requirements of the following directives of the European Union for CE conformity: 2014/30/EU (electromagnetic compatibility), 2011/65/EU (RoHS). The following safety precautions must be observed before operation. Damages resulting from failure to observe these safety precautions are exempt from any legal claims whatever: Comply with the warning labels and other info on the equipment.
  • Page 3 Cleaning the cabinet Clean only with a damp, soft cloth and a commercially available mild householder cleanser. Ensure that no water gets inside the equipment to prevent possible shorts and damage to the equipment. Introduction This newly developed instrument measures the current humidity, as well as the current air temperature installed a set of sensors for fast and accurate evaluation of the measurement results.

  • Page 4: Specifications

    3. Specifications Display LCD with automatic backlight R.H.: 10% ~ 99% Measurement Temp. : -10°C ~ 50°C Range (14°F ~ 122°F) R.H.: 0.1 %RH Resolution: Temperatur: 0,1 °C Accuracy %R.H.: +/- 5,0% (at 25°C; 10~30%RH) +/- 3,0% (at 25°C; 30~99%RH) Temperatur: +/- 1°C (+/- 2.6°F)

  • Page 5: Panel Description

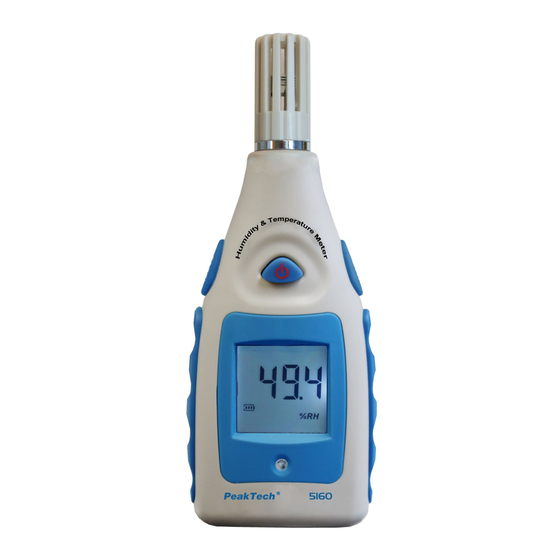

    4. Panel Description 1) Temperature / Humidity Sensor 2.) ON - Power switch 3.) Temp. / Humidity - button 4.) HOLD - button 5.) Brightness sensor 6.) Measured value display 7.) Battery compartment (rear) 8.) Thread for tripod (rear) -13-...
  • Page 6 4.1. Display Symbols This icon indicates the battery status. An empty battery must be replaced as soon as possible and affect the measurement results negatively HOLD Data-Hold: Keeps the current value in display Percent (unit of Relative Humidity) Celsius degree Fahrenheit degree 5.

  • Page 7: Performing Measurement

    6. Performing Measurement General: Temperature measurement: The display shows the air temperature in °C/°F. Humidity measurement: The display shows the relative humidity in %RH. Humidity refers to the amount of water vapor at room or ambient air. To "freeze" the current reading press the "HOLD" - button. The display stops updating the measured values and the "HOLD"...

  • Page 8: Battery Replacement

    7. Battery Replacement If the sign “ ” appears on the LCD display, it indicates that the battery should be replaced. Remove the back cover and open the battery compartment. Replace the exhausted battery with new battery. Batteries, which are used up dispose duly. Used up batteries are hazardous and must be given in the - for this being supposed - collective container.
  • Page 9 7.1. Notification about the Battery Regulation The delivery of many devices includes batteries, which for example serve to operate the remote control. There also could be batteries or accumulators built into the device itself. In connection with the sale of these batteries or accumulators, we are obliged under the Battery Regulations to notify our customers of the following: Please dispose of old batteries at a council collection point or return them to a local shop at no cost.
  • Page 10 This manual is according the latest technical knowing. Technical alterations reserved. We herewith confirm that the unit is calibrated by the factory according to the specifications as per the technical specifications. We recommend to calibrate the unit again, after one year. ® © PeakTech 08/2021 MP/Ehr.
  • Page 11 PeakTech 5165 ® Bedienungsanleitung / Operation Manual Digital Lux Meter...
  • Page 12 1. Safety precautions This product complies with the requirements of the following directives of the European Union for CE conformity: 2014/30/EU (electromagnetic compatibility), 2011/65/EU (RoHS). The following safety precautions must be observed before operation. Damages resulting from failure to observe these safety precautions are exempt from any legal claims whatever: Comply with the warning labels and other info on the equipment.
  • Page 13 Cleaning the cabinet Clean only with a damp, soft cloth and a commercially available mild householder cleanser. Ensure that no water gets inside the equipment to prevent possible shorts and damage to the equipment. Introduction This newly developed instrument measures the current humidity, as well as the current air temperature installed a set of sensors for fast and accurate evaluation of the measurement results.
  • Page 14 3. Specifications Display LCD with automatic backlight 2000 Lux Measurement 2000 to 20000 Lux Range 20000 to 200000 Lux 1 Lux (2000) Resolution: 10 Lux (20000) 100 Lux (200000) Sample rate 1.5 x Second, typically < 10k Lux +/- 4 % rdg. Accuracy >...
  • Page 15 4. Panel Description 1) Light Sensor / Photo Diode 2.) ON - Power switch 3.) Range Switch 4.) MAX/MIN, HOLD-Switch 5.) Brightness sensor (backlight) 6.) Measured value display 7.) Battery compartment (rear) 8.) Thread for tripod (rear) -14-...
  • Page 16 4.1. Display Symbols This icon indicates the battery-charge status. An empty battery must be replaced as soon as possible and affect the measurement results negatively HOLD Data-Hold: Keeps the current value in display Display keeps highest maximum value Display keeps the lowest minimum value 2000 Selected measurement range 20000...
  • Page 17 5.1 Messurment in lm/ft² Press and hold the "Range" button while pressing the "ON" button once to switch the device on and change to lm/ft² at the same time. Select the measuring range with the RANGE-key (3) on the side of the unit The three possible measurement ranges are: Range Display...
  • Page 18 6. Performing Measurement General: To "freeze" the current reading, press "MAX / MIN - HOLD" button. The display stops updating the measured values and displays the "HOLD" symbol. Press the "MAX / MIN - HOLD" button again to switch to the maximum value mode.
  • Page 19 7. Battery Replacement If the sign “ ” appears on the LCD display, it indicates that the battery should be replaced. Remove the back cover and open the battery compartment. Replace the exhausted battery with new battery. Batteries, which are used up dispose duly. Used up batteries are hazardous and must be given in the - for this being supposed - collective container.
  • Page 20 7.1. Notification about the Battery Regulation The delivery of many devices includes batteries, which for example serve to operate the remote control. There also could be batteries or accumulators built into the device itself. In connection with the sale of these batteries or accumulators, we are obliged under the Battery Regulations to notify our customers of the following: Please dispose of old batteries at a council collection point or return them to a local shop at no cost.
  • Page 21 We recommend to calibrate the unit again, after one year. ® © PeakTech 08/2021 MP./Ehr. PeakTech Prüf- und Messtechnik GmbH – Gerstenstieg 4 – DE-22926 Ahrensburg / Germany   +49-(0) 4102- 97398 80 +49-(0) 4102- 97398 99 ...
  • Page 22 PeakTech 5170 ® Bedienungsanleitung / Operation Manual Digital Anemometer...
  • Page 23 1. Safety precautions This product fulfills the requirements of the following directives of the European Community: 2014/30 / EU (electromagnetic compatibility) to 2014/32 / EU (CE marking). The following safety precautions must be observed before operation. Damages resulting from failure to observe these safety precautions are exempt from any legal claims whatever: Comply with the warning labels and other info on the equipment.
  • Page 24 Cleaning the cabinet Clean only with a damp, soft cloth and a commercially available mild householder cleanser. Ensure that no water gets inside the equipment to prevent possible shorts and damage to the equipment. Introduction This new vane anemometer measures air velocity in meters/ second, kilometers/hour, feet/minute, knots and miles per hour, as well as the current air temperature with simultaneous display of these two measured values on the display.
  • Page 25 3. Specifications Display LCD with automatic backlight 0 … 30 m/Sec. 0 … 5860 Ft/min Measurement Range 0 … 55 Knoten Wind speed 0 … 90 km/h 0 … 65 mp/h Min. measurable wind Ca. 0.3 m/s speed -10 … 45°C Measurement Range 14 …...
  • Page 26 4. Panel Description 1) Anemometer probe 2.) ON - Power switch 3.) MAX / AVG Switch 4.) Meas. Unit Switch 5.) Brightness sensor (backlight) 6.) Dual meas. value display 7.) Battery compartment (rear) 8.) Thread for tripod (rear) -13-...

  • Page 27: Display Symbols

    4.1. Display Symbols This icon indicates the battery-charge status. An empty battery must be replaced as soon as possible and affect the measurement results negatively Bargraph for winds peed Display keeps highest maximum value Display shows average wind speed value WINDCHILL Warning for hypothermia ft/min,...
  • Page 28 6. Performing Measurement Press the "MODE" button to switch to the maximum value mode. The meter is now renewed only if the current measured value exceeds the highest previous reading. Press the "MODE" button again to switch to the average mode. The display indicates the average wind speed over the entire measurement.
  • Page 29 7. Battery Replacement If the sign “ ” appears on the LCD display, it indicates that the battery should be replaced. Remove the back cover and open the battery compartment. Replace the exhausted battery with new battery. Batteries, which are used up dispose duly. Used up batteries are hazardous and must be given in the - for this being supposed - collective container.
  • Page 30 7.1. Notification about the Battery Regulation The delivery of many devices includes batteries, which for example serve to operate the remote control. There also could be batteries or accumulators built into the device itself. In connection with the sale of these batteries or accumulators, we are obliged under the Battery Regulations to notify our customers of the following: Please dispose of old batteries at a council collection point or...
  • Page 31 This manual is according the latest technical knowing. Technical alterations reserved. We herewith confirm that the unit is calibrated by the factory according to the specifications as per the technical specifications. We recommend to calibrate the unit again, after one year. ® © PeakTech 06/2020 MP/EHR...
  • Page 32 PeakTech Prüf- und Messtechnik GmbH – Gerstenstieg 4 – DE-22926 Ahrensburg / Germany   +49-(0) 4102-97398 80 +49-(0) 4102-97398 99   info@peaktech.de www.peaktech.de...
  • Page 33 PeakTech 5175 ® Bedienungsanleitung / Operation Manual Digital Schalpegelmessgerät / Digital Sound Level Meter...
  • Page 34 1. Safety precautions This product complies with the requirements of the following directives European Union conformity: 2014/30/EU (electromagnetic compatibility). The following safety precautions must be observed before operation. Damages resulting from failure to observe these safety precautions are exempt from any legal claims whatever: Comply with the warning labels and other info on the equipment.
  • Page 35 Cleaning the cabinet Clean only with a damp, soft cloth and a commercially available mild householder cleanser. Ensure that no water gets inside the equipment to prevent possible shorts and damage to the equipment. Introduction This compact sound level meter is designed for the measurement of sound sources in decibels by A-weighting (dBA), which is based on the human ear.
  • Page 36 3. Specifications Display 5-digit LCD Measurement Range 40 dB bis 130 dBA Weighting 31.5 Hz … 8.5 kHz Frequency Range Linearity 50 dB Fast (125 ms) Measuring Rate Slow (1 s) Accuracy +/- 1.5 dB ½ in – Electret Condenser Microphone Self calibration time 10 Sek.
  • Page 37 4. Panel Description 1) Wind shield / microphone 2.) ON/OFF - Power switch 3.) Fast/Slow Switch 4.) MAX/MIN Switch 5.) LED for Alarm function 6.) Meas. value display 7.) Battery compartment (rear) 8.) Thread for tripod (rear)
  • Page 38 4.1. Display Symbols This icon indicates the battery-charge status. An empty battery must be replaced as soon as possible and affect the measurement results negatively FAST Fast time weighting SLOW Slow time weighting OVER Over-range indication Display keeps highest maximum value Display keeps lowest minimum value Auto-Power-Off deactivated Measurement unit Decibel in A-weighting...
  • Page 39 6. Performing Measurement General: Turn off the machine using the ON button (2). Press the "FAST / SLOW" button (3) to switch the desired term evaluation. Press the "MAX / MIN" button (4) to switch to the maximum value mode. The meter is now renewed only if the current measured value exceeds the highest previous reading.
  • Page 40 7. Alarm dB function 1.) Press “ ”-key to power on. Press the “MAX/MIN” –key 3 times, LCD display “OVER”. The unit is into MAX, alarm mode (Fig. 4). When the sound level will be detect over the set value, the unit will alarm &...
  • Page 41 2.) Alarm Set the dB value and select the alarm mode: Press the " MAX/MIN" button to turn the unit on. Press the "MAX/MIN" button twice, then press and hold the MAX/MIN button until the display shows a stable value. Press the "FAST/SLOW"...
  • Page 42 8. Battery Replacement If the sign “ ” appears on the LCD display, it indicates that the battery should be replaced. Remove screws on the back cover and open the case. Replace the exhausted battery with new battery. Batteries, which are used up dispose duly. Used up batteries are hazardous and must be given in the - for this being supposed - collective container.
  • Page 43 8.1. Notification about the Battery Regulation The delivery of many devices includes batteries, which for example serve to operate the remote control. There also could be batteries or accumulators built into the device itself. In connection with the sale of these batteries or accumulators, we are obliged under the Battery Regulations to notify our customers of the following: Please dispose of old batteries at a council collection point or...
  • Page 44 We recommend to calibrate the unit again, after one year. ® © PeakTech 01/2021/MP/HR PeakTech Prüf- und Messtechnik GmbH – Gerstenstieg 4 – DE-22926 Ahrensburg / Germany   +49-(0) 4102-97398 80 +49-(0) 4102-97398 99 ...
