Exmark NAVIGATOR Setup Instructions page 2

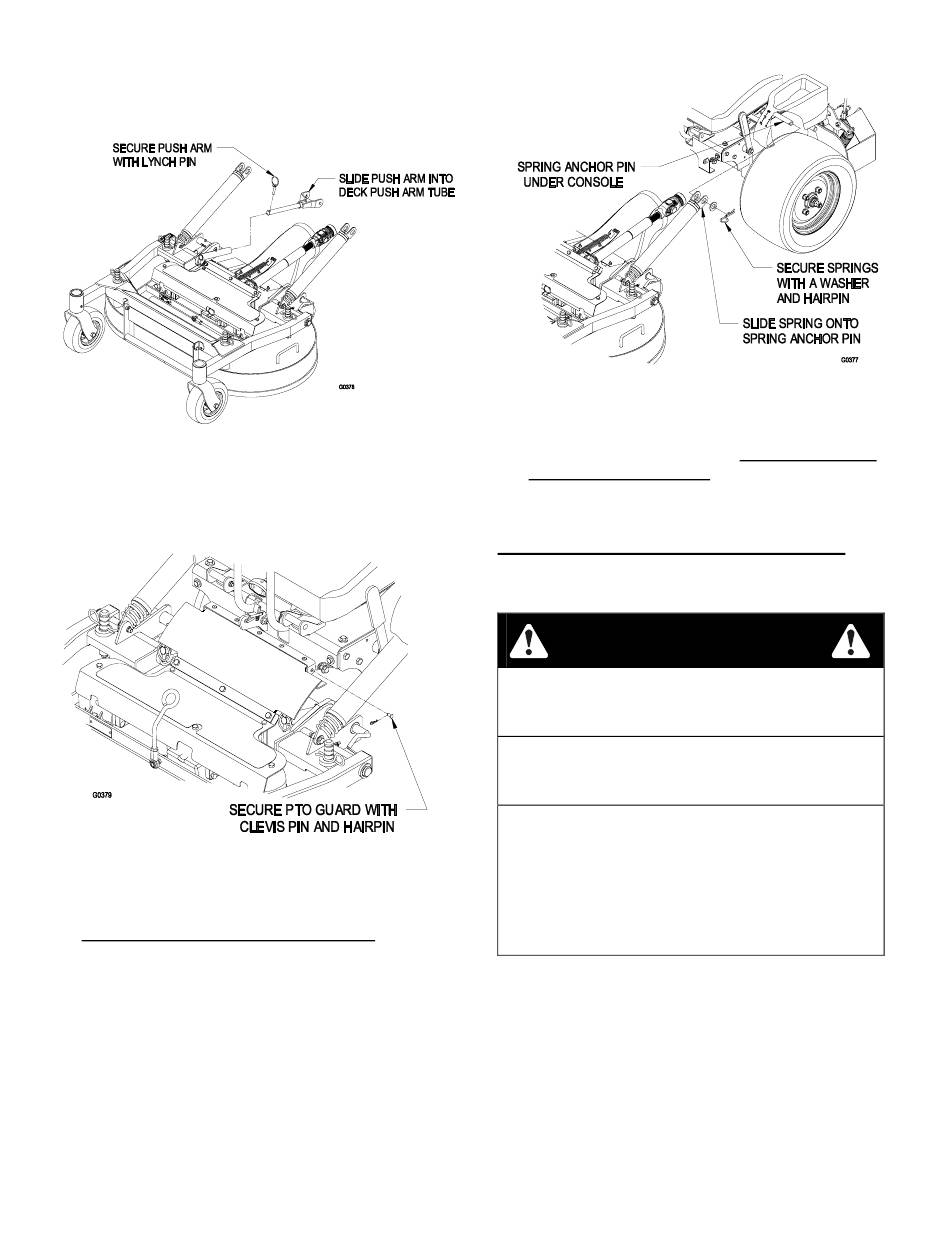

4. Align deck push arm tubes to tractor push arms
and push deck rearward. Secure push arms with
lynch pins on left and right sides of the unit. See
Figure 3.
FIGURE 3
5, Align upper portion of the PTO rubber guard to
the tabs on the front of the console and secure
with a clevis pin and hairpin on each side (See
Figure 4).
FIGURE 4
6. Raise mower deck to the service position and
secure deck latch onto hook. See section on
Raising the Deck to the Service Position.
7. Install springs onto the spring anchor pins under
the left and right consoles and secure with a
washer and hairpin (See Figure 5).
FIGURE 5
8. Unlatch deck from raised position, slowly lower
deck to ground and lock deck locking pins on
each side per the section on Lowering the Deck
to the Operation Position (page 3).
Deck Raising and Lowering
Raising the Deck to the Service Position
1. Stop engine, wait for all moving parts to stop
and remove key.
WARNING
POTENTIAL HAZARD
♦
Incorrectly raising or lowering a mower deck
can be dangerous.
WHAT CAN HAPPEN
♦
A dropped mower dick can result in a serious
injury or property damage.
HOW TO AVOID THE HAZARD
♦
Always raise and lower deck on flat, dry
ground, free of any obstructions.
♦
Firmly grasp the deck lift handle and lower in a
slow controlled manner.
♦
Always make sure the deck is securely
latched in the "up" or "down" position.
2. Using deck lift handle, lift deck up and latch in
"up" position (latch is located at front center of
seat). See Figure 6.
