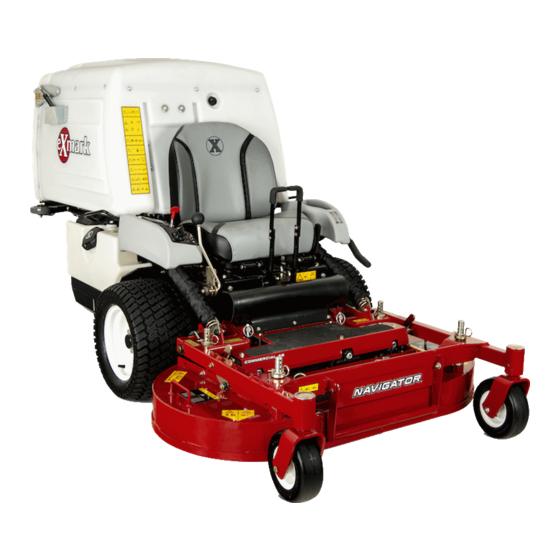

Exmark NAVIGATOR Setup Instructions

This product contains a chemical or chemicals known to the State of California to
The engine exhaust from this product contains chemicals known to the State of California
Loose Parts
Use the chart below to verify that all parts have been shipped. Part numbers not shown are available on the dealer
extranet.
Dealer Pack
Part #
103-2106
1-603511
Literature Pack
Manual, Operator's
Manual, Engine Operator's
Uncrating the Unit
1. Lower the ends of the crate.
2. Remove the retaining straps.
Lowering the Deck
CAUTION
The mower deck is shipped in the "up" position,
but not latched. Removing shipping reinforcements
without supporting the front of the deck will cause
the deck to drop which may result in injury or
property damage.
Always securely support the front of the deck while
setting up the unit.
© 2015—Exmark Mfg. Co., Inc.
P.O. Box 808
Beatrice, NE 68310
Proposition 65 Warning
cause cancer, birth defects, or reproductive harm.
to cause cancer, birth defects, or other reproductive harm.
Description
Key, Exmark Logo
Key, Standard
WARNING
CALIFORNIA
Qty.
1
1
1. Tilt the seat forward.
2. If using an overhead hoist, place the hooks into the
rearmost upper hole of the ROPS mounting plate
located on each side of the frame (see Figure 1).
Raise the front of the unit and support it with jack
stands or equivalent support. Make sure the hoist is
holding the majority of the weight of the machine.
If driving the unit off the crate, lift the deck just
enough to remove the deck support and to insert
other supports into crate opening.
Important: The lift springs may be damaged if
the deck is lifted first.
NAVIGATOR
Setup Instructions
For Serial Nos. 316,000,000 & Higher
Use
Fill out the online warranty registration
form and place keys into literature
pack.
All Rights Reserved *4502-725* A
Part No. 4502-725 Rev. A
Printed in the USA.
®
