Summary of Contents for TSS Combo Rack

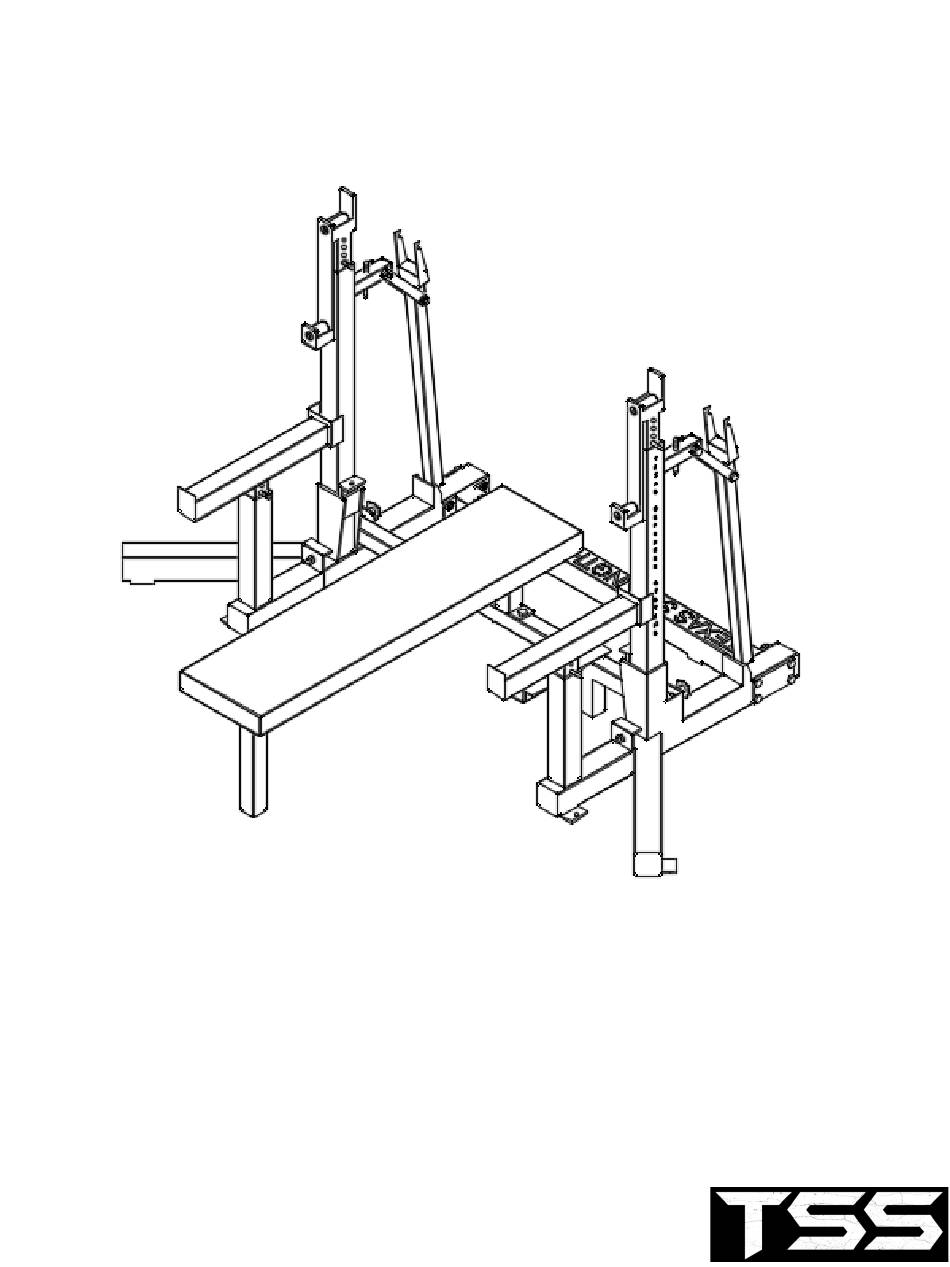

- Page 1 Combo Rack...
-
Page 2: Personal Safety
Read safety warnings, instructions illustrations provided for this piece of strength equipment. Failure to follow all instructions listed below may result in serious injury or death. User assumes all potential risks of assembly or use of this product. PERSONAL SAFETY ●... - Page 3 Required Tools ● Crescent Wrench ● 9/16” Socket and Wrench Parts CR-001 (x1) Part A CR-003 (x2) Part C CR-002 (x2) Part B CR-004 (x2) Part D...
- Page 4 CR-008 (x2) Part H CR-005 (x1) Part E CR-009 (x4) Part I CR-006 (x1) Part F CR-010 (x2) Part J CR-007 (x2) Part G *CR-100 (x2) Part FB* (Upgrade)
- Page 5 ⅜” Stover Nut (x8) Part P *CR-200 (x2) Part FS* (Upgrade) ½” Lock Washer (x2) Part Q ⅜” x 4” Bolt (x8) Part K ½” Nut (x2) Part R ⅜” Flat Washer (x16) Part L ½” x 4.5” Bolt (x2) Part S ⅜”...
- Page 6 Assembly Place parts A, B and J in the orientation as seen in image 1.
- Page 7 Place parts K and P as seen in image 2. Tighten bolts with 9/16” socket and crescent wrench.
- Page 8 Place part C in B with the logo facing out as seen in image 3.
- Page 9 Place parts Q, R, and S in orientation as seen in image 4.
- Page 10 *If face savers were purchased parts FB and FS are placed as seen in image 5*...
- Page 11 Place part H on the desired side of part C as seen in image 6.
- Page 12 Using the previous assembly, attach part I to C as seen in image 8. Repeat this for the second component C. Using parts I, L, M, O, and G assemble as seen in image 7. Repeat this step for the second component G.
- Page 13 Place parts E and F together with L, M, and O as seen in image 9.
- Page 14 Place part D into C and part T in desired locations as seen in image 9 above.
- Page 15 Completed Rack without Face Saver Upgrade Completed Rack with Face Saver Upgrade...
- Page 16 You have now completed assembling your very own Combo Rack! Thank you for choosing Texas Strength Systems for your fitness needs. If you have any questions, comments, or concerns please don’t hesitate to contact our staff. Contact Information Email: wesz@texasstrengthsystems.com...
