TSS Half Rack Assembly Instructions Manual

Download this manual

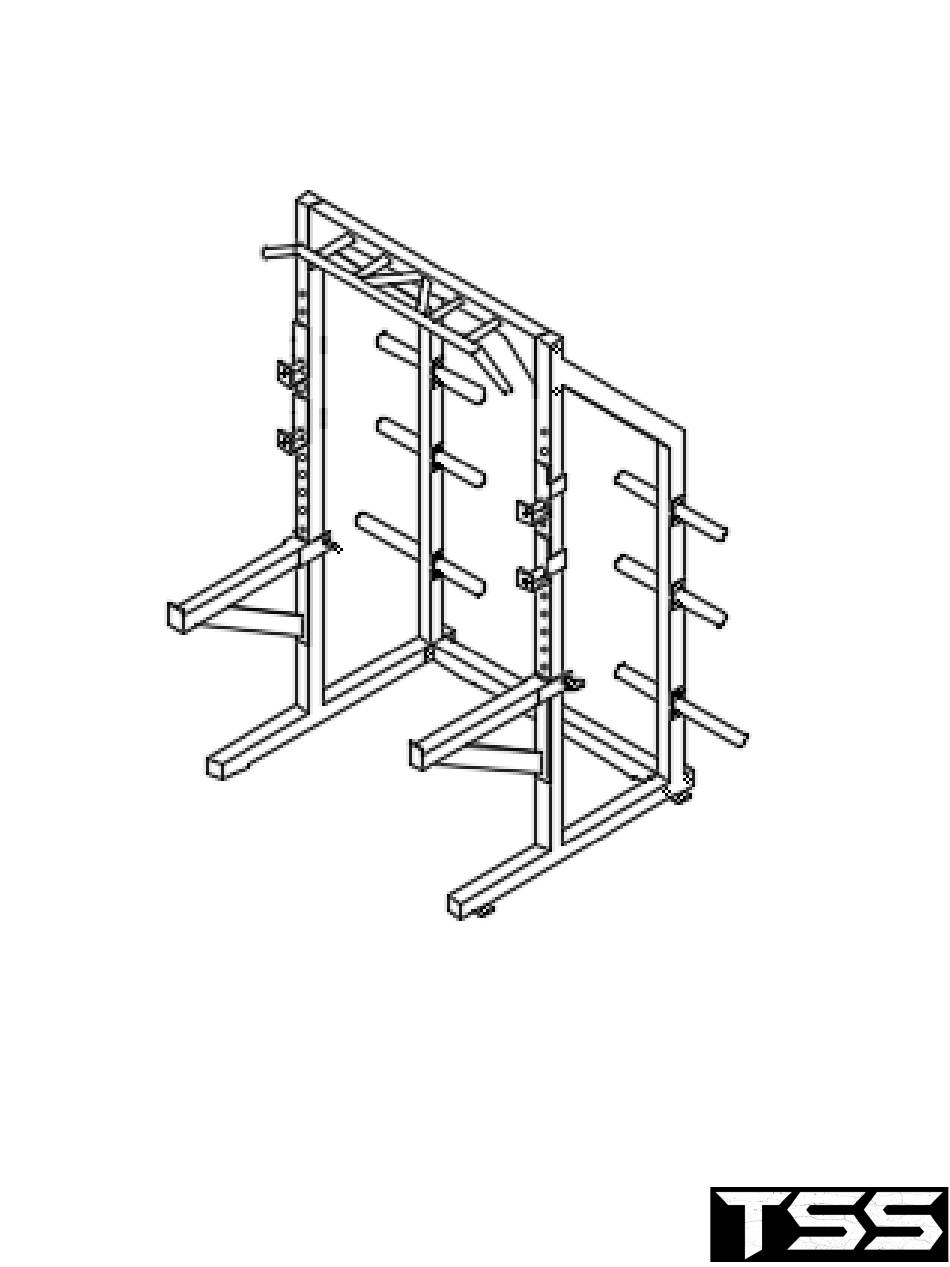

Half Rack

Need help?

Do you have a question about the Half Rack and is the answer not in the manual?

Page 1 Half Rack...
Page 2: Personal Safety
Read safety warnings, instructions illustrations provided for this piece of strength equipment. Failure to follow all instructions listed below may result in serious injury or death. User assumes all potential risks of assembly or use of this product. PERSONAL SAFETY ●...
Page 3 Required Tools ● Crescent Wrench ● 9/16” Socket and Wrench Parts HFR-004 (x2) Part D HFR-001 (x2) Part A HFR-005 (x2) Part E HFR-002 (x1) Part B HFR-006 (x2) Part F HFR-003 (x1) Part C HFR-007 (x10) Part G...
Page 4 ⅜” Lock Nut (x18) Part K HFR-008 (x2) Part H CR-200 (x2) Part L ⅜” x 3.75” Bolt (x20) Part I ⅜” Flat Washer (x8) Part J...
Page 5 Assembly *Repeat image above for all holes in part B* Parts A, B, and C are organized in the manner displayed in image...
Page 6 The top hole of parts A and C will require parts I and J as seen in image 4.
Page 7 Part G will be placed and attached as seen in image 5. Part H will be attached with part G as seen in image 6 using the same hardware as image 5.
Page 8 Place parts E and F in the desired location. Place part D in the desired location and attach using part L as seen in image 7.
Page 9 You have now completed assembling your very own Half Rack! Thank you for choosing Texas Strength Systems for your fitness needs. If you have any questions, comments, or concerns please don’t hesitate to contact our staff. Contact Information Email: wesz@texasstrengthsystems.com...
