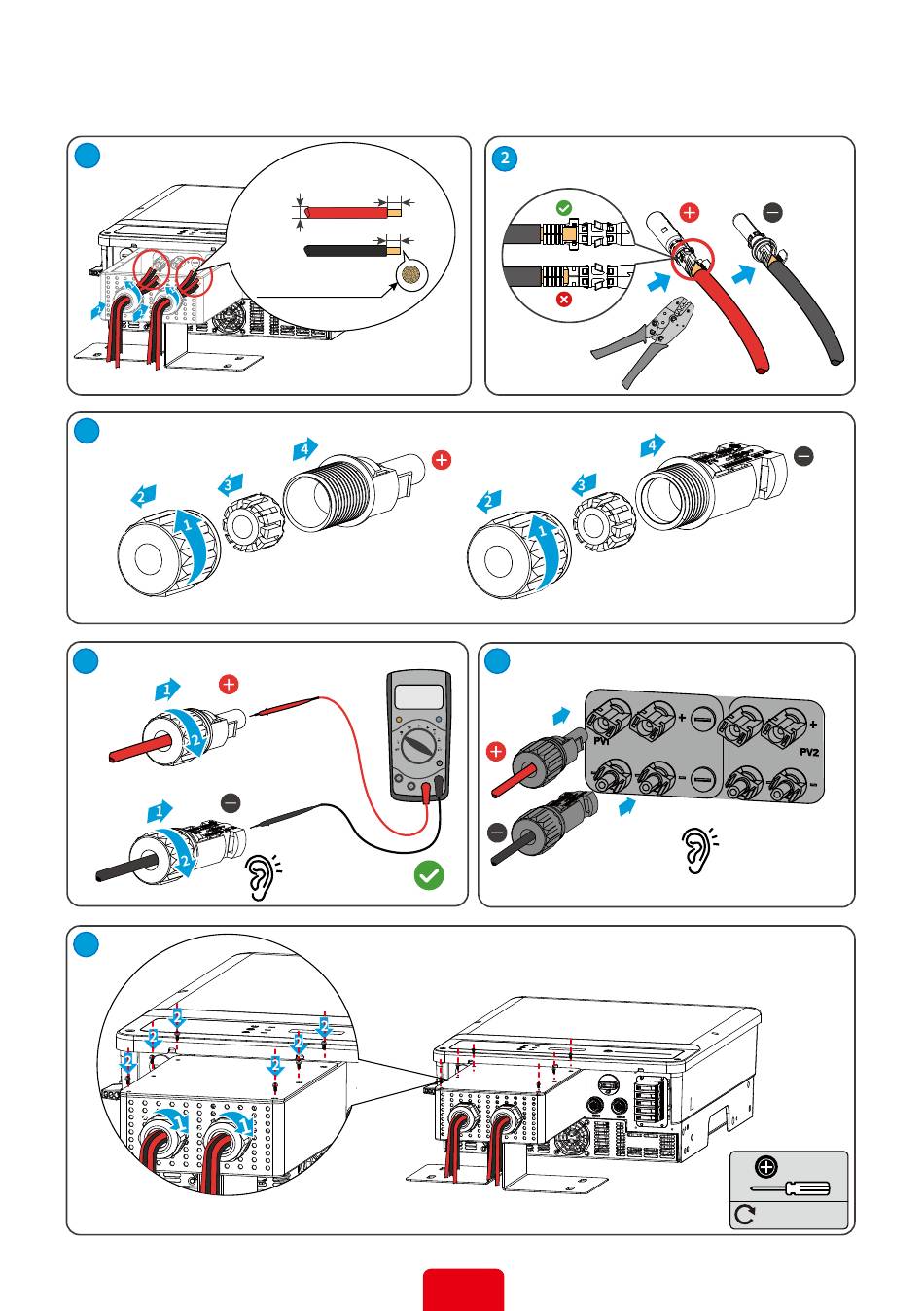

When installing model GW15KAU-DT or GW20KAU-DT, thread the DC cable through the PV box,
and connect the cable to the PV connectors first. Then plug the PV connectors into the inverter,
and fasten the top cover of the PV box.
1
3
4
Click
6
Φ:
4~5mm
7~8mm
7~8mm
2.5mm2≤S≤4mm2
≤1100V
5
16
Click
M3
0.6~0.8N·m
