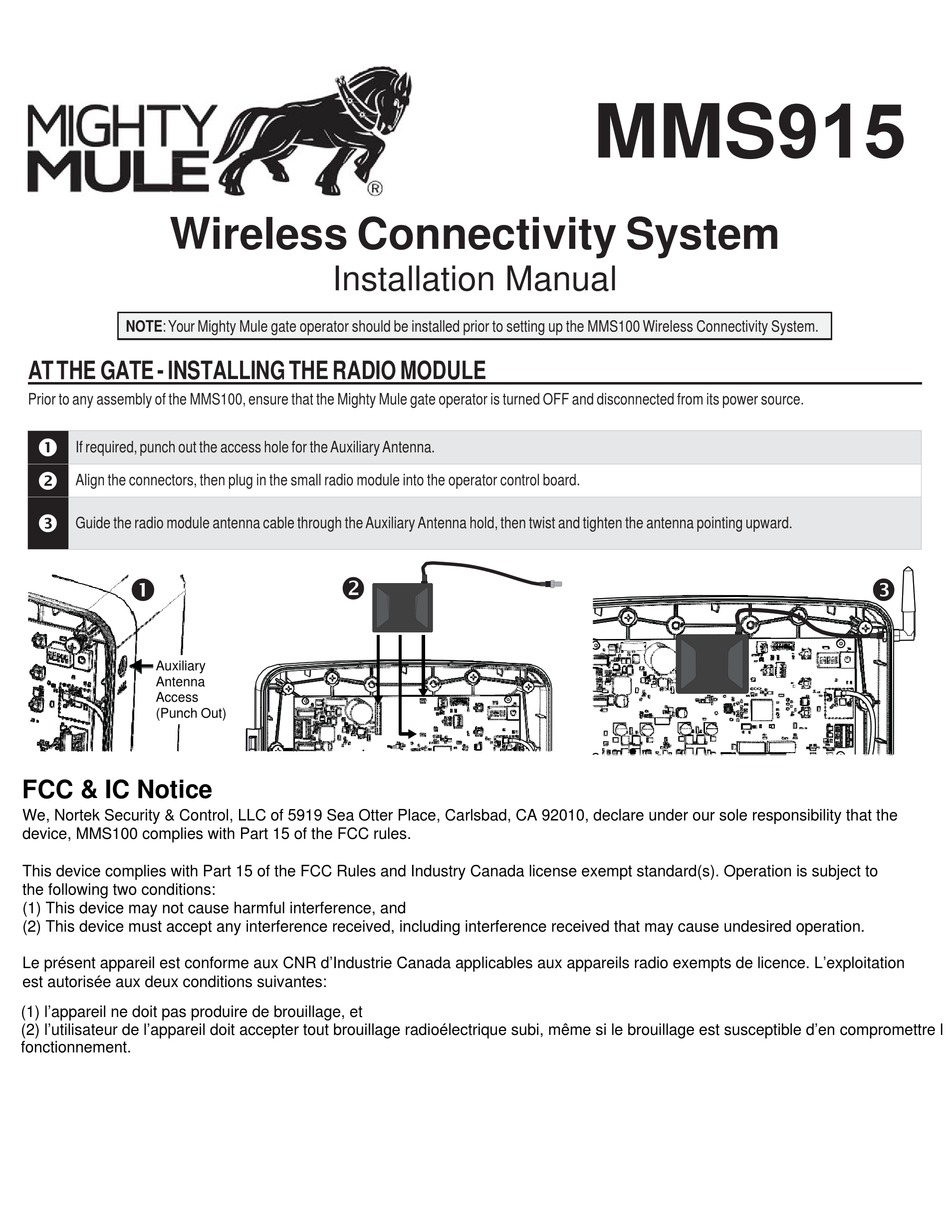

Mighty Mule MMS915 Installation Manual

Wireless connectivity system

Wireless Connectivity System

NOTE: Your Mighty Mule gate operator should be installed prior to setting up the MMS100 Wireless Connectivity System.

AT THE GATE - INSTALLING THE RADIO MODULE

Prior to any assembly of the MMS100, ensure that the Mighty Mule gate operator is turned OFF and disconnected from its power source.



If required, punch out the access hole for the Auxiliary Antenna.



Align the connectors, then plug in the small radio module into the operator control board.



Guide the radio module antenna cable through the Auxiliary Antenna hold, then twist and tighten the antenna pointing upward.



Auxiliary

Antenna

Access

(Punch Out)

FCC & IC Notice

We, Nortek Security & Control, LLC of 5919 Sea Otter Place, Carlsbad, CA 92010, declare under our sole responsibility that the

device, MMS100 complies with Part 15 of the FCC rules.

This device complies with Part 15 of the FCC Rules and Industry Canada license exempt standard(s). Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference received that may cause undesired operation.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation

est autorisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre l

fonctionnement.

Installation Manual



MMS915



Table of Contents

Do you have a question about the MMS915 and is the answer not in the manual?

Page 1 NOTE: Your Mighty Mule gate operator should be installed prior to setting up the MMS100 Wireless Connectivity System. AT THE GATE - INSTALLING THE RADIO MODULE Prior to any assembly of the MMS100, ensure that the Mighty Mule gate operator is turned OFF and disconnected from its power source. ...
Page 2 A label must be affixed to the outside of final commercial product with the following statements: This device contains FCC ID: I6H-MMS915 This device contains IC ID: 21449-MMS915 Consistent with §2.909(a), the following text must be included within the user’s manual or operator instruction...
Page 3 • Only use this equipment with the provided antenna's, failure to do so will void the user's authority to operate the equipment. • This system is for use the Mighty Mule Smart Capable Gate Operator (Model(s): MM371, MM372, MM571, MM572, TS571) •...
