Control Box
Post Bracket
120 Volt indoor
Transformer
(surge protector
not supplied)
Run 1000' (max.) of low
voltage wire to control
box from transformer
(wire not included).
This product meets the requirements of UL325 6th Edition, 2016, the standard for gate
operator safety.
Mighty Mule® is the retail brand of GTO Access Systems, LLC
Printed in China for GTO Access Systems, LLC.
Installation Manual
Gate Swings Evenly and Freely
Hung Firmly and Plumb
First Gate Opener
Horizontal Support
Power Cable
12 Volt automotive or marine
type battery in weather proof
housing (not included).

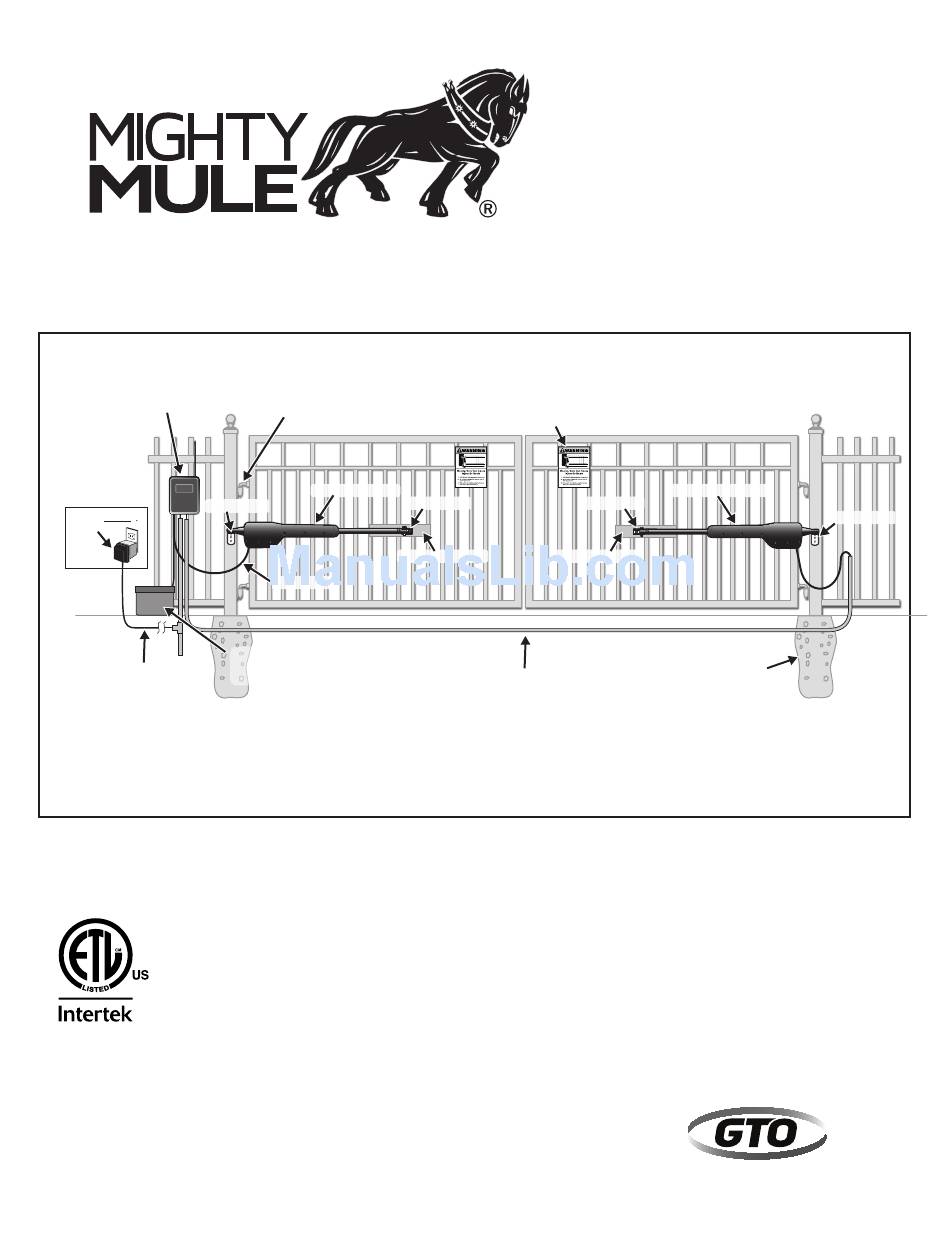

Example of finished installation
(installations vary slightly on different types of gates)
3121 Hartsfield Road • Tallahassee, FL 32303
MM362
Warning Sign
Gate Bracket
Gate Bracket
Horizontal Support
PVC conduit (not included)
to run second opener power
cable under driveway.
Second Gate Opener
Fence Post Set in Concrete
ACCESS SYSTEMS, LLC
Copyright
©
2016 GTO Access Systems, LLC
Document Number: R36208 REV A (12.15.16)
Post Bracket
