Control Box
120 Volt indoor
Transformer
(surge protector
not supplied)
Run 1000' (max.) of low
voltage wire to control
box from transformer
(wire not included).
12 Volt automotive or marine
type battery in weather proof
housing (not included).
This product meets the requirements of UL325 6th Edition, 2016, the standard for gate
operator safety.
Mighty Mule
3121 Hartsfield Road • Tallahassee, FL 32303
Printed in China for GTO Access Systems, LLC.
Installation Manual
Gate Swings Evenly and Freely
Hung Firmly and Plumb
Single Gate Opener
Post Bracket
Power Cable
PVC conduit (not included)
to protect wire from lawn
mowers and weed eaters.
Example of finished installation
(installations vary slightly on different types of gates)
is the retail brand of GTO Access Systems, LLC
®
MM260
Warning Sign
Horizontal Support
Gate Bracket
Closed Position Stop Plate
Fence Post Set in Concrete
ACCESS SYSTEMS, LLC
Copyright
©
Document Number: R26008 REV A (12-15.16)
2016 GTO Access Systems, LLC
Advertisement
Table of Contents
Related Manuals for Mighty Mule MM260
Summary of Contents for Mighty Mule MM260

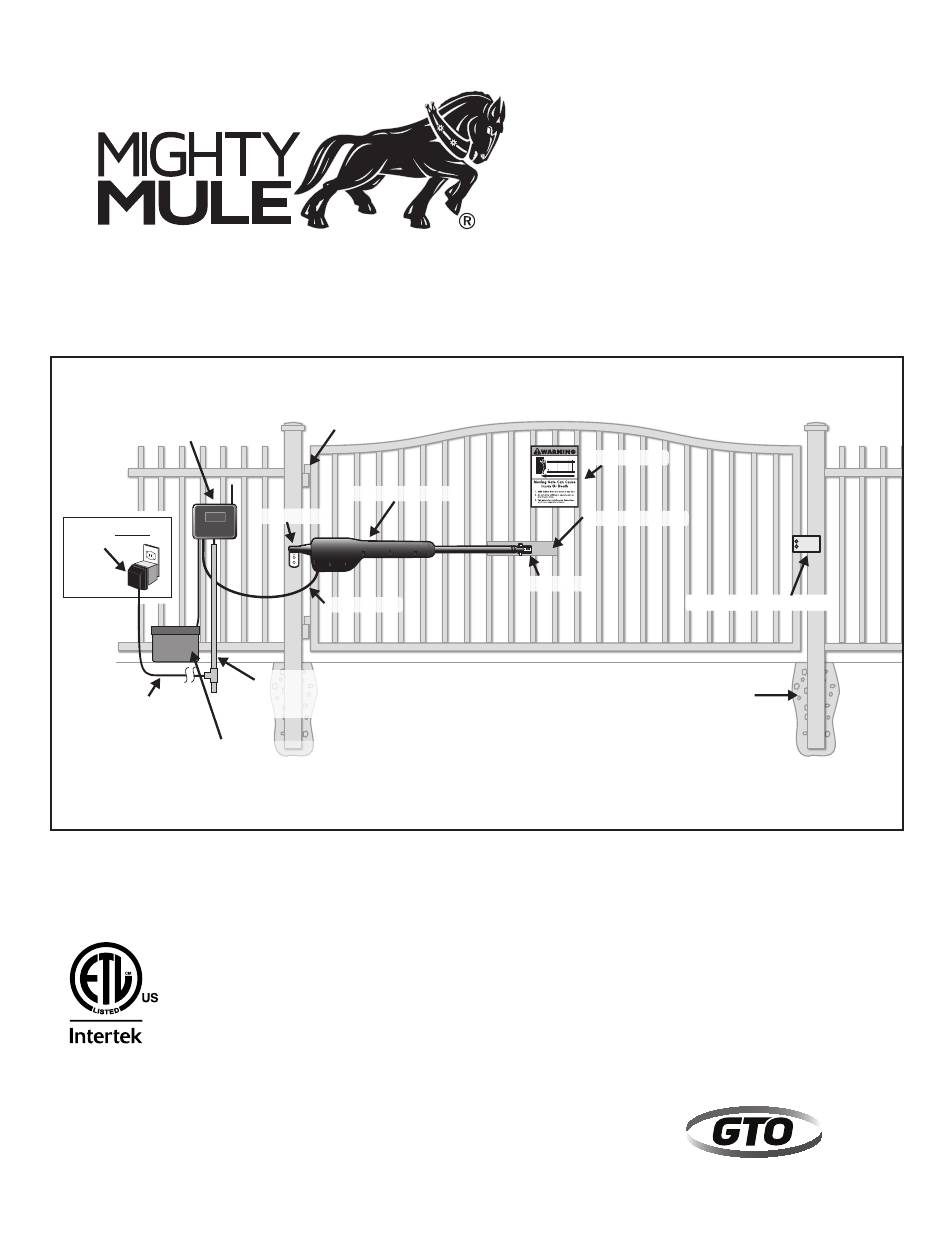

- Page 1 MM260 Installation Manual Gate Swings Evenly and Freely Hung Firmly and Plumb Control Box Warning Sign Single Gate Opener Post Bracket Horizontal Support 120 Volt indoor Transformer (surge protector Gate Bracket not supplied) Closed Position Stop Plate Power Cable PVC conduit (not included)
