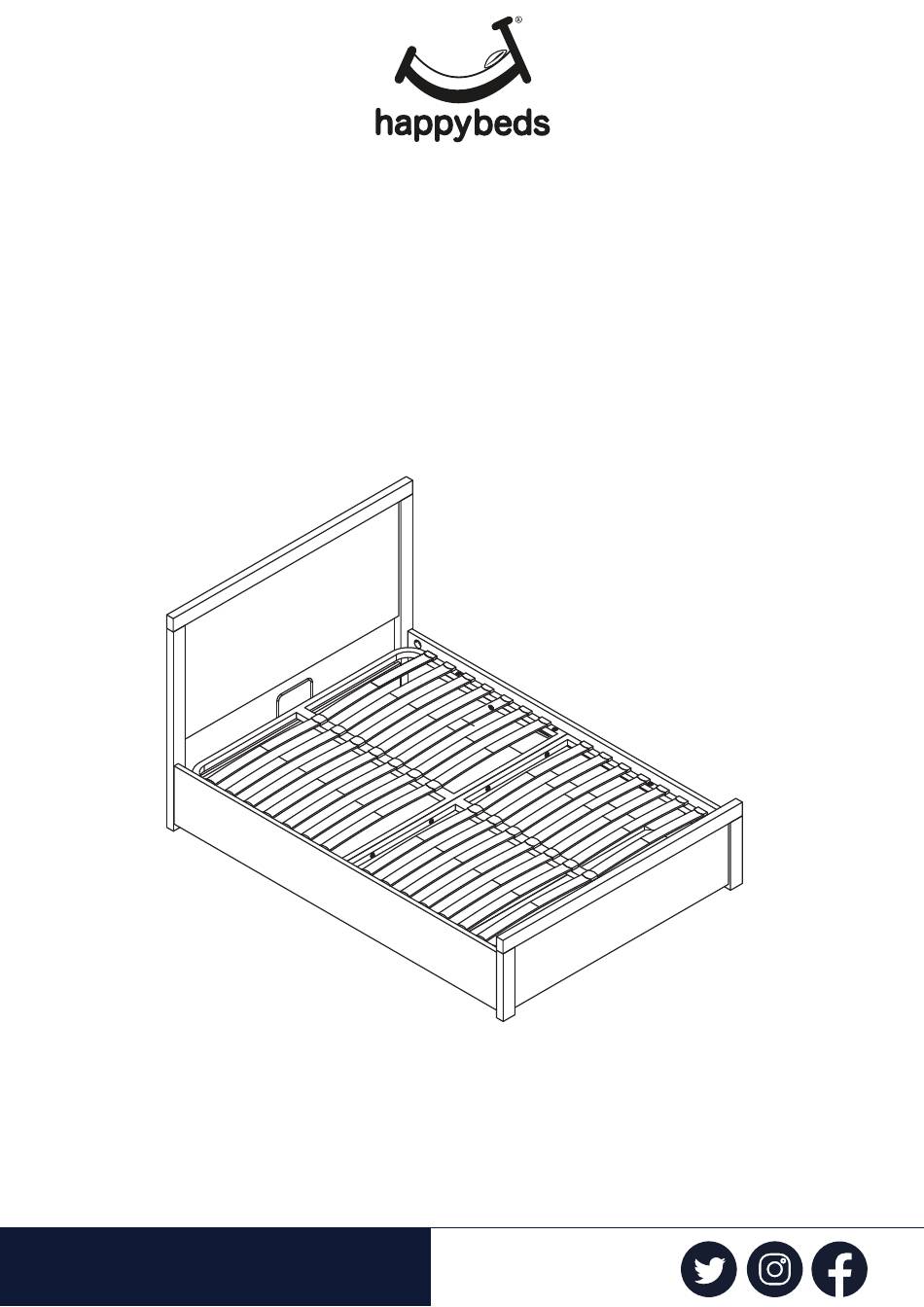

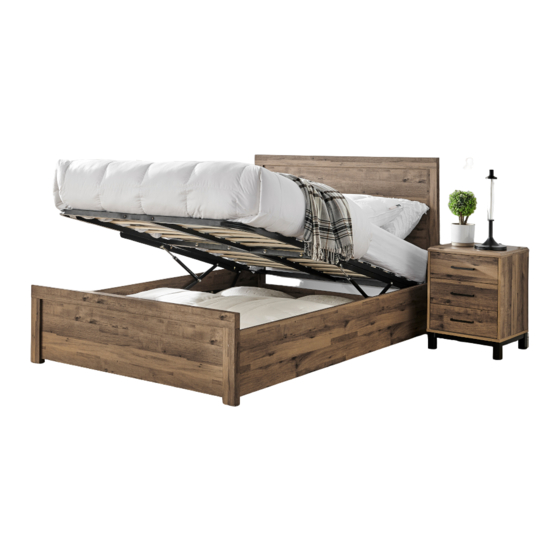

- Page 1 Assembly Instructions Rodley Ottoman Bed w w w . h a p p y b e d s . c o . u k @ h a p p yb e d s @ h a p p y b e d s...
- Page 2 No: We're so sorry to here this! Please contact us by scanning the QR code or visit us at www.happybeds.co.uk/customer-service and someone will be happy to help. w w w . h a p p y b e d s . c o . u k...
- Page 3 Don't miss out! Sign up to our newsletter so you don't miss out on our amazing sales and giveaways! Head to our website, www.happybeds.co.uk to sign up and save £10 off your next order. Your chance to WIN some luxury sleep products...
- Page 4 w w w . h a p p y b e d s . c o . u k @ h a p p yb e d s...
-
Page 5: Health And Safety
Health & Safety: This product or some parts of this product will be heavy. Please use an assistant when lifting. Please keep small parts out of reach of children. Always use on a level, even surface. DO NOT jump on the product or any of its parts. DO NOT use this product if any parts are missing, damaged or worn. - Page 6 No Part List No Part List Inner Panel For Headboard 1 pc Metal Slat Frame - Headend 1 pc LH Headboard Leg 1 pc 1 pc Metal Slat Frame - Footend RH Headboard Leg 1 pc 1 pc Mattress Stopper Top Rail For Headboard 1 pc Fabric Handle...
- Page 7 HARDWARE NEEDED FOR HEADBOARD ASSEMBLY (PACK A) HARDWARE NEEDED FOR BED ASSEMBLY (PACK B) Hardware List Hardware List Cam bolt 17 pcs 8 pcs Dowel (Ø8x30mm) Threaded stud Cam lock 17 pcs 8 pcs (M8x90mm) Dowel (Ø8x30mm) 10 pcs Nuts for M8 stud 8 pcs Half-moon bracket 8 pcs...
- Page 8 Step 1: Dowel 10 pcs Step 2: 17 pcs Cam Bolt Page 8 of 16...
- Page 9 Step 3: 10 pcs Cam Lock Bx10 Step 4: Cam Lock 7 pcs Page 9 of 16...
- Page 10 Step 5: Threaded stud 8 pcs (M8x90mm) Step 6: Dowel Bolts (M8x35mm) 4 pcs 8 pcs Flat Washer Spring Washer 4 pcs 4 pcs Allen Key 1 pc & Page 10 of 16...
- Page 11 Step 7: Half-moon bracket Nuts for M8 stud 8 pcs 8 pcs Flat Washer Spring Washer 8 pcs 8 pcs Spanner for M8 nut 1 pc H G E Step 8: Flanged M8 lock-nuts 4 pcs for gas-lift piston Spanner for flanged 1 pc M8 lock-nuts Page 11 of 16...
- Page 12 Step 5: Flat Washer Allen Key 8 pcs 1 pc Bolt (M8x35mm) 8 pcs Plastic spacer for lift 8 pcs mechanism (15 & 16) & Step 6: Flat Washer Nut for M8 bolt 4 pcs 8 pcs Allen Key 1 pc Spanner 1 pc Bolts (M8x76mm)
- Page 13 Step 3: Double Size: x12 sets King Size: x14 sets Press Press down down Step 4: Plastic feet Screw (Ø8x28mm) 20 pcs 20 pcs Page 13 of 16...
- Page 14 Step 3: 9 x4 Step 4: Flat Washer Nut for M8 bolt 6 pcs 12 pcs Allen Key Spanner 1 pc 1 pc Bolts (M8x50mm) 6 pcs Page 14 of 16...
- Page 15 WARNING: ONLY USE THE HANDLE TO LIFT & TO AVOID ACCIDENTS LOWER THE BED FRAME TO TO ACCESS THE STORAGE AREA THE OTTOMAN FRAME MUST BE FULLY OPENED AND THEN FULLY CLOSED AFTERWARDS AVOID TRAPPING FINGERS! Note: Be very careful what you store under the bed - the top of an item, like a suitcase or a box must not...
-
Page 16: General Care And Maintenance
floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
