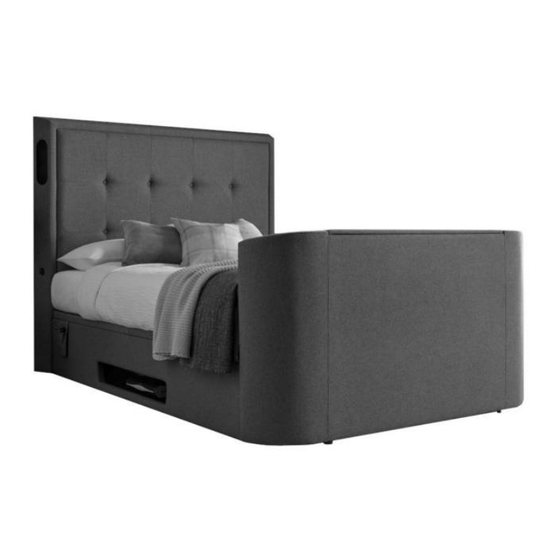

Monaco Electric Media TV Bed
Monaco Electric Ottoman TV Bed
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.

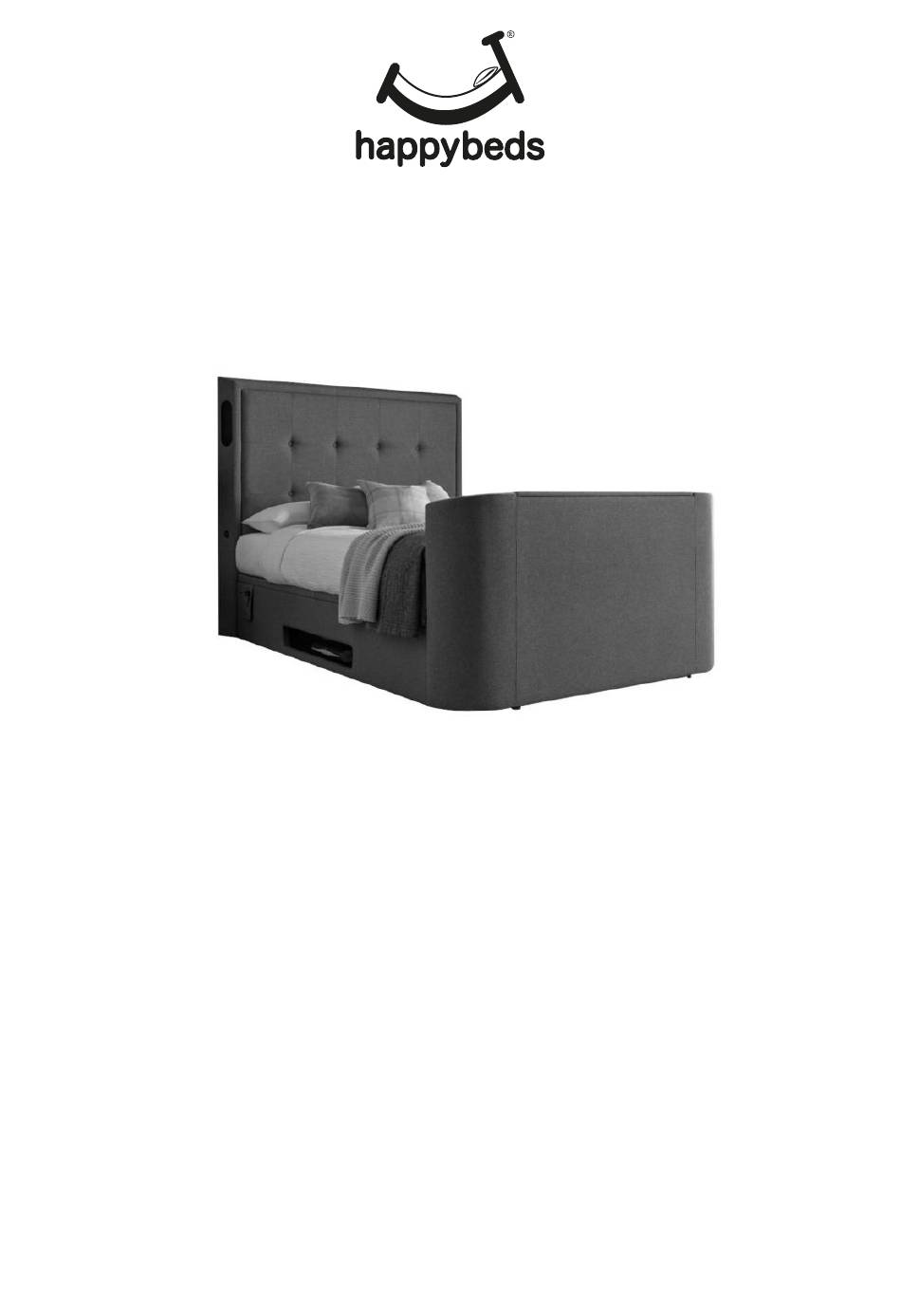

Assembly Instructions
Title of Product
.
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Monaco Electric Ottoman TV Bed
Summary of Contents for Happybeds Monaco Electric Ottoman TV Bed
- Page 1 Assembly Instructions Title of Product Monaco Electric Media TV Bed Monaco Electric Ottoman TV Bed Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
- Page 3 CARTON 1 - HEADBOARD CARTON 2 - FOOTBOARD HEADEND CONNECTION FOOTEND CONNECTION FOR USB - CABLE (P) FOR USB - CABLE (P) The following items are packed in an Accessory Box inside the TV Compartment, in Carton 2 Hardware Pack for Bed Assembly Hardware Pack for Media Tray Assembly A x16 B x16...
- Page 4 HARDWARE PACK FOR ASSEMBLY OF OTTOMAN MATTRESS BASE BOARDS - ALSO IN CARTON 2 A x26 B x30 C x30 Q x4 Flat M8 Washers for Bolts M8 Nuts (A) & Mattress Stoppers Bolts (M8x30) for fitting Gas-lift (for Mattress Stoppers) Spring Washers (for M8 bolts) mechanism s R(a) &...
- Page 5 CHOOSE WHICH SIDE YOU WANT TO LIFT UP OPEN FROM LEFT R(a) R(b) CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM LEFT SIDE OF BED, FIT BOTH LIFT MECHANISMS TO RIGHT SIDE OF THE BED. BOLT INTO THE HOLES MARKED (R) WITH BLUE LABELS. THE MECHANISMS ARE LABELED R (a) &...
- Page 6 OPEN FROM RIGHT R(a) R(b) CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM RIGHT SIDE OF BED, FIT BOTH LIFT MECHANISMS TO LEFT SIDE OF THE BED. BOLT INTO THE HOLES MARKED (L) WITH RED LABELS. THE MECHANISMS ARE LABELED R (a) &...
- Page 7 3or4 1&2 Always to LEFT side rail 3 or 4, irrespective of which side is chosen to be plain or with media tray, fit USB connection cable (P) tucking neatly under Velcro flaps. LEFT Page 6 of 20...
- Page 8 Connect in Headend to Connect SOCKET in Footend to PLUG on connection cable SOCKET on connection cable PLUG FOOTEND HEADEND Connect Main Power Lead (G) to your wall socket - for safety, this must be an earthed supply. Page 7 of 20...
-
Page 9: Main Power Supply
Press the “UP” button to raise the TV lift. Note: For illustration purposes TIP: only, TV connections may vary. BEFORE FITTING THE TV, PUSH CABLES THROUGH EACH DUCT FROM THE TOP. CHOOSE THE BEST SIDE TO USE DEPENDING ON WHERE HDMI THE CONNECTION PORTS ARE, ON BACK OF YOUR TV. - Page 10 TV Installation - Normal Vesa Fixing IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Counter-Sunk Screw-Washer Counter-Sunk Screws a x2 sets (M8x25mm) Screws (M4x12mm) (M6x12mm) Use 5mm Allen Key (D) b x2 Allen Key (4mm) Allen Key (2.5mm) Loosen Tighten Page 9 of 20...
- Page 11 TV Installation - 100x100 Vesa Fixing REMOVE CROSS-BRACKET AND FIX IT DIRECTLY TO BACK OF TV 100mm IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Screw-Washer Counter-Sunk Counter-Sunk Screws sets (M8x25mm) a x2 (M6x12mm) Screws (M4x12mm) Use 5mm Allen Key (D) b x2 Allen Key (4mm)
- Page 12 TV Installation - 100x100 Vesa Fixing Loosen Tighten Page 11 of 20...
- Page 13 Note: For illustration purposes only, TV connections may vary. TV Power Lead supplied with your own TV 90º ADAPTOR REMOVE DUST-CAP OPTICAL PLUG IN - KEEP ALL CABLES TIGHT - USE CLIPS & TIES PROVIDED. Keep wires tight - peel off cover from cable clips &...
- Page 14 TV Power Lead supplied with your TV Press the “DOWN” button to lower the TV lift. IMPORTANT: Be careful to keep the two HDMI Leads (H) on top of the Base Boards (12). Main power lead (G) and Aerial lead (J) should be kept under the base boards & fed out under the headboard so you can connect to your wall sockets.
- Page 15 Page 14 of 20...
- Page 16 3or4 1&2 100% WHEN ALL BOLTS HAVE BEEN FITTED AND THE BED IS SQUARED UP AS IN THE DIAGRAM, TIGHTEN 100% Page 15 of 20...
- Page 17 Page 16 of 20...
- Page 18 FIT THE REMOTE CONTROL HOLSTER SMALL GAP Page 17 of 20...
- Page 19 Note: Be very careful what you store under the bed - the top of an item, like a suitcase or a box, must not touch the slats or they shall be damaged. Maximum storage height is 280mm. : Before moving the slat frame, NOTE mattress must be placed on the slats the speed of upward...
- Page 20 Occasionally you may find the radio wave connection between remote control and TV Lift is lost, probably due to atmospheric conditions. In that case please follow these simple instructions: ①. Disconnect all mains electric power to the bed, for at least 60 seconds. ②.
-
Page 21: General Care And Maintenance
If this is not adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
