Happybeds Ravello Sleigh Bed Assembly Instructions Manual

Download this manual

FABRIC BED 135CM

Assembly Instructions

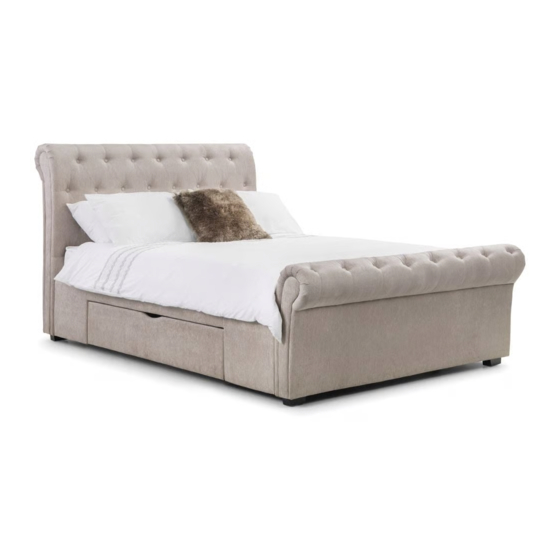

Ravello Sleigh Bed

Important before assembly:

Read these instructions carefully before assembling or using the product.

VERSION: 170925

Please check the contents of the boxes before attempting to assemble this product. The instructions will

have a checklist of parts and ﬁttings.

It would be sensible to lay a rug or a carpet on the ﬂoor where you intend to assemble the product,

to void scratches and damaging the product or the ﬂoor.

Assemble the product as close to its intended ﬁnal location/room as possible.

Do NOT use any power tools as this may damage the frame.

Health & Safety:

This product or some parts of this product will be heavy. Please use an assistant when lifting.

DO NOT jump on the product or any of its parts.

DO NOT use this product if any parts are missing, damaged or worn.

DO NOT use this product unless all ﬁxings are secured.

Please keep small parts out of reach of children.

Always use on a level, even surface.

Please keep these instructions for future reference.

www.happybeds.co.uk

Page 1 FABRIC BED 135CM Assembly Instructions Assembly Instructions Ravello Sleigh Bed Important before assembly: Read these instructions carefully before assembling or using the product. VERSION: 170925 Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and ﬁttings.
Page 2 Never drag or push the pieces across a hard or stone ﬂoor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
Page 3 Hardware Already inserted into Head & Foot Ends M8 x 30mm Screw M5 X 70mm Middle Cap For - 3 X +Flat Washer Sprung Base - 16 X Bolt - 8 X Allen Key (M5) - 1 X Slat Cap - 32 X Bolt M8 X 60mm +Flat Washer Bolt - 4 X...
Page 5 STEP 1 A & B A & B STEP 2 Please note that the Bolt (1) x 8 are prefixed into parts A & B STEP 3...
Page 6 STEP 4 A & B A & B STEP 5 STEP 6 PUSH PUSH PUSH...
Page 7: General Care And Maintenance
ﬂoor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
