1. Warning
·The charcoal fire pit is HOT! DO NOT allow your children to play near it when fire pit is in use.
·To avoid destroying the finish, please handle the surface by using a soft cloth instead of your bare hands.
·Do not touch the surface of iron fire grate and the Fire Bowl while in use. It may cause burns.
2. Parts List
No.
A
Screen Handle
B
C
D
E
F
G
H
Bottom Ring
I
Bolt M6 x 20mm (TBZ20060620HQ)
J
Bolt M6 x 10mm (TBZ20060610HQ)
K
Flat Washer M6 (TBZ10406HQ)
L
Spring Washer M6 (TBZ10506HQ)
M
Flange Nut M6 (TBZ20206HQ)
WARNING! Parts may be heavy. Handle with care. Keep children away from assembly area.
3. Assembly Instructions

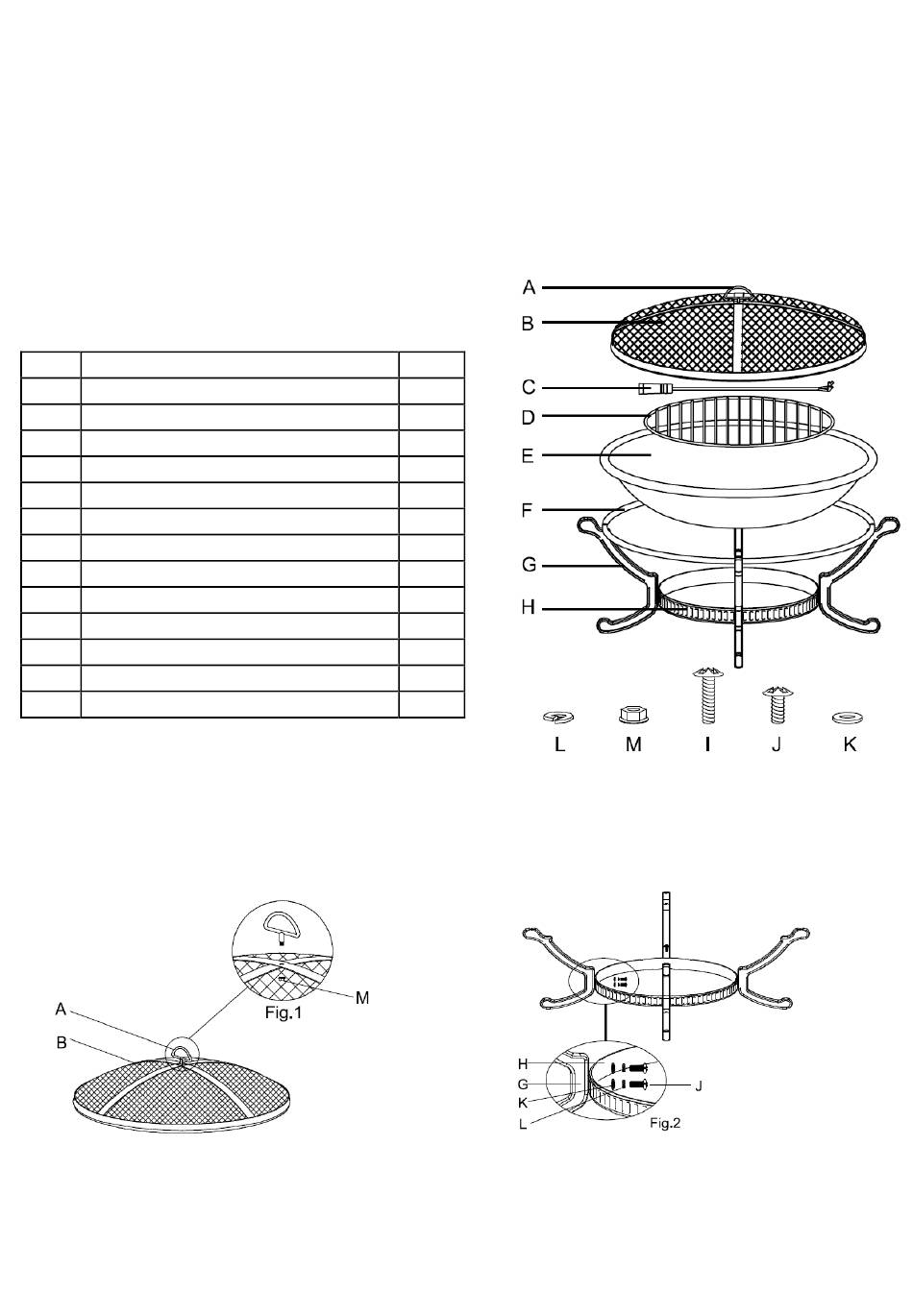

1. Attach Screen Handle (A) to Screen (B),
using Nut (M) to fix. <Fig.1>
OWNER'S MANUAL
35" Iron's Gate Firepit — L-FT231PST
Parts.
Screen
Fire Poker
Log Rack
Fire Bowl
Top Ring
Leg
Qty.
1
1
1
1
1
1
4
1
4
8
8
8
1
2. Attach Leg (G) to Bottom Ring (H), using
Bolt (J), Flat Washer (K) and Spring Washer
(L) to fix. < Fig.2> Do not tighten the bolts
now.
