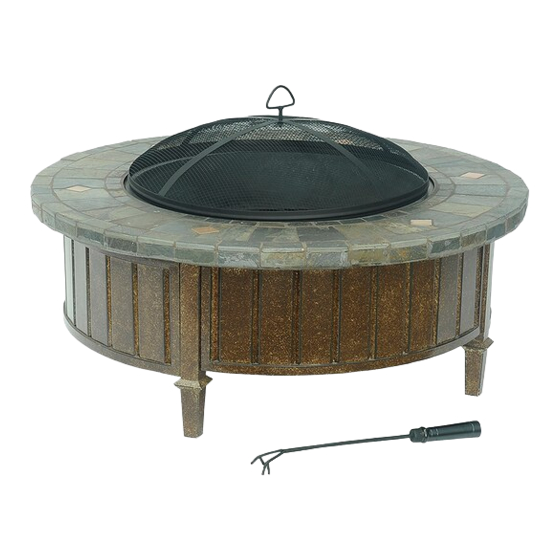

Meijer.com Assembly Instructions Slate Fire Pit Item: L-FT253PST-6 WARNINGS: • Fire pit is intended for outdoor use only. Do not use on wooden decks. • Fire pit is intended to burn wood logs only. Do not burn coal, leaves or other combustible materials in the fire pit.
Page 2
Meijer.com Parts List Description t f i Mesh screen Grate Fire bowl Ash tray Table top Connector Poker 1/4”-20*0.8 Bolt 3/16”-24*0.4 Bolt 3/16”-24 Nut 1/4”-20 Nut D6.5 Flat washer 3/16”-24/1/4”-20 Wrench Step 1: Step 2: Connect Fire bowl (D) and Ash tray (E) by 3pcs Connect Lifter (A) and Mesh screen (B) by 1pc 3/16”-24*0.4 Bolt (BB) and 3/16”-24 Nut (CC), 1/4”-20 Nut (DD), fully tighten by 3/16”-24/1/4”-20...
Page 3
Meijer.com Step 3: Step 4: Connect Leg (H) and Connector (G) by 4pcs Reverse Table top (F), connect Leg (H) and Table 1/4”-20*0.8 Bolt (AA) and D6.5 Flat washer (EE), top (F) by 4pcs 1/4”-20*0.8 Bolt (AA) and D6.5 do not fully tighten. Flat washer (EE), do not fully tighten.
