Eyemax TVST PVT3-04N5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Digital Video Recorder
User's Manual
TVST PVT3-04N5
TVST PVT3-08N5
TVST PVT3-16N5
1

Advertisement

Table of Contents
loading

Related Manuals for Eyemax TVST PVT3-04N5

Summary of Contents for Eyemax TVST PVT3-04N5

  • Page 1 Digital Video Recorder User’s Manual TVST PVT3-04N5 TVST PVT3-08N5 TVST PVT3-16N5...
  • Page 2 Thank you for using our product. 1. This is user's manual for DVR(Digital Video Recorder). 2. This manual contains product specification and introduction, installation guide, operating guide and other necessary matters for easy understanding. Users should read this user's manual carefully for proper use. 3.

  • Page 3: Table Of Contents

    CONTENTS Contents CH 1. Product Introduction` 1-1. Product Contents 1-2. Product Characteristics 1-3. Name of Each Part CH 2. Installation Guide and Cautions 2-1. Cautions 2-2. Product Installation 2-2-1. Power Connection 2-2-2. Connecting External Device CH 3. How to Use 3-1.
  • Page 4 CONTENTS Contents Trouble Shooting...

  • Page 5: 1. Product Introduction

    CH 1 Product Introduction CH1. Product Introduction 1-1. Product Contents After removing packing materials of this product, check whether all following contents are included. Main Body (DVR): This converts the analog video and audio signal to the digital signal and saves on HDD. Adapter: This 12V adapter supplies power to the product.

  • Page 6: Product Characteristics

    CH 1 Product Introduction 1-2. Product Characteristics 1) High quality picture This enables recording and playing high quality digital image. 2) High reliability With Embedded hardware and software design, this maintains higher product reliability. 3) Simple usage This allows users to use it conveniently by placing control buttons similar to existing ones on VCR, and users can easily learn the usage.
  • Page 7 CH 1 Product Introduction 11) Display information in easy-to-understand information method This enhanced convenience of user by displaying information (date, time, recording method, recording frame number, HDD capacity and others) in monitoring, recording and playing mode in easy-to-understand way. 12) P/T/Z control By built in RS485, various P/T/Z cameras can be used.

  • Page 8: Name Of Each Part

    CH 1 Product Introduction 1-3. Name of Each Part [Front Panel] <TVST PVT3-04N5, TVST PVT3-08N5> 3. IR RECEIVER 2. STATUS RAMPS 1. USB 1. USB : These USB ports are for mouse and USB devices. You should connect correctly the USB devices and mouse as picture directed.
  • Page 9 CH 1 Product Introduction [Front Panel] < TVST PVT3-16N5> 4. Function Keys 3. IR RECEIVER 5. Number Buttons 2. STATUS RAMPS 1. USB 1. USB : These USB ports are for mouse and USB devices. You should connect correctly the USB devices and mouse as picture directed. 2.
  • Page 10 CH 1 Product Introduction [Rear Panel] <4 CH> 6.SENSOR IN / RELAY / RS485 9. SPOT 8. AUDIO IN 7. LAN 5. DC 12V 1. AUDIO OUT 4. VGA 2.VIDEO IN 3.HDMI <8 CH> 6.SENSOR IN / RELAY / RS485 9.
  • Page 11 CH 1 Product Introduction 1. AUDIO OUT : RCA audio out terminal. 2. VIDEO IN : This receives images from cameras and sends them to monitors. 3. HDMI : Video output for high resolution monitor 4. LAN : This is the Gigabit Ethernet LAN cable connection terminal. 5.

  • Page 12: Cautions

    CH 2 Installation Method and Cautions CH2. Installation Method and Cautions 2-1. Cautions WARNING Risk of electric shock. Do not open the cover of the product. Servicing of this product by unauthorized personnel is prohibited and will result in a void of warranty. In order to ensure the most stable conditions for power, the use of a UPS (Uninterrupted Power Supply) is recommended.
  • Page 13 CH 2 Installation Method and Cautions - Keep the power cord untwisted. (May cause fire or electric shock.) - Use proper adapter. (Using too much electric power may cause fire or electric shock.) - Do not install it at where exposed to rain and wind and water drop. (May cause fire, electric shock and transformation.) - Keep away from fire.
  • Page 14 CH 2 Installation Method and Cautions Note : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 15: Product Installation

    CH 2 Installation Method and Cautions 2-2 Product Installation This product may be composed of camera and monitor in default, and additionally the sensor, microphone, speaker and PC for network can be connected if necessary. 2-2-1. Power Connection 1) Connect adapter or power cable to power input terminal at rear side. (free voltage from 100V to 240V, 50/60Hz) ※...
  • Page 16 CH 2 Installation Method and Cautions 2) How to connect external sensor Sensor terminal is composed of 1 input channel and 1 output channel. Sensor out terminal is relay output with 1A, 24V or 0.5A,125V. Sensor In : Connect the sensors. The sensor are composed of both signal and ground terminals, with a voltage difference of 5V.
  • Page 17 CH 2 Installation Method and Cautions 4) Connection Using PTZ camera In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as shown at following figure. VIDEO CABLE SPEED RS 485 CABLE DOME 5) Installing Hard disk drive In case of installing the hard disk drive, open the upper case and install the hard disk drive on the hard bracket.

  • Page 18: 3. How To Use

    CH 3 How to Use CH3. How to Use 3-1. General Usage Information This DVR can be operated with a mouse or remote controller under the four main modes listed below: Live Mode – This is the “main or default” mode. From this mode you can view in real time all currently operating cameras, information regarding camera status, and have access to Pan/Tilt camera controls.
  • Page 19 CH 3 How to Use Password Protection – The DVR system will utilize a user ID and password system to prevent unauthorized usage of this product. Control of the system will only be possible after entering a proper ID and password as illustrated below.

  • Page 20: Live Mode

    CH 3 How to Use 3-2. LIVE Mode In this section you will know how to split the video mode into 1, 4, 6, 8, 9, 12, 16, as well as auto sequencing, PTZ Control, Mouse control, Setup configurations, Backup. 3-2-1.
  • Page 21 CH 3 How to Use Go to setup Go to playback Screen Split mode change Sequence activation Audio out channel & Audio Mute indicator Backup Lock/ Unlock indicator Hard drive usage & lamp Scheduler activation indicator Network connection indicator Search Event List indicator Date &...
  • Page 22 CH 3 How to Use 4) Live Toolbar When a channel is selected on live mode, the live toolbar is displayed as follows. You can enter PTZ or Zoom mode or use Snapshot function.

  • Page 23: Live Mode Feature

    CH 3 How to Use 3-2-2. LIVE Mode Feature 1) Setup : refer to 3-4 2) Split. You can change video split mode for Live View. Click the channel number at the top to switch to the channel on the page. 3) Audio Out You can choose the audio out from this menu.
  • Page 24 CH 3 How to Use 4) Instant Replay This is very convenient function to catch the abrupt accident. During live viewing, you can go directly to the playback screen. If you choose the ‘Instant Replay’ it immediately switches to search mode and playback the video.
  • Page 25 CH 3 How to Use 6) Backup There are two ways to enter the backup. The first one is that right click on the live screen, and the second one is that enter directly from ‘Search’ upon playback. If you choose the ‘backup’...
  • Page 26 CH 3 How to Use • After that, if you push the ‘Estimation’ button, it will show the estimated backup file size. • Then click the ‘Start’ button. WARNING Do NOT remove the backup device till end sign. The device and system may be damaged.
  • Page 27 CH 3 How to Use 8) Freeze You can freeze the current live video channels. 9) PTZ (Pan, Tilt and Zoom) It is possible to control the pan and tilt camera by itself. Press the ‘PTZ’ button to enter the PTZ mode. For Menu setting, you can set it by pressing button as displayed at bottom of window.
  • Page 28 CH 3 How to Use • : You can enter the preset number using the keypad appearing the preset button or ‘Enter’ button on the remote controller. Run[SEL] Move to preset number Set[Play] Set a position and name of a preset number Clear[Stop/Backup] Clear a preset set Exit...
  • Page 29 CH 3 How to Use • : You can choose the PTZ camera with mouse or [0] buttons on the remote controller • : If you press Setup using mouse (or [9] button on the remote controller) in PTZ Menu, PTZ setup window will appear.
  • Page 30 CH 3 How to Use 10) Zoom Digital zoom of live screen for selected channel. It can be 8x zoom and also control the position by mouse dragging. • : You can choose the camera for zoom with mouse or [0] buttons on the remote controller.
  • Page 31 CH 3 How to Use 11) Sequence Sequence Mode On /Off: Switches screens as set on Dwell time under Screen Setup 12) OSD This feature shows current settings of product through GUI (Graphic User Interface) and INFO button at front side is used for this feature. When you CH 1 (x2) turn on power, this will show current date and time, System Lock Setting, HDD usage, Video Loss Check, Sensor ON/OFF, Motion Detection Check, Recording Status...
  • Page 32 CH 3 How to Use 14) Lock/Log In Logs off current user and locks DVR from any further configuration and screen setup until next Administrator logs in. 15) Alarm Control You can control all alarms connected and the DVR system buzzer. CH 1 (x2)

  • Page 33: Search Mode

    CH 3 How to Use 3-3. Search Mode Search mode consists of two different modes of searching. The video data can be selected by 3 modes. Time Search by Month / Day / Time selection. Panorama Play the specific channel continuously. Thumbnail Play the specific channel by user defined interval.
  • Page 34 CH 3 How to Use Change pages in time mode: The page can be changed in two ways as follows. (Page Mode) (Channel mode) In the Page mode, it operates in the same way as the split of a live view. The Channel mode is changed to 1 division of the corresponding channel when clicked.

  • Page 35: Search Selection Type

    CH 3 How to Use 3-3-1. Search Selection Type 1) Time Based search selection • Select the Date you wish to view by selecting a Date from Calendar. • Select time you wish to view by selecting a time from Time Line. •...
  • Page 36 CH 3 How to Use 2) Panorama Search • Select search date from calendar • Choose the channel and interval, then select the time from bar or typing • The selected channel will be played individually by interval time difference 3) Thumbnail Search •...
  • Page 37 CH 3 How to Use 4) Search Related buttons • You may click on Refresh, Option, Backup, Import, Exit , Full Screen, Hide for additional features and options. Reload all data list. Backup recorded data to external USB device. Playback recorded data from external USB device. Hide bottom of Playback Toolbar Load playback data to full screen mode.

  • Page 38: Play Mode

    CH 3 How to Use 3-3-2. Play Mode If you choose ‘Full Screen’, the full screen appear. You can control the play speed in here. ▶ Play Screen GUI 1. Split Screen 2. Sequence 3. Audio 4. Event list 5. FB (Fast Backward): FB×1, 2, 4, 8, 16, 32, 64 times faster 6.

  • Page 39: Setup Mode

    CH 3 How to Use 3-4. SETUP Mode Access Setup menu from Right Clicking mouse button to Popup Menu. Configure Display, Record, Device, Alarm, Network, System which is navigated by clicking on corresponding tab menu at the top of the screen. Apply Apply changes Default...
  • Page 40 CH 3 How to Use 2) Monitor Resolution 1280x720, 1920x1080, 2560x1440 Overscan Cut off a bit of each edge of the screen Display Mode Restore Restore Live display after rebooting Sequence dwell time 1 sec ~ 60 sec Skip a video loss channel when you set the Skip Video Loss sequence of the live screen.
  • Page 41 CH 3 How to Use 3) SPOT • Set the SPOT output . CVBS Choose NTSC or PAL Mode 1, 4, 9, 16 Screen Sequence dwell time 1 ~ 60 sec Skip Video Loss Skip a video loss channel for the sequence of the Spot. Switching You can program the sequence time.

  • Page 42: Record

    CH 3 How to Use 3-4-2. Record Configure and view Event In, Record, Group, Holiday settings 1) Codec Codec and Resolution Set codec and resolution. Framerate Set Frame per seconds. Quality Set Quality.  ALL Apply Apply the setting to whole channel. Automatically sets the best bitrate according to the Bitrate Auto camera resolution and fps.
  • Page 43 CH 3 How to Use 2) Record Rec type None, Conti, Event, C/E  Duration 5 ~ 60 sec  Event  PreAlarm 0 ~ 10 sec  ALL Apply Apply the setting to whole channel. Main Stream The resolution of the main stream. Sub Stream The resolution of the sub stream.
  • Page 44 CH 3 How to Use  Event recording has priority in recording. In C/E recording, the recording will follow continuous recording setup in normal condition while it would follow event recording setup in event generation.  For convenience, you can use the ‘Apply All’ menu to change with the same preference.
  • Page 45 CH 3 How to Use 4) Schedule • In recording, Schedule recording setting is most preferred. So if you activate the weekly scheduler, you cannot record manually. • Schedule On : The weekly scheduler is activated. • Holiday On : The holiday that set by user is activated. •...
  • Page 46 CH 3 How to Use 5) Holiday With this menu, you can add the holidays. Use the ‘Add’ button for adding the holiday and use the ‘Delete’ or ‘Delete All’ buttons for removing the existing holidays.
  • Page 47 CH 3 How to Use 6) Sensor Event • With this menu, you can set sensor input setup. You can also set each channel individually. • Although you set Motion Detection and Sensor Setting to On in Event menu, if Event Input in Rec Menu is set to None, it only detects and does not record.
  • Page 48 CH 3 How to Use 7) Motion Event • With this menu, you can set motion detection setup. You can also set each channel individually. • Although you set Motion Detection and Sensor Setting to On in Event menu, if Event Input in Rec Menu is set to None, it only detects and does not record.
  • Page 49 CH 3 How to Use 8) POS Event • With this menu, you can set POS setup. You can also set each channel individually. • Although you set Motion Detection and Sensor Setting to On in Event menu, if Event Input in Rec Menu is set to None, it only detects and does not record.

  • Page 50: Device

    CH 3 How to Use 3-4-3. Device • Configure and view Camera, Audio, Motion Detection, Alarm Out, PTZ, Controller. 1) Camera Signal Type Auto, TVI, AHD, CVI IP Camera, DVR/NVR Disable Disable a camera. It is useful when the signal is bad. Camera Title You can set the camera name.
  • Page 51 CH 3 How to Use  For convenience, you can use the ‘Scan’ function to connect all your IP cameras on your network or DVR. Include DVR / NVR Whether to add a DVR / NVR camera Previous Go to previous page Next Go to next page Auto Assign...
  • Page 52 CH 3 How to Use 2) Color Brightness Adjust Brightness Contrast Adjust Contrast Saturation Adjust Saturation Adjust Hue Sharpness Adjust Sharpness Default Change to default settings  ALL Apply Apply the setting to whole channel.
  • Page 53 CH 3 How to Use 3) Motion Detection • Change settings for Motion Grid selection and Sensitivity Level. You can set multiple area. Sensitivity Low, Mid, High All On This will activate the motion detection of the all area. All Off This will deactivate the motion detection of the all area.
  • Page 54 CH 3 How to Use 3) Private Zone • If you want to hide some part of the picture for privacy, you can choose the area by dragging the mouse. The selected area will be changed to black screen. All Off All off the private zone Apply All Apply the setting to whole channel...
  • Page 55 CH 3 How to Use 5) Audio Camera Assign audio input to a video channel. Select which channel will be heard during Live View with Audio Out 1 HDMI. Audio Out 2 Select which channel will be heard during Live View.
  • Page 56 CH 3 How to Use 6) Sensor Selectable option is N.O. (Normally Open) / N.C. (Normally Close)  For more details, refer to [CH 2. Installation Method and Cautions].(p.17)
  • Page 57 CH 3 How to Use 7) PTZ Configure Pan/Tilt/Zoom camera for control via DVR System and Remote client. Driver Choose Driver to be suitable for PAN/TILT Camera manufacturer. Address Choose address to be suitable for PAN/TILT Camera manufacturer. Baudrate Choose baudrate to be suitable for PAN/TILT Camera manufacturer. •...
  • Page 58 CH 3 How to Use 8) POS This sets the POS interface(text inserter) with the DVR and cash register. ※ If you are using a USB hub, you can use up to 4 USB POS. Channel Select a Channel of POS Select a baudrate of POS Baudrate Batabit...
  • Page 59 CH 3 How to Use  How to Connect POS 1. Connect USB to RS232 serial cable between POS and DVR. *POS *DVR 2. To set manually, at first you should know the setting values of the POS. You can get the information from the POS setting screen.
  • Page 60 CH 3 How to Use 9) Controller This sets the ID of remote control. If you have many DVRs in the same place, you can control separately the DVR by different remote control ID.  Remote controller ID setup Use the ID setup and number key to set the ID of remote control on the remote controller.

  • Page 61: Alarm

    CH 3 How to Use 3-4-4. Alarm 4-1) Sensor In • You can choose the action after sensor in between relay, buzzer sound and pop up. Also you can choose more than one action. • Choose a sensor connected to a channel. •...
  • Page 62 CH 3 How to Use • Also you can choose more than one action. Furthermore you can set the preset position number by motion detection. If you click the ‘setup’ icon you can see the preset screen. • You can assign the preset position individually by specific motion.
  • Page 63 CH 3 How to Use 4-2) Motion Detection • You can choose the action after motion detection between relay, buzzer sound and pop up.
  • Page 64 CH 3 How to Use • Also you can choose more than one action. Furthermore you can set the preset position number by motion detection. If you click the ‘setup’ icon you can see the preset screen. • You can assign the preset position individually by specific motion.
  • Page 65 CH 3 How to Use 4-3) Motion Detection + Sensor In • You can choose the action after motion and sensor detection between relay, buzzer sound and pop up.
  • Page 66 CH 3 How to Use • Also you can choose more than one action. Furthermore you can set the preset position number by motion detection. If you click the ‘setup’ icon you can see the preset screen. • You can assign the preset position individually by specific motion.
  • Page 67 CH 3 How to Use 4-4) Video Loss • You can choose the action after video loss between relay, buzzer sound, and pop up. • Also you can choose more than one action.
  • Page 68 CH 3 How to Use 4-5) POS • You can choose the action after POS transaction or video loss between relay, buzzer sound and pop up. • Also you can choose more than one action.
  • Page 69 CH 3 How to Use 4-6) Snapshot • Set up snapshot according to the set email settings...
  • Page 70 CH 3 How to Use 4-7) HDD • Set an alarm or buzzer when S.M.A.R.T error occurs in the HDD...
  • Page 71 CH 3 How to Use 4-8) Alarm • You can choose the duration time from 5 to 60 seconds after motion detection between relay, buzzer sound, pop up and preset. • You can set a name of the alarms.  Email Set events to send the email.

  • Page 72: Network

    CH 3 How to Use 3-4-5. NETWORK Configure and view Address, Port, DDNS, E-mail, Control and Status settings. 1) Address Configure Network information for Remote client connection. DVR Name Type the URL of DVR using virtual keyboard. Type It can be supported only Ethernet. Set whether you want to use DHCP or not (On/Off).
  • Page 73 CH 3 How to Use 2) Port There are 4 kinds of ports for the case such as watch, search, setup and web. You can individually set the port number of the NVR. The default is 8000. You can choose from 8000 to 9999.
  • Page 74 CH 3 How to Use 3) DDNS This is the function to automatically change the IP of NVR to URL. This product supports the automatic DDNS service using manufacture’s internal server. Also you can choose Dyndns.2 DDNS Type Choose a DDNS type. DDNS Server Defend on the DDNS type, it will be auto-typed or disable.
  • Page 75 CH 3 How to Use 4) Magic IP P2P service, which enables network access simply by using a smartphone to scan the supplied product QR code.  Magic IP setup 1. Check Magic IP. 2. Make your own ID for Magic IP. 3.
  • Page 76 CH 3 How to Use 5) E-mail You can send a notification of events by email. Fill all the information correctly and push the ‘Email Test’. Also you can select each event individually by ‘Event Set’. Recipient Type an email address of the recipient. Sender Type a name of the sender.

  • Page 77: System

    CH 3 How to Use 3-4-6. SYSTEM Configure and view system Date/Time, User Authority, Storage, System Log and Configuration settings 1) Date/Time Choose the time zone of your site. If you using the NTP Timezone function, it must be set correctly to your zone. Daylight Saving Time It enables to adapt the day light saving time automatically.
  • Page 78 CH 3 How to Use 2) Account This sets User authority individually. You can give to each users the authorities such as setup, search, backup, PTZ, network and camera control. Type an ID. Change Password Type a password. Setup Authorizes the setting of the system. Search Authorizing the search of the system.
  • Page 79 CH 3 How to Use 3) HDD Display the information and usage of the hard disk drives. Display the HDD usage being used for the product. If you press the Total ‘Enter’ button on here, all the hard disk drives will be formatted. HDD Check Check the HDD.
  • Page 80 CH 3 How to Use 4) S.M.A.R.T :Self-Monitoring Analysis and Reporting Technology This function lets you probe the hard disk drives and investigate the status of the drivers automatically. S.M.A.R.T. S.M.A.R.T. On Set whether you want to use S.M.A.R.T. or not (On/Off). Check Day Determine the date to perform the S.M.A.R.T.
  • Page 81 CH 3 How to Use 5) System Log You may view all System administration log from Setup  System  System Log. Also you can export the system log and easily send it to technical support for trouble shooting. Refresh Refresh the system log.
  • Page 82 CH 3 How to Use 6) Auto Reboot Set schedule for auto reboot. Auto Reboot On / Off Period Set auto reboot period Day Of Week Set the day Time Set the time...

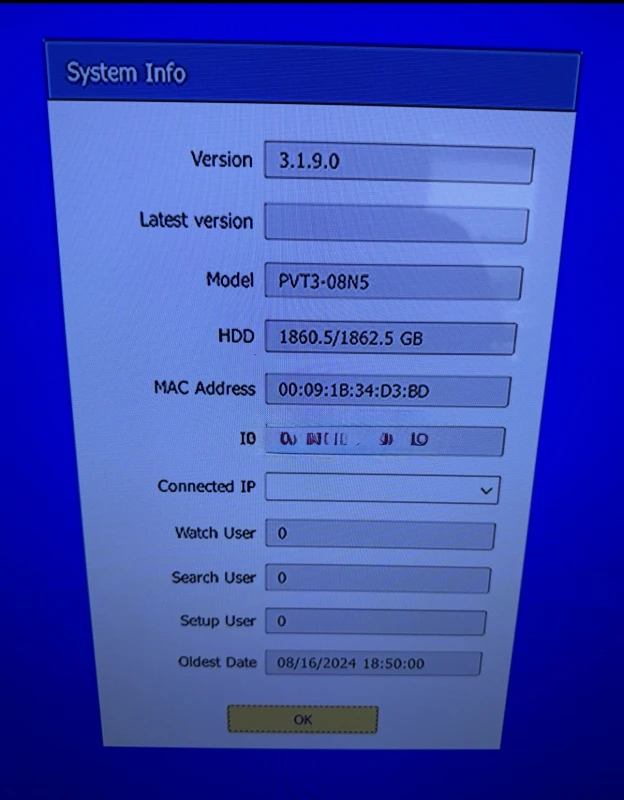

  • Page 83 CH 3 How to Use 7) Configuration Shown at the following screen, from Setup  System  Firmware, you may view the current firmware version as well as Upgrade the firmware and additionally, Export, Import, and Default NVR Configuration. Firmware version Show the firmware version of the device.

  • Page 84: Firmware Upgrade

    CH 3 How to Use 3-5. Firmware Upgrade If you want to upgrade, please follow that; 1. Download the latest firmware to USB memory root directory. 2. Put this memory to USB slot of NVR. 3. Choose ‘Upgrade’ and you can see the below screen will appear. 4.
  • Page 85 CH 3 How to Use If you choose OK, you can see the below download window on the NVR screen. ☞ WARNING!!! Do not turn off the power during download procedure. If you power off manually, all memory will be deleted ! ※...
  • Page 86 Trouble Shooting Trouble Shooting Symptom Checkpoint Countermeasure ● Is NVR connected to power ● Can't turn on power. ● Connect power cable supply cable? ● There is no image on monitor ● Are NVR and monitor turned ● Turn on power. ●...
